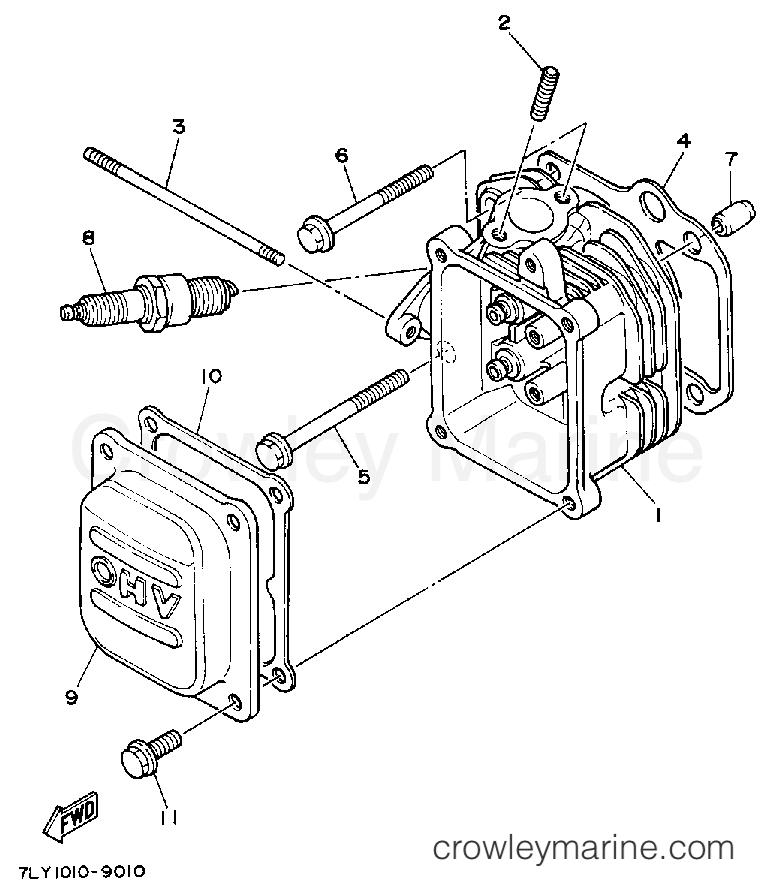

1990 Generator 240 - YS240TB CYLINDER HEAD diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YS240TB - CYLINDER HEAD
Change View:
Cylinder Head
1
Yamaha Motors
Cylinder Head 7LY-11111-00-00
Required: 1
HEAD, CYLINDER 1
Cross Ship
Leaves in 2-5 days
$156.99
$133.44
You save $23.55
More details
Stud Bolt
2
Yamaha Motors
Stud Bolt95617-06615-00
Required: 2
BOLT, STUD
Supersedes: 95602-06615-00
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Stud Bolt
3
Yamaha Motors
Stud Bolt90116-06807-00
Required: 2
BOLT, STUD
Supersedes: 90116-06493-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Obsolete Yamaha Part
4
Yamaha Motors
Obsolete Yamaha PartJA9-11181-01-00
Required: 1
GASKET, CYLINDER HEAD 1
Supersedes: JA9-11181-00-00
Cross Ship
Leaves in 2-5 days
$10.99
$9.34
You save $1.65
More details
Flange Bolt
5
Yamaha Motors
Flange Bolt95814-08065-00
Required: 3
BOLT, FLANGE
Supersedes: 95811-08065-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
Flange Bolt
6
Yamaha Motors
Flange Bolt95814-08045-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-08045-00
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
Cylinder Head Cover
9
Yamaha Motors
Cylinder Head CoverJA9-11191-00-00
Required: 1
COVER, CYLINDER.HEAD 1
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
Cylinder Gasket
10
Yamaha Motors
Cylinder GasketJA9-11351-00-00
Required: 1
GASKET, CYLINDER
Cross Ship
Leaves in 2-5 days
$6.99
$5.94
You save $1.05
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
