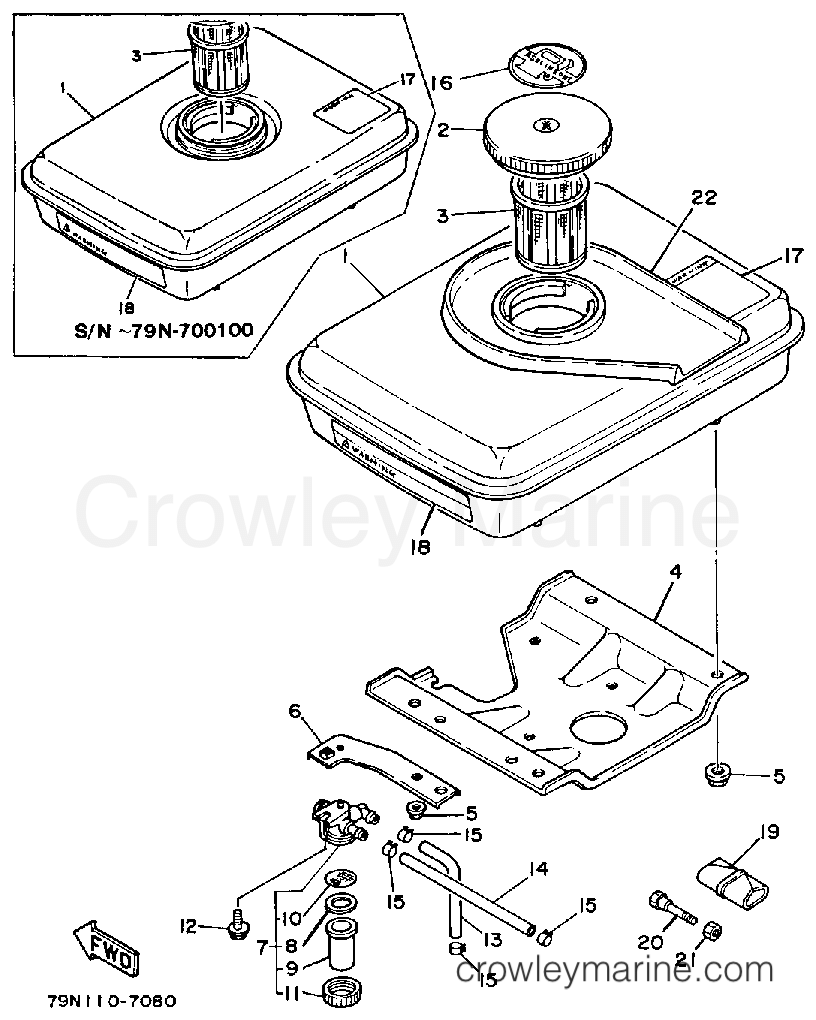

1987 Generator 624 - YS624T FUEL TANK diagram

1
Yamaha Motors
Fuel Tank Assembly99999-01721-KT
Required: 1
FUEL TANK ASSEMBLY, 7Y6
$103.26
You save $18.22
$45.04
You save $7.95
$9.27
You save $1.64

4
Yamaha Motors
Fuel Tank 1 Stay76H-24115-01-00
Required: 1
STAY, FUEL TANK 1
$17.84
You save $3.15

5
Yamaha Motors
Flange Nut95704-08500-00
Required: 5
NUT, FLANGE (95702-08500-00)
Supersedes: 95701-08500-00
In stock
Only 5 remaining
$8.07
You save $1.42

5
Yamaha Motors
Flange Nut95704-08500-00
Required: 5
NUT, FLANGE (95702-08500-00)
Supersedes: 95701-08500-00
In stock
Only 5 remaining
$8.07
You save $1.42

6
Yamaha Motors
Fuel Cock Bracket 7Y6-24544-01-00
Required: 1
BRACKET, FUEL COCK
$11.89
You save $2.10

7
Yamaha Motors
Fuel Cock Assembly7KA-24500-00-00
Required: 1
FUEL COCK ASSEMBLY 1
$56.94
You save $10.05
$2.63
You save $0.47

9
Yamaha Motors
Filter Cup7KA-24521-00-00
Required: 1
.CUP, FILTER
Supersedes: 7Y6-24521-01-00
$14.87
You save $2.62

10
Yamaha Motors
Filter Net7Y6-24515-00-00
Required: 1
.NET, FILTER 2
$3.23
You save $0.57
$8.07
You save $1.42
12
Yamaha Motors
Flange Bolt95812-06012-00
Required: 1
BOLT, FLANGE
Supersedes: 95811-06012-00
$0.98
You save $0.17
No longer availableSearch Nationwide Inventory
Price unavailable

14
Yamaha Motors
Obsolete Yamaha Part4KN-24311-01-00
Required: 1
PIPE, FUEL 1
Supersedes: 7Y6-24311-01-00
$13.64
You save $2.41
$1.96
You save $0.35
$5.94
You save $1.05
$8.92
You save $1.57
$8.92
You save $1.57
No longer availableSearch Nationwide Inventory
Price unavailable

18
Yamaha Motors
Startlev Indicator79N-24156-21-00
Required: 1
INDICATOR STARTLEV
$8.49
You save $1.50
$39.09
You save $6.90
$16.14
You save $2.85

21
Yamaha Motors
Self-Locking Nut90185-06122-00
Required: 2
NUT, SELF-LOCKING
In stock
Only 3 remaining
$8.92
You save $1.57
$19.54
You save $3.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
