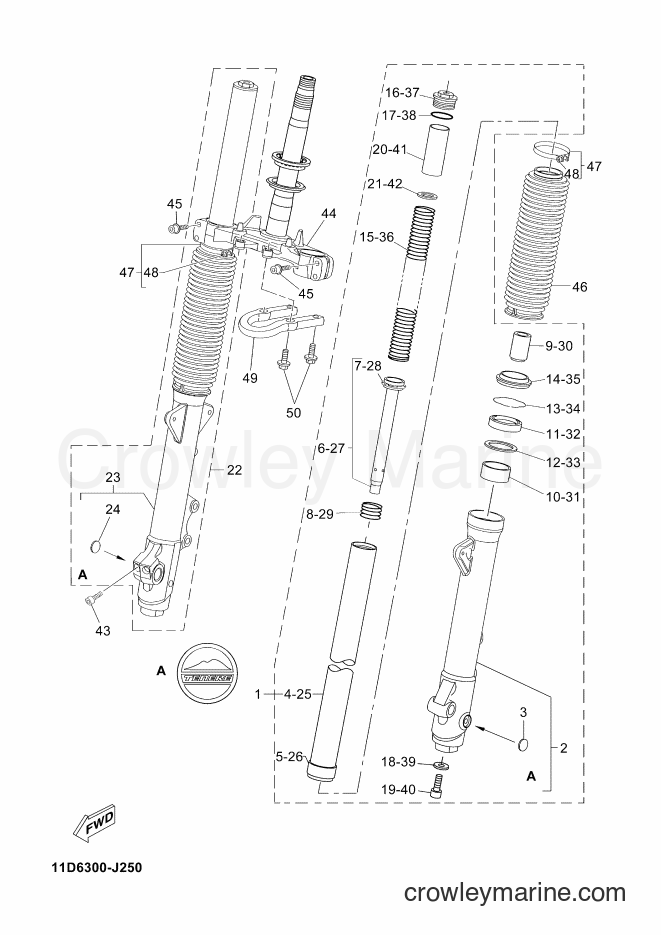

2013 Dirt Bike XT660Z - XT660Z (2BD3) [020] FRONT FORK 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XT660Z (2BD3) [020] - FRONT FORK 2
Change View:
1
Required: 1
FRONT FORK ASSY (L.H)
Price unavailable
2
Required: 1
. TUBE, OUTER (L.H)
Price unavailable
3
Required: 1
. . EMBLEM
Price unavailable
4
Required: 1
. INNER TUBE COMP.1
Price unavailable
Front Fork Piston
5
Yamaha Motors
Front Fork Piston5EB-23171-00-00
Required: 1
. METAL, SLIDE 2
Supersedes: 3XJ-23171-L0-00
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
6
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
7
Required: 1
. . RING, PISTON
Price unavailable
8
Required: 1
. SPRING, REBOUND
Price unavailable
9
Required: 1
. SPINDLE, TAPER
Price unavailable
Slide Metal
10
Yamaha Motors
Slide Metal5EB-23125-00-00
Required: 1
. METAL, SLIDE 1
Supersedes: 3XJ-23125-L0-00
Cross Ship
Leaves in 2-5 days
$35.99
$30.59
You save $5.40
More details
Fork Seal
11
Yamaha Motors
Fork Seal3XJ-23145-L0-00
Required: 1
. OIL SEAL
Supersedes: 4DA-23145-L0-00
Cross Ship
Leaves in 2-5 days
$35.99
$30.59
You save $5.40
More details
12
Required: 1
. WASHER, OIL SEAL
Price unavailable
13
Required: 1
. RING, SNAP
Price unavailable
Dust Seal
14
Yamaha Motors
Dust Seal4PU-23144-00-00
Required: 1
. SEAL, DUST
Supersedes: 4DA-23144-L0-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
15
Required: 1
. SPRING, FRONT FORK
Price unavailable
16
Required: 1
. BOLT, CAP
Price unavailable
O-RING
17
Yamaha Motors
O-RING4V4-23188-L1-00
Required: 1
. O-RING
Supersedes: 4V4-23188-L0-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
18
Required: 1
. GASKET
Price unavailable
19
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
20
Required: 1
. SPACER
Price unavailable
21
Required: 1
. WASHER, SPRING UPPER
Price unavailable
22
Required: 1
FRONT FORK ASSY (R.H)
Price unavailable
23
Required: 1
. TUBE, OUTER (R.H)
Price unavailable
24
Required: 1
. . EMBLEM
Price unavailable
25
Required: 1
. INNER TUBE COMP.1
Price unavailable
Front Fork Piston
26
Yamaha Motors
Front Fork Piston5EB-23171-00-00
Required: 1
. METAL, SLIDE 2
Supersedes: 3XJ-23171-L0-00
Cross Ship
Leaves in 2-5 days
$37.99
$32.29
You save $5.70
More details
27
Required: 1
. CYLINDER COMP., FRONT FORK
Price unavailable
28
Required: 1
. . RING, PISTON
Price unavailable
29
Required: 1
. SPRING, REBOUND
Price unavailable
30
Required: 1
. SPINDLE, TAPER
Price unavailable
Slide Metal
31
Yamaha Motors
Slide Metal5EB-23125-00-00
Required: 1
. METAL, SLIDE 1
Supersedes: 3XJ-23125-L0-00
Cross Ship
Leaves in 2-5 days
$35.99
$30.59
You save $5.40
More details
Fork Seal
32
Yamaha Motors
Fork Seal3XJ-23145-L0-00
Required: 1
. OIL SEAL
Supersedes: 4DA-23145-L0-00
Cross Ship
Leaves in 2-5 days
$35.99
$30.59
You save $5.40
More details
33
Required: 1
. WASHER, OIL SEAL
Price unavailable
34
Required: 1
. RING, SNAP
Price unavailable
Dust Seal
35
Yamaha Motors
Dust Seal4PU-23144-00-00
Required: 1
. SEAL, DUST
Supersedes: 4DA-23144-L0-00
Cross Ship
Leaves in 2-5 days
$26.99
$22.94
You save $4.05
More details
36
Required: 1
. SPRING, FRONT FORK
Price unavailable
37
Required: 1
. BOLT, CAP
Price unavailable
O-RING
38
Yamaha Motors
O-RING4V4-23188-L1-00
Required: 1
. O-RING
Supersedes: 4V4-23188-L0-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
39
Required: 1
. GASKET
Price unavailable
40
Required: 1
. BOLT, HEXAGON SOCKET HEAD
Price unavailable
41
Required: 1
. SPACER
Price unavailable
42
Required: 1
. WASHER, SPRING UPPER
Price unavailable
43
Required: 2
. BOLT, AXLE HOLDER
Price unavailable
44
Required: 1
UNDER BRACKET COMP.
Price unavailable
45
Required: 4
BOLT, SPECIAL
Price unavailable
46
Required: 2
BOOT
Price unavailable
47
Required: 2
BAND
Price unavailable
49
Required: 1
HANDLE, STANDING
Price unavailable
Flange Bolt
50
Yamaha Motors
Flange Bolt95812-06030-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details
Flange Bolt
50
Yamaha Motors
Flange Bolt95812-06025-00
Required: 4
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$0.75
$0.64
You save $0.11
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
