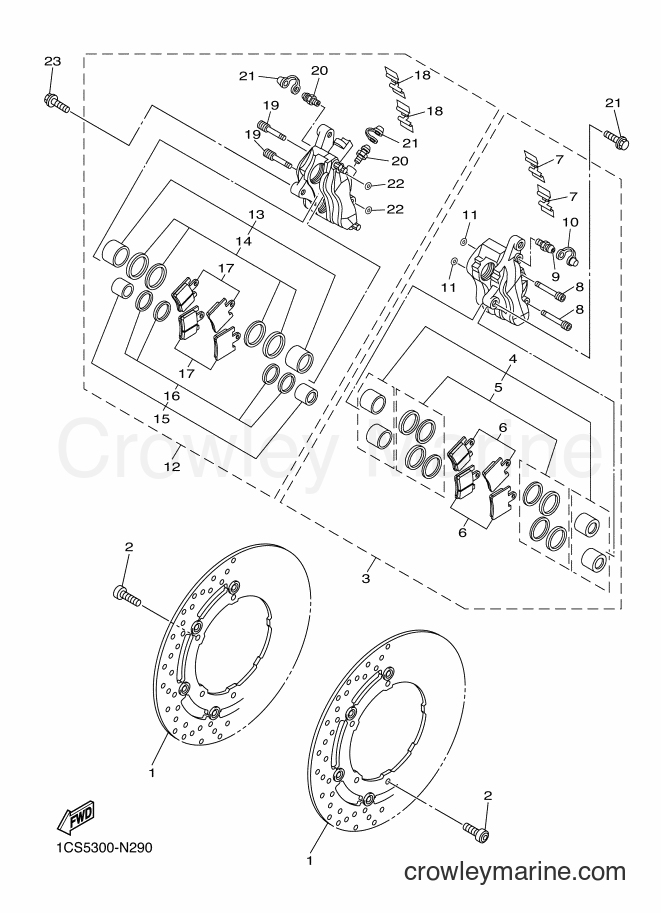

2016 Cruiser XVS1300A - XVS1300A (1CS8) [040] FRONT BRAKE CALIPER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XVS1300A (1CS8) [040] - FRONT BRAKE CALIPER
Change View:
DISK BRAKE ASSEMBLY
1
Yamaha Motors
DISK BRAKE ASSEMBLY3D8-2581T-10-00
Required: 2
DISK BRAKE ASSY
Cross Ship
Leaves in 2-5 days
$271.99
$231.19
You save $40.80
More details
BOLT,HEX. SOCKET BUT
2
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-08057-00
Required: 12
BOLT
Supersedes: 90109-083G4-00
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
3
Required: 1
CALIPER ASSY (LEFT)
Price unavailable
4
Required: 1
. PISTON ASSY, CALIPER
Price unavailable
5
Required: 1
. . CALIPER SEAL KIT
Price unavailable
6
Required: 2
. BRAKE PAD KIT
Price unavailable
PAD SUPPORT
7
Yamaha Motors
PAD SUPPORT3P6-25919-00-00
Required: 2
. SUPPORT, PAD
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
PAD PIN
8
Yamaha Motors
PAD PIN3P6-25924-00-00
Required: 2
. PIN, PAD
Cross Ship
Leaves in 2-5 days
$69.99
$59.49
You save $10.50
More details
BLEED SCREW
9
Yamaha Motors
BLEED SCREW8CR-25824-00-00
Required: 1
. SCREW, BLEED
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
Clip
11
Yamaha Motors
Clip3P6-25925-00-00
Required: 2
. STOPPER
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details
12
Required: 1
CALIPER ASSY (RIGHT)
Price unavailable
13
Required: 1
. PISTON ASSY, CALIPER
Price unavailable
14
Required: 1
. . CALIPER SEAL KIT
Price unavailable
15
Required: 1
. PISTON ASSY, CALIPER
Price unavailable
16
Required: 1
. . CALIPER SEAL KIT
Price unavailable
17
Required: 2
. BRAKE PAD KIT
Price unavailable
PAD SUPPORT
18
Yamaha Motors
PAD SUPPORT3P6-25919-00-00
Required: 2
. SUPPORT, PAD
Cross Ship
Leaves in 2-5 days
$64.99
$55.24
You save $9.75
More details
PAD PIN
19
Yamaha Motors
PAD PIN3P6-25924-00-00
Required: 2
. PIN, PAD
Cross Ship
Leaves in 2-5 days
$69.99
$59.49
You save $10.50
More details
BLEED SCREW
20
Yamaha Motors
BLEED SCREW8CR-25824-00-00
Required: 2
. SCREW, BLEED
Cross Ship
Leaves in 2-5 days
$12.99
$11.04
You save $1.95
More details
Clip
22
Yamaha Motors
Clip3P6-25925-00-00
Required: 2
. STOPPER
Cross Ship
Leaves in 2-5 days
$17.99
$15.29
You save $2.70
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
