2016 Cruiser VMX17 - VMX17 (2CEL) [050] HEADLIGHT diagram
1
Required: 1
HEADLIGHT ASSY
Price unavailable

2
Yamaha Motors
PILOT LIGHT SOCKET5JW-84346-00-00
Required: 1
. SOCKET, PILOT LIGHT
$14.02
You save $2.47

3
Yamaha Motors
BULB (12V-5W)4SV-84347-00-00
Required: 1
. BULB (12V-5W)
Supersedes: 5DM-84347-00-00
$8.07
You save $1.42

4
Yamaha Motors
SOCKET COVER5JW-84397-00-00
Required: 1
. COVER, SOCKET
$28.04
You save $4.95

5
Yamaha Motors
Headlight Bulb8V0-84314-10-00
Required: 1
. BULB (12V 60/55W HALOGEN)
Supersedes: 4K0-84314-G0-00
In stock
Only 1 remaining
$64.59
You save $11.40
$3.53
You save $0.62
$1.69
You save $0.30

8
Yamaha Motors
PAN HEAD TAP SCREW97780-50116-00
Required: 1
SCREW, TAPPING
Supersedes: 97702-50516-00
$1.27
You save $0.22
$7.22
You save $1.27

10
Yamaha Motors
UPPER COVER2S3-23121-00-00
Required: 1
COVER, UPPER 1
$142.79
You save $25.20

11
Yamaha Motors
UPPER COVER 22S3-23131-00-00
Required: 1
COVER, UPPER 2
$142.79
You save $25.20

12
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-06106-00
Required: 2
BOLT,HEX. SOCKET BUTTON
$5.52
You save $0.97

13
Yamaha Motors
Plate Washer90201-06049-00
Required: 2
WASHER, PLATE
Supersedes: 90201-065F1-00
In stock
Only 2 remaining
$3.10
You save $0.55
In stock
Only 1 remaining
$5.52
You save $0.97

15
Yamaha Motors
Headlight Stay2S3-23174-00-00
Required: 1
STAY, HEADLIGHT
$181.89
You save $32.10
$3.06
You save $0.54
$11.47
You save $2.02
$14.87
You save $2.62

19
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-06107-00
Required: 2
BOLT,HEX. SOCKET BUTTON
$3.44
You save $0.61

20
Yamaha Motors
Plate Washer90201-06049-00
Required: 2
WASHER, PLATE
Supersedes: 90201-065F1-00
In stock
Only 2 remaining
$3.10
You save $0.55
$163.19
You save $28.80
$3.06
You save $0.54
$7.22
You save $1.27
$7.22
You save $1.27

25
Yamaha Motors
DUST SEAL 1 COVER2S3-23383-00-00
Required: 2
COVER, DUST SEAL 1
$4.67
You save $0.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.



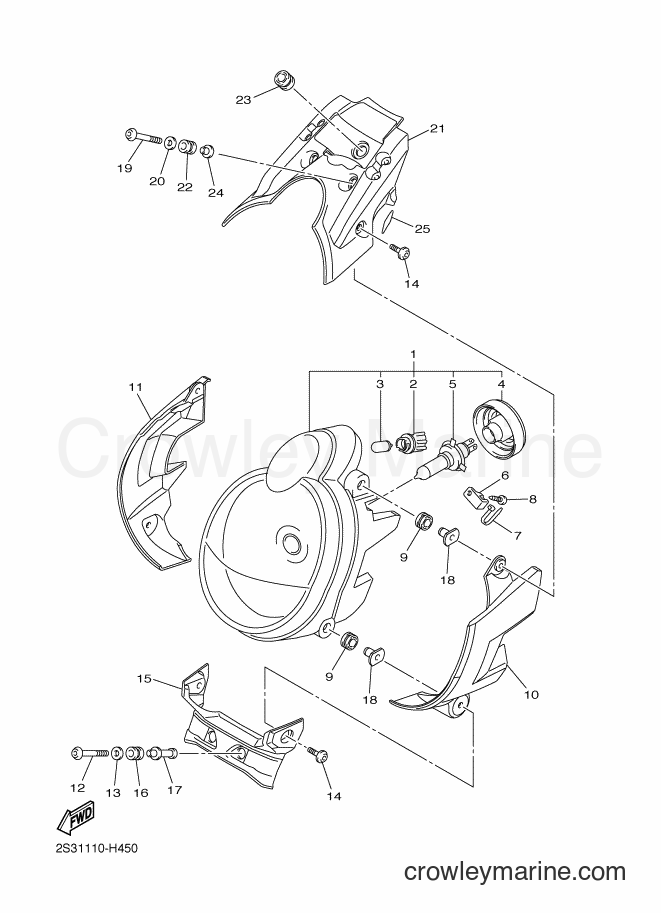

![Yamaha Motors VMX17 (2CEL) [050] - HEADLIGHT](https://cdn.crowleymarine.com/yamaha/yYF4RtCi.png)
