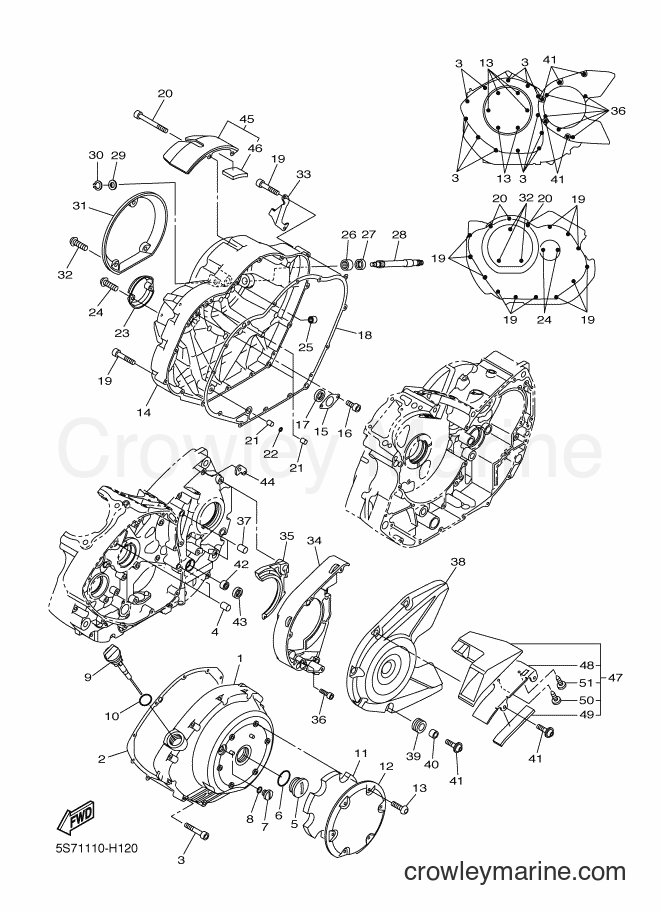

2012 Cruiser XVS950A - XVS950A (5S7C) [010] CRANKCASE COVER 1 diagram

1
Yamaha Motors
Crankcase Cover5S7-15411-00-00
Required: 1
COVER, CRANKCASE 1
$289.84
You save $51.15

2
Yamaha Motors
Crankcase Cover Gasket3D8-15451-00-00
Required: 1
GASKET, CRANKCASE COVER 1
$22.09
You save $3.90

3
Yamaha Motors
Socket Bolt91314-06040-00
Required: 12
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06086-00
$8.07
You save $1.42
In stock
Only 1 remaining
$5.61
You save $0.99

5
Yamaha Motors
Straight Screw Plug90340-36078-00
Required: 1
PLUG, STRAIGHT SCREW
$14.02
You save $2.47

6
Yamaha Motors
O-Ring93210-35804-00
Required: 1
O-RING
Supersedes: 93210-357A3-00
$0.51
You save $0.09

7
Yamaha Motors
Straight Screw Plug90340-14117-00
Required: 1
PLUG, STRAIGHT SCREW
$14.02
You save $2.47
$7.22
You save $1.27

9
Yamaha Motors
Oil Level Plug5S7-15362-10-00
Required: 1
PLUG, OIL LEVEL
$28.89
You save $5.10
10
Yamaha Motors
O-Ring93210-27778-00
Required: 1
O-RING
Supersedes: 93210-27370-00
$7.59
You save $1.90
$19.54
You save $3.45
$101.14
You save $17.85

13
Yamaha Motors
Button head bolt92014-06014-00
Required: 6
BOLT, BUTTON HEAD
$3.44
You save $0.61

14
Yamaha Motors
Crankcase Cover5S7-15421-00-00
Required: 1
COVER, CRANKCASE 2
$257.54
You save $45.45

15
Yamaha Motors
BEARING COVER PLATE3D8-15388-00-00
Required: 1
PLATE, BEARING COVER
$1.96
You save $0.35

16
Yamaha Motors
Bolt (4MY)91317-06012-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06182-00
$8.07
You save $1.42
$13.17
You save $2.32

18
Yamaha Motors
Crankcase Cover Gasket3D8-15461-00-00
Required: 1
GASKET, CRANKCASE COVER 2
$33.14
You save $5.85

19
Yamaha Motors
Socket Bolt91314-06040-00
Required: 12
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06086-00
$8.07
You save $1.42

20
Yamaha Motors
Socket Bolt91314-06065-00
Required: 3
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06334-00
$8.07
You save $1.42
In stock
Only 1 remaining
$5.61
You save $0.99
-50%
In stock
Only 2 remaining
$3.50
You save $3.50
$45.89
You save $8.10

24
Yamaha Motors
Button head bolt92014-06014-00
Required: 2
BOLT, BUTTON HEAD
$3.44
You save $0.61
$22.09
You save $3.90
$33.99
You save $6.00
-50%
$5.25
You save $5.25

28
Yamaha Motors
Push Lever Axle3D8-16382-00-00
Required: 1
AXLE, PUSH LEVER
$74.79
You save $13.20

29
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
WASHER, PLATE
Supersedes: 92902-08600-00
In stock
5+ in stock
$2.16
You save $0.54
$3.02
You save $0.53

31
Yamaha Motors
GENERATOR COVER5S7-15415-00-00
Required: 1
COVER, GENERATOR
$209.09
You save $36.90

32
Yamaha Motors
Button head bolt92014-06014-00
Required: 3
BOLT, BUTTON HEAD
$3.44
You save $0.61

33
Yamaha Motors
CLUTCH CABLE HOLDER3D8-15441-00-00
Required: 1
HOLDER, CLUTCH CABLE
$15.72
You save $2.77

34
Yamaha Motors
CRANKCASE COVER STAY3D8-1541A-01-00
Required: 1
STAY, CRANKCASE COVER 1
$173.39
You save $30.60
$14.02
You save $2.47

36
Yamaha Motors
BOLT91317-08035-00
Required: 5
BOLT
Supersedes: 91312-08035-00
$7.22
You save $1.27
$4.72
You save $0.83

38
Yamaha Motors
Oil Pump Cover5S7-15426-00-00
Required: 1
COVER, OIL PUMP 2
$88.39
You save $15.60
$7.22
You save $1.27
$8.07
You save $1.42

41
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-06130-00
Required: 5
BOLT,HEX. SOCKET BUTTON
$4.04
You save $0.71
$22.09
You save $3.90

43
Yamaha Motors
93102-12321-0093102-12106-00
Required: 1
OIL SEAL (SD 12-22-5 HS)
$10.62
You save $1.87
$3.95
You save $0.70

45
Yamaha Motors
COVER PROTECTOR5S7-15499-00-00
Required: 1
PROTECTOR, COVER
$102.84
You save $18.15
$4.17
You save $0.74

47
Yamaha Motors
Air Duct Assembly1TP-15470-00-00
Required: 1
AIR DUCT ASSY
Supersedes: 5S7-15470-00-00
$55.24
You save $9.75
$26.34
You save $4.65
$11.47
You save $2.02

50
Yamaha Motors
Tapping Screw97707-40014-00
Required: 2
. SCREW, TAPPING
Supersedes: 97702-40014-00
$7.22
You save $1.27

51
Yamaha Motors
Tapping Screw97702-40010-00
Required: 1
. SCREW, TAPPING
$3.95
You save $0.70
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
