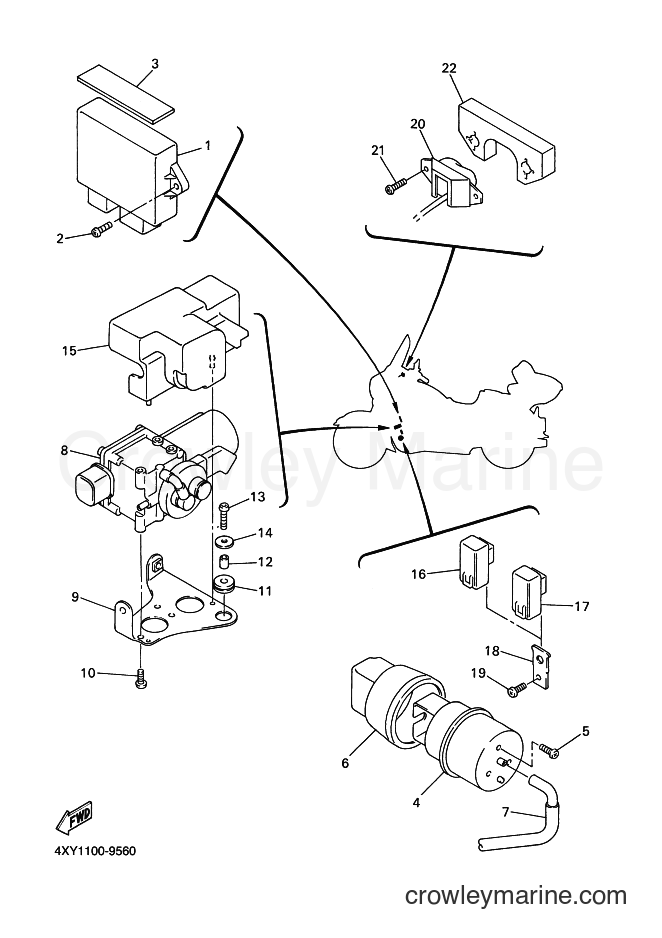

2000 Cruiser XVZ13TF - XVZ13TF (5JC2) [040] ELECTRICAL 3 diagram

1
Yamaha Motors
Control Unit Assembly4XY-85830-01-00
Required: 1
CONTROL UNIT ASSY
$361.24
You save $63.75

2
Yamaha Motors
Truss Screw97707-60016-00
Required: 2
SCREW, TAPPING
$1.57
You save $0.28
$3.10
You save $0.55

4
Yamaha Motors
Vacuum Actuator4XY-85860-00-00
Required: 1
VACUUM ACTUATOR
$163.12
You save $28.78
In stock
Only 4 remaining
$1.57
You save $0.28
$19.54
You save $3.45
$26.34
You save $4.65
$562.69
You save $99.30
$19.54
You save $3.45

10
Yamaha Motors
Truss Screw97707-50014-00
Required: 3
SCREW, TAPPING
$8.07
You save $1.42
11
Yamaha Motors
Grommet90480-12475-00
Required: 3
GROMMET
Supersedes: 90480-15235-00
$8.07
You save $1.42

12
Yamaha Motors
COLLAR90387-06113-00
Required: 3
COLLAR
Supersedes: 90387-064M9-00
$10.62
You save $1.87

13
Yamaha Motors
Button Bolt92017-06020-00
Required: 3
BOLT, BUTTON HEAD
$3.44
You save $0.61

14
Yamaha Motors
Plain Washer90201-06020-00
Required: 3
WASHER, PLATE
Supersedes: 90201-064H0-00
In stock
Only 1 remaining
$8.92
You save $1.57
$24.64
You save $4.35
$71.39
You save $12.60
$72.24
You save $12.75
$5.09
You save $0.90

19
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TAPPING
$8.07
You save $1.42

20
Yamaha Motors
AUTO CRUISE SWITCH4XY-8596A-00-00
Required: 1
AUTO CRUISE SWITCH ASSY
$52.69
You save $9.30

21
Yamaha Motors
Truss Screw97707-40012-00
Required: 2
SCREW, TAPPING
$8.07
You save $1.42
$4.00
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
