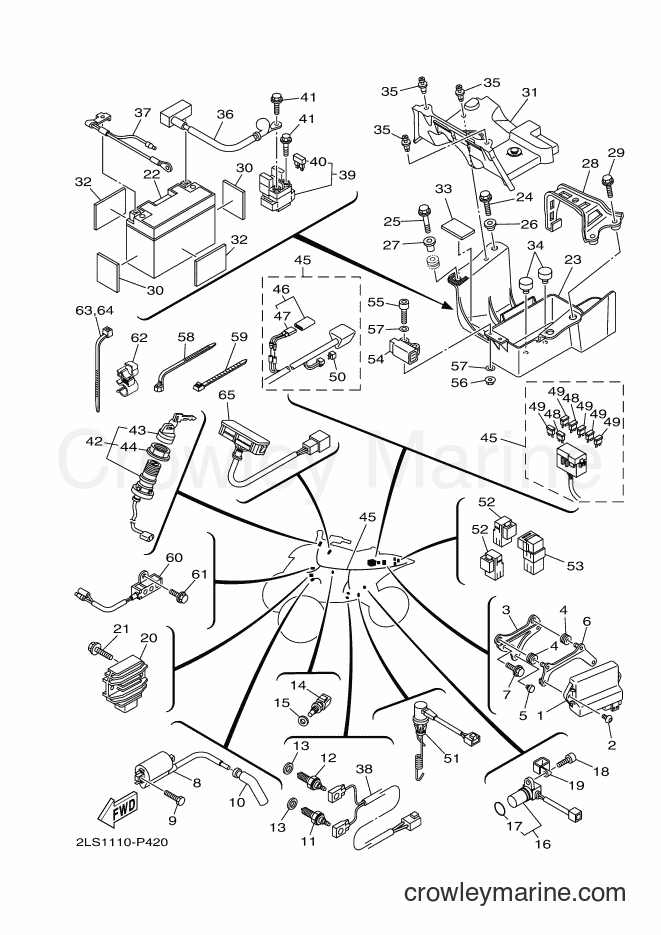

2019 ATV YFM700R - YFM700R (2LSV) [010] ELECTRICAL 1 diagram

1
Yamaha Motors
ENGINE CONTROL UNIT ASSEMBLY2LS-8591A-10-00
Required: 1
ENGINE CONTROL UNIT ASSY
$655.34
You save $115.65

2
Yamaha Motors
Button head bolt92012-06010-00
Required: 2
BOLT, BUTTON HEAD
$3.95
You save $0.70

3
Yamaha Motors
BRACKET, C.D.I. UN2LS-F1274-00-00
Required: 1
BRACKET, C.D.I. UNIT
$3.78
You save $0.67
$3.15
You save $0.56
$3.40
You save $0.60

6
Yamaha Motors
Control Unit Bracket2LS-2830X-00-00
Required: 1
BRKT., CONTROL UNIT
$14.02
You save $2.47
$1.57
You save $0.28

8
Yamaha Motors
4DN-82320-00-003TB-82310-00-00
Required: 1
IGNITION COIL ASSY
$128.34
You save $22.65
9
Required: 2
BOLT
Price unavailable
$58.64
You save $10.35
11
Yamaha Motors
REVERSE SWITCH ASSEMBLY5LP-82540-01-00
Required: 1
NEUTRAL SWITCH ASSY
$35.69
You save $6.30

12
Yamaha Motors
Neutral Switch Assembly3GB-82540-01-00
Required: 1
NEUTRAL SWITCH ASSY
$54.39
You save $9.60
$5.09
You save $0.90

14
Yamaha Motors
Thermosensor Assembly5YP-85790-00-00
Required: 1
THERMOSENSOR ASSY
$60.34
You save $10.65
$8.07
You save $1.42

16
Yamaha Motors
Speed Sensor1S3-83755-02-00
Required: 1
SENSOR, SPEED
Supersedes: 1S3-83755-01-00
$117.29
You save $20.70
In stock
Only 1 remaining
$6.37
You save $1.12

18
Yamaha Motors
BOLT91312-06016-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
In stock
Only 2 remaining
$5.52
You save $0.97
$7.22
You save $1.27

20
Yamaha Motors
Rectifier & Regulator Assembly5BN-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
$190.39
You save $33.60
$0.64
You save $0.11

22
Yamaha Motors
GT9B4 GS BATTERY -GT9-B4000-00-00
Required: 1
BATTERY ASSY (GS GT9B-4)
Supersedes: 1PE-H2100-00-00
$94.34
You save $16.65

23
Yamaha Motors
Battery Box1PE-H212B-00-00
Required: 1
BOX, BATTERY 1
$39.94
You save $7.05
$4.21
You save $0.74
25
Yamaha Motors
Flange Bolt95817-06030-00
Required: 1
BOLT, FLANGE
Supersedes: 95802-06030-00
$3.95
You save $0.70
$7.22
You save $1.27

27
Yamaha Motors
COLLAR90387-06158-00
Required: 1
COLLAR
Supersedes: 90387-063E6-00
$8.07
You save $1.42

28
Yamaha Motors
BATTERY BRACKET1PE-H2128-00-00
Required: 1
BRACKET, BATTERY
$24.64
You save $4.35

29
Yamaha Motors
Bolt95811-06020-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06020-00
$1.40
You save $0.25
$3.32
You save $0.58
31
Yamaha Motors
Battery Cover1PE-H2129-00-00
Required: 1
COVER, BATTERY
$28.89
You save $5.10

32
Yamaha Motors
Footrest Plate4HC-27415-00-00
Required: 2
PLATE, FOOTREST
$6.37
You save $1.12
$7.22
You save $1.27
$4.25
You save $0.75
$8.07
You save $1.42

36
Yamaha Motors
Plus Lead Wire1PE-H2115-00-00
Required: 1
WIRE, PLUS LEAD
$20.39
You save $3.60

37
Yamaha Motors
MINUS LEAD WIRE1PE-H2116-00-00
Required: 1
WIRE, MINUS LEAD
$20.39
You save $3.60
$26.34
You save $4.65
39
Yamaha Motors
Starter Relay Assembly5UG-81940-00-00
Required: 1
STARTER RELAY ASSY (2768112-A)
In stock
Only 1 remaining
$88.39
You save $15.60
40
Yamaha Motors
Fuse (30A-Bl)1AE-82151-00-00
Required: 2
. FUSE (30A-BL)
$7.22
You save $1.27
In stock
Only 2 remaining
$8.07
You save $1.42
42
Yamaha Motors
Main Switch Assembly TE, TP4SH-82510-01-00
Required: 1
MAIN SWITCH ASSY
Supersedes: 4SH-82510-00-00
$58.64
You save $10.35
$13.17
You save $2.32
44
Yamaha Motors
Main Switch Nut3HN-82569-00-00
Required: 1
. NUT, MAIN SWITCH
$5.09
You save $0.90

45
Yamaha Motors
Wire Harness Assembly2LS-82590-00-00
Required: 1
WIRE HARNESS ASSY
$637.49
You save $112.50
46
Yamaha Motors
Circuit Breaker Assembly3D5-82180-00-00
Required: 1
. CIRCUIT BREAKER ASSY
$22.94
You save $4.05

47
Yamaha Motors
Thermo Switch Assembly3D5-82560-00-00
Required: 1
. . THERMO SWITCH ASSY
$35.69
You save $6.30

48
Yamaha Motors
Fuse (20A-BL)5JJ-82151-20-00
Required: 2
. FUSE (20A-BL)
$7.22
You save $1.27

49
Yamaha Motors
Fuse (10A)67F-82151-40-00
Required: 5
. FUSE (10A-BL)
Supersedes: 5JJ-82151-30-00
$6.03
You save $1.07
$21.24
You save $3.75

51
Yamaha Motors
Stop Switch Assembly1S3-82530-10-00
Required: 1
STOP SWITCH ASSY
$39.94
You save $7.05

52
Yamaha Motors
Starter Relay1TP-81950-00-00
Required: 2
RELAY ASSY (1TP-00)
$14.02
You save $2.47
53
Yamaha Motors
Starter Relay5DM-81950-01-00
Required: 1
RELAY ASSY (G8HN-1C4T-DJ-Y52)
Supersedes: 5DM-81950-00-00
In stock
Only 2 remaining
$27.19
You save $4.80

54
Yamaha Motors
SENSOR, LEAN ANGLE5PS-82576-02-00
Required: 1
SENSOR, LEAN ANGLE
Supersedes: 5PS-82576-01-00
$82.44
You save $14.55

55
Yamaha Motors
BOLT91312-04025-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
$1.66
You save $0.29

56
Yamaha Motors
Flange Nut95701-04500-00
Required: 2
NUT, FLANGE
Supersedes: 95702-04500-00
$0.94
You save $0.17

57
Yamaha Motors
Plain Washer90201-04030-00
Required: 4
WASHER, PLATE
$2.04
You save $0.36
In stock
Only 1 remaining
$4.67
You save $0.82
In stock
Only 2 remaining
$7.22
You save $1.27
$90.09
You save $15.90
$2.72
You save $0.48
$4.68
You save $0.83
In stock
Only 2 remaining
$7.22
You save $1.27
$2.59
You save $0.46
65
Required: 1
PILOT LIGHT ASSY
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
