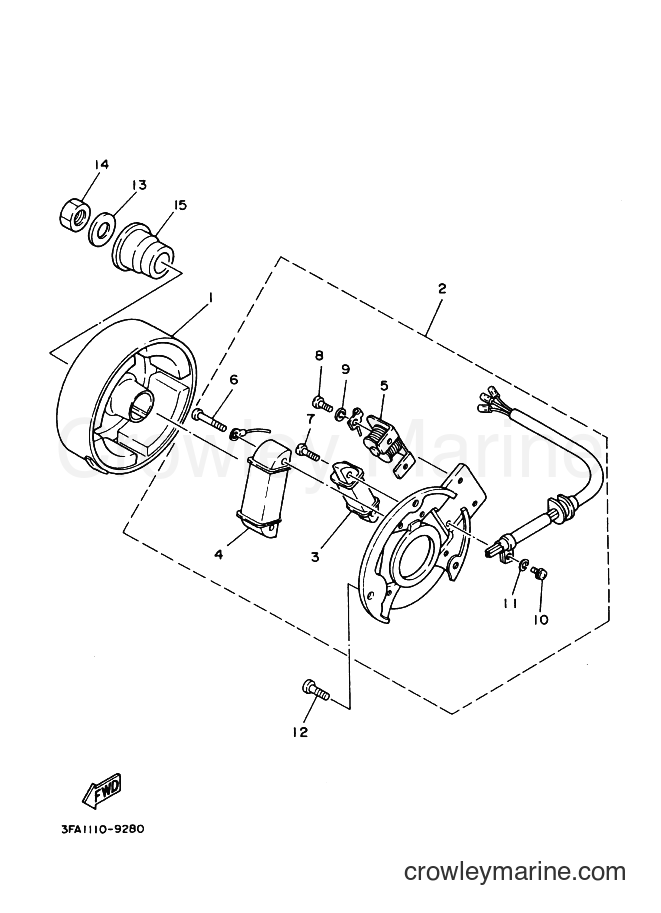

1996 ATV YFA-1 - YFA-1 (3FAF) [999] GENERATOR diagram
![Yamaha Motors YFA-1 (3FAF) [999] - GENERATOR](https://cdn.crowleymarine.com/yamaha/8dKl1mAo.png)
$250.74
You save $44.25
2
Yamaha Motors
Base Assembly3FA-85560-11-00
Required: 1
BASE ASSY
Supersedes: 3FA-85560-10-00
$317.89
You save $56.10
3
Yamaha Motors
Charge Coil3FA-85520-00-00
Required: 1
. COIL, CHARGE
$52.69
You save $9.30
4
Yamaha Motors
Lighting Coil3FA-81313-00-00
Required: 1
. COIL, LIGHTING 1
$52.69
You save $9.30
5
Yamaha Motors
4KG-85595-01-004KG-85595-00-00
Required: 1
. COIL, PULSER
$56.09
You save $9.90
6
Yamaha Motors
Pan Head Screw98517-04025-00
Required: 2
. SCREW, PAN HEAD
$2.72
You save $0.48
7
Yamaha Motors
Pan Head Screw98517-04016-00
Required: 2
SCREW, PAN HEAD
Supersedes: 98511-04016-00
$8.07
You save $1.42
8
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 2
. SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.70
You save $0.30
9
Yamaha Motors
Spring Washer92990-04100-00
Required: 2
. WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.81
You save $0.14
10
Required: 1
. SCREW, PAN HEAD
Price unavailable
11
Yamaha Motors
Spring Washer92990-04100-00
Required: 1
. WASHER, SPRING
Supersedes: 92901-04100-00
In stock
5+ in stock
$0.81
You save $0.14
12
Yamaha Motors
Pan Head Screw98580-06020-00
Required: 3
. SCREW, PAN HEAD
In stock
Only 1 remaining
$8.07
You save $1.42
13
Yamaha Motors
Plate Washer90201-122H1-00
Required: 1
WASHER, PLATE
$8.92
You save $1.57
$11.47
You save $2.02
$27.19
You save $4.80
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
