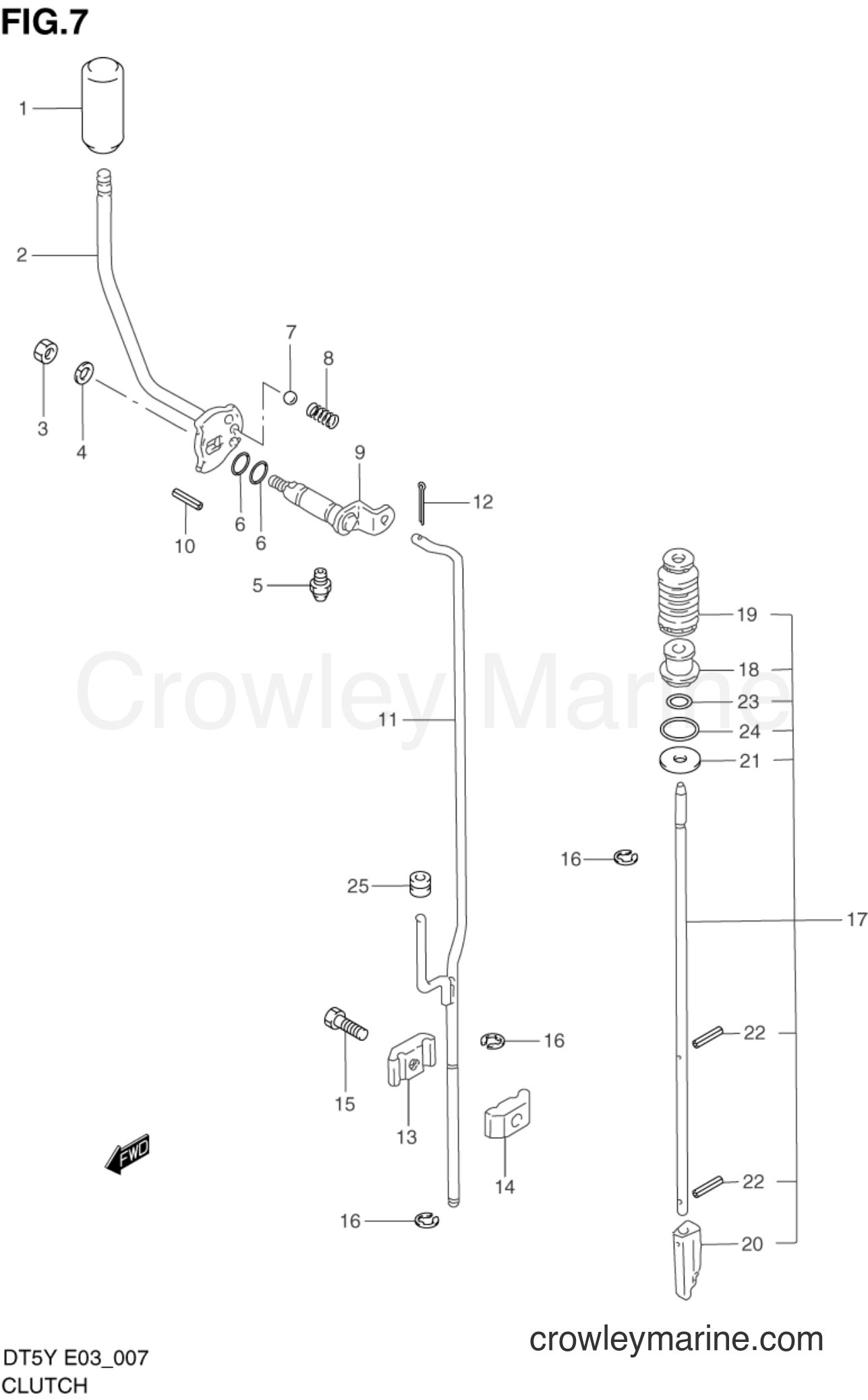

2002 Two-Stroke Outboard 5 - DT5Y CLUTCH diagram
1
Suzuki Marine
CLUTCH LEVER KN21141-98500
Required: 1
KNOB, CLUTCH LEVER
$3.82
You save $0.68
$18.23
You save $3.22
3
Suzuki Marine
Nut09140-08023-XC0
Required: 1
NUT
Supersedes: 09140-08016
$2.38
You save $0.42
$1.54
You save $0.27
5
Suzuki Marine
Grease Nipple22511-99011
Required: 1
GREASE NIPPLE, CLUTCH
Supersedes: 22511-99010
In stock
5+ in stock
$3.17
You save $0.56
6
Suzuki Marine
O RING CAMSHAFT09280-09005
Required: 2
O RING (D:1.9 ID:8.6)
In stock
Only 1 remaining
$3.82
You save $0.68
7
Suzuki Marine
DRIVE GEAR TENSION BALL (3/8")09260-10005
Required: 1
BALL, CLUTCH NOTCH
In stock
Only 2 remaining
$1.75
You save $0.31
8
Suzuki Marine
Spring09440-07021
Required: 1
SPRING, CLUTCH NOTCH
$1.47
You save $0.26
9
Suzuki Marine
Obsolete Suzuki Part21210-98601
Required: 1
SHAFT, CLUTCH LEVER
$7.41
You save $1.31
10
Suzuki Marine
PIN09205-05014
Required: 1
PIN, CLUTCH LEVER (L:18)
$1.96
You save $0.35
11
Suzuki Marine
ROD,CLUTCH PUSH23110-98611
Required: 1
ROD, CLUTCH (S)
$15.70
You save $2.77
11
Suzuki Marine
Obsolete Suzuki Part23110-98601
Required: 1
ROD, CLUTCH (L)
$8.72
You save $1.54
12
Suzuki Marine
PIN09204-01002
Required: 1
COTTER PIN
In stock
Only 4 remaining
$1.61
You save $0.28
13
Suzuki Marine
CLUTCH ROD CONN23311-99001
Required: 1
CONNECTOR, CLUTCH ROD NO.1
$11.24
You save $1.98
14
Suzuki Marine
CLUTCH ROD CONN23321-99001
Required: 1
CONNECTOR, CLUTCH ROD NO.2
$11.75
You save $2.07
15
Suzuki Marine
BOLT09138-06037
Required: 1
BOLT (6X20)
$3.40
You save $0.60
$0.71
You save $0.13
17
Suzuki Marine
Obsolete Suzuki Part25100-98606
Required: 1
ROD ASSY, SHIFT
$28.36
You save $5.01
18
Suzuki Marine
GUIDE,SHIFT ROD25211-98601
Required: 1
.GUIDE, SHIFT ROD
$3.97
You save $0.70
19
Suzuki Marine
BOOT,SHIFT ROD25222-93902
Required: 1
.BOOT, SHIFT ROD
Supersedes: 25222-93901
$7.46
You save $1.32
20
Suzuki Marine
Obsolete Suzuki Part25311-91J00
Required: 1
.CAM, SHIFT
Supersedes: 25311-93E20
$10.17
You save $1.79
21
Suzuki Marine
WASHER09160-05501
Required: 1
.WASHER (5.5X20X1.2)
$1.91
You save $0.34
22
Suzuki Marine
PIN09205-02006
Required: 2
.SPRING PIN
In stock
Only 1 remaining
$1.00
You save $0.18
23
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-05008
Required: 1
.O RING (D:2.9 ID:4.8)
$2.57
You save $0.45
24
Suzuki Marine
O-RING D:2.4 ID09280-15007
Required: 1
.O RING (D:2.4 ID:15.8)
In stock
Only 2 remaining
$1.76
You save $0.31
25
Suzuki Marine
BUSH09320-04010
Required: 1
BUSH, SHIFT ROD
In stock
Only 1 remaining
$1.88
You save $0.33
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
