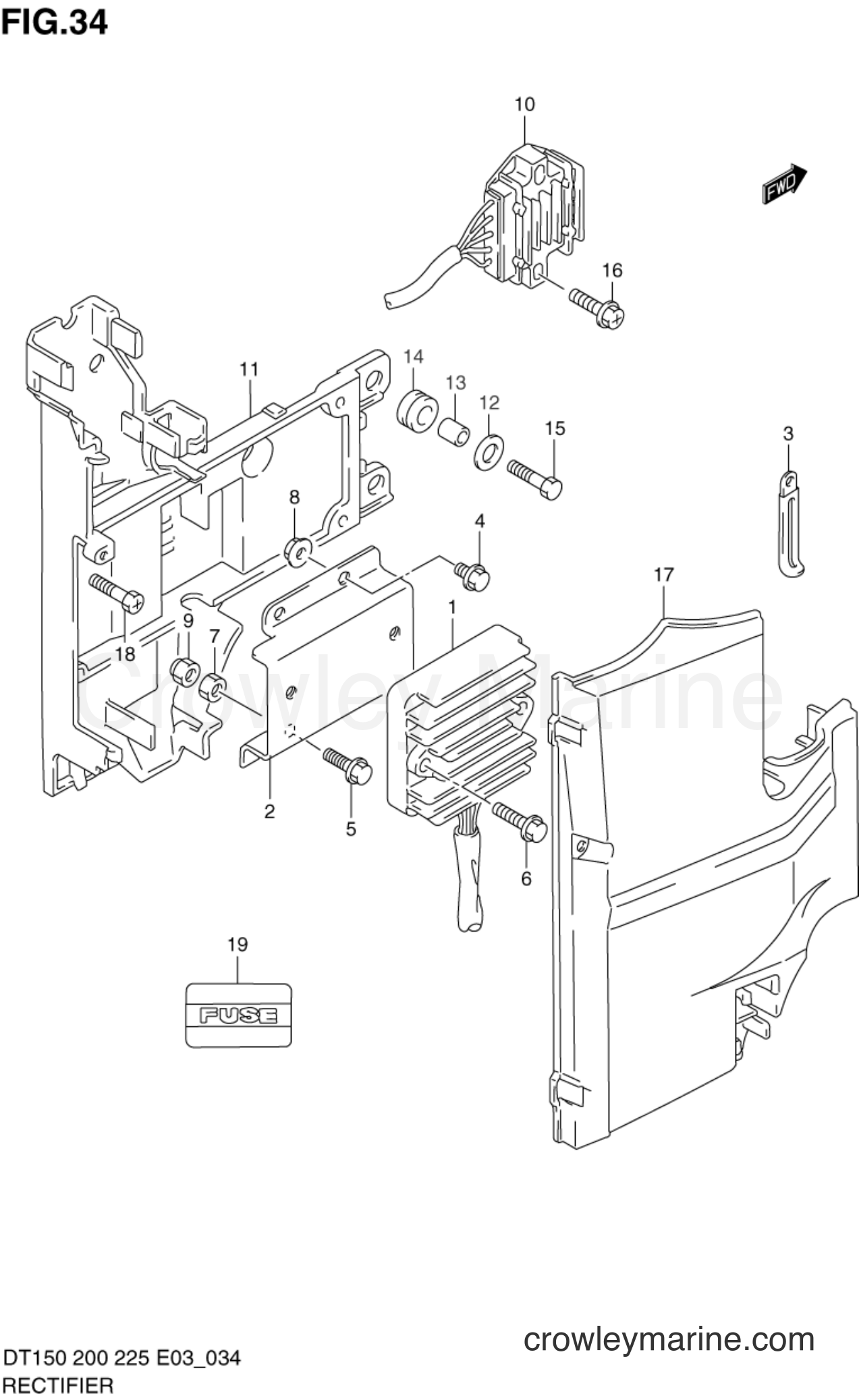

2003 Two-Stroke Outboard 225 - DT225G RECTIFIER (DT150(G/S),200(G)) diagram
1
Suzuki Marine
RECTIFIER & REG32800-92E20
Required: 1
RECTIFIER & REGULATOR
In stock
Only 1 remaining
$232.39
You save $41.01
2
Suzuki Marine
Obsolete Suzuki Part32801-92E00
Required: 1
BRACKET, RECT & REGULATOR
$11.02
You save $1.94
3
Suzuki Marine
CLAMP(L:65)09404-06039
Required: 1
CLAMP
Supersedes: 09404-06432
$1.78
You save $0.31
4
Suzuki Marine
BOLT01550-0610A
Required: 2
BOLT
Supersedes: 01550-06103
$2.01
You save $0.36
In stock
5+ in stock
$2.37
You save $0.42
6
Suzuki Marine
BOLT01550-0625A
Required: 2
BOLT
Supersedes: 01550-06253
$2.01
You save $0.36
7
Suzuki Marine
Nut08310-0006A
Required: 1
NUT
Supersedes: 08310-00063
$1.89
You save $0.33
8
Suzuki Marine
Nut08316-1006B
Required: 2
NUT
Supersedes: 08316-10063
$2.57
You save $0.45
9
Required: 1
NUT
Price unavailable
10
Suzuki Marine
Obsolete Suzuki Part32800-92E30
Required: 1
REGULATOR, FUEL PUMP
$148.27
You save $26.17
11
Suzuki Marine
HOLDER,ELECTRIC32890-92E10
Required: 1
HOLDER, ELECTRIC PARTS SIDE
$28.00
You save $4.94
$1.49
You save $0.26
$2.19
You save $0.39
14
Suzuki Marine
Cushion09320-08527
Required: 4
CUSHION
Supersedes: 09320-08001
$2.13
You save $0.38
$2.01
You save $0.36
$1.40
You save $0.25
$26.23
You save $4.63
$1.33
You save $0.23
19
Suzuki Marine
Obsolete Suzuki Part36746-92E00
Required: 1
LABEL, PARTS HOLDER COVER
$1.71
You save $0.30
20
Required: 1
REFER TO FIG.35(E-9) FOR DT225/DT225G
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
