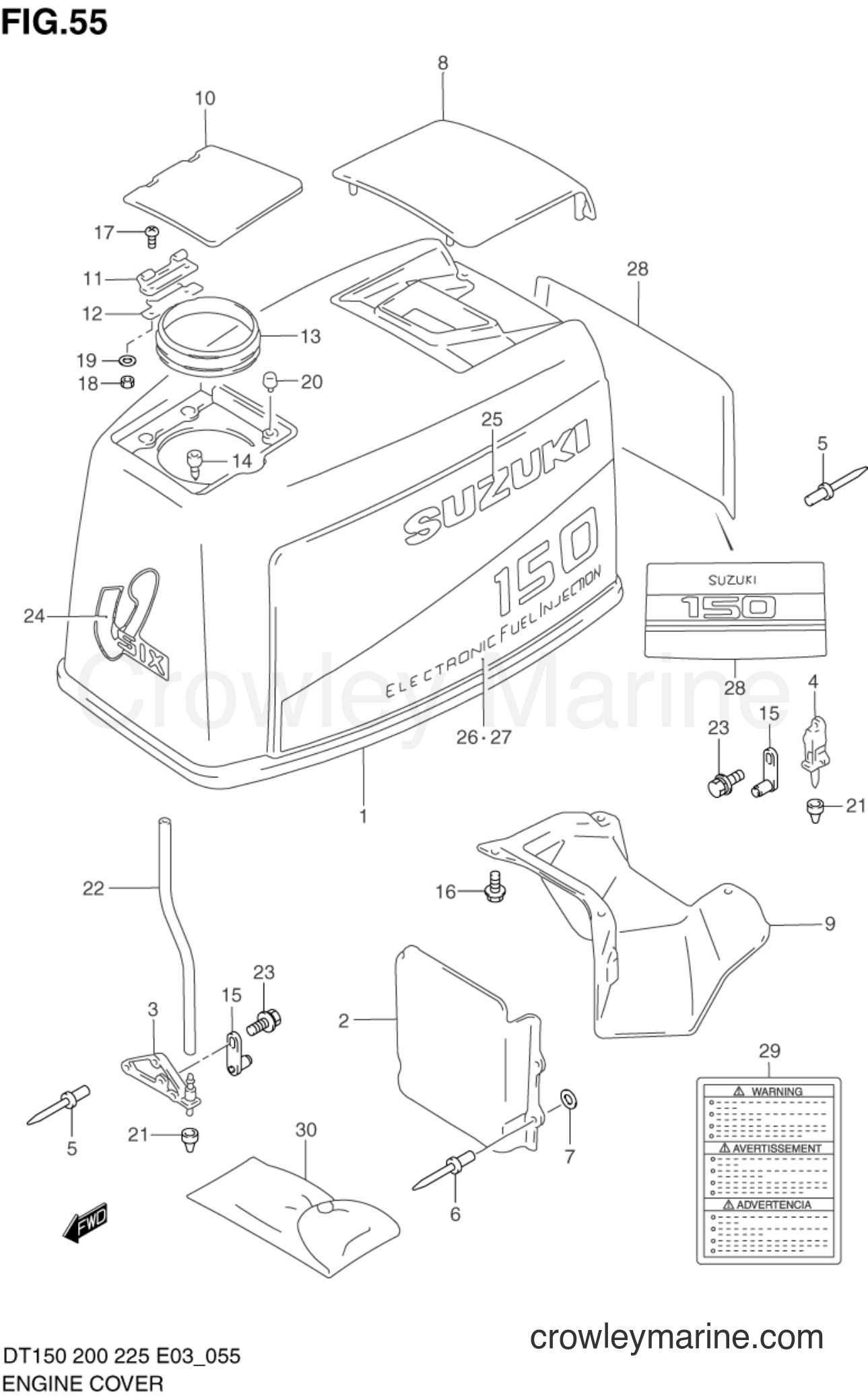

2001 Two-Stroke Outboard 225 - DT225 ENGINE COVER (DT150TC,150G) diagram
1
Suzuki Marine
Obsolete Suzuki Part61410-87891-0ED
Required: 1
COVER SET, ENGINE
$1081.50
You save $190.85
2
Suzuki Marine
Obsolete Suzuki Part61475-87D01
Required: 1
.GUIDE, AIR INTAKE INNER
$14.74
You save $2.60
3
Suzuki Marine
BRACKET,FASTENE61621-87D02
Required: 1
.BRACKET, FASTENER FR
$43.28
You save $7.64
4
Suzuki Marine
Obsolete Suzuki Part61644-87D01
Required: 2
.BRACKET, FASTENER RR
$22.07
You save $3.89
$1.73
You save $0.30
$1.73
You save $0.30
In stock
5+ in stock
$1.91
You save $0.34
8
Suzuki Marine
Obsolete Suzuki Part61431-87D01
Required: 1
.COVER, AIR INTAKE
Supersedes: 61431-87D01-0ED
$64.72
You save $11.42
9
Suzuki Marine
Obsolete Suzuki Part61433-87D01
Required: 1
.COVER, AIR INTAKE INNER
$25.03
You save $4.42
10
Suzuki Marine
Supersedes to 61481-87D0061481-87D00-0ED
Required: 1
.LID, OIL TANK FILLER
$46.27
You save $8.17
11
Suzuki Marine
HINGE OIL FILLE61482-94400
Required: 1
.HINGE, OIL FILLER LID
$4.11
You save $0.72
12
Suzuki Marine
SPRING OIL FILL61485-94400
Required: 1
.SPRING, OIL FILLER LID
$4.11
You save $0.72
13
Suzuki Marine
SEAL,OIL TANK F61491-87D02
Required: 1
.SEAL, OIL FILLER LID
Supersedes: 61491-87D01
$12.44
You save $2.19
14
Suzuki Marine
DRAIN ENG COVER61495-87D00
Required: 1
.DRAIN, ENGINE COVER
$2.85
You save $0.50
$13.04
You save $2.30
16
Suzuki Marine
BOLT01550-06167
Required: 4
.BOLT
Supersedes: 02162-06167
$2.37
You save $0.42
In stock
Only 1 remaining
$1.72
You save $0.30
$2.50
You save $0.44
$1.61
You save $0.28
$2.58
You save $0.46
21
Suzuki Marine
CUSHION,ENGINE09329-10024
Required: 4
.CUSHION
Supersedes: 09329-10022
$4.13
You save $0.73
In stock
Only 2 remaining
$7.74
You save $1.37
$1.39
You save $0.25
24
Suzuki Marine
Obsolete Suzuki Part61422-92E20-A8M
Required: 1
.MARK, EMBLEM FR
$17.63
You save $3.11
$22.19
You save $3.91
$84.59
You save $14.93
$84.59
You save $14.93
$60.43
You save $10.66
29
Suzuki Marine
LABEL,ENGINE CO61581-98621
Required: 1
LABEL, ENGINE COVER
Supersedes: 61581-98620
In stock
Only 1 remaining
$7.58
You save $1.34
30
Suzuki Marine
TOOL ASSEMBLY09800-01016
Required: 1
TOOL SET
Supersedes: 09800-01001
In stock
Only 1 remaining
$19.59
You save $3.46
31
Required: 1
COLOR : 0ED (GRAY) REFER TO FIG.56(H-6) FOR DT150TC,150G MODEL:02,03 REFER TO FIG.57(H-7) FOR DT150STC REFER TO FIG.58(H-9) FOR DT150STC MODEL:02,03 REFER TO FIG.59(H-10) FOR DT200TC,200G REFER TO FIG.60(H-11) FOR DT225,225G REFER TO FIG.61(H-12) FOR DT225,225G MODEL:02,03 COLOR : A8M(019/1RR/28V/0ED) A8L(019/1RR/28V) 019(BLACK) 1RR(GOLD) 28V(RED) 0ED(GRAY)
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
