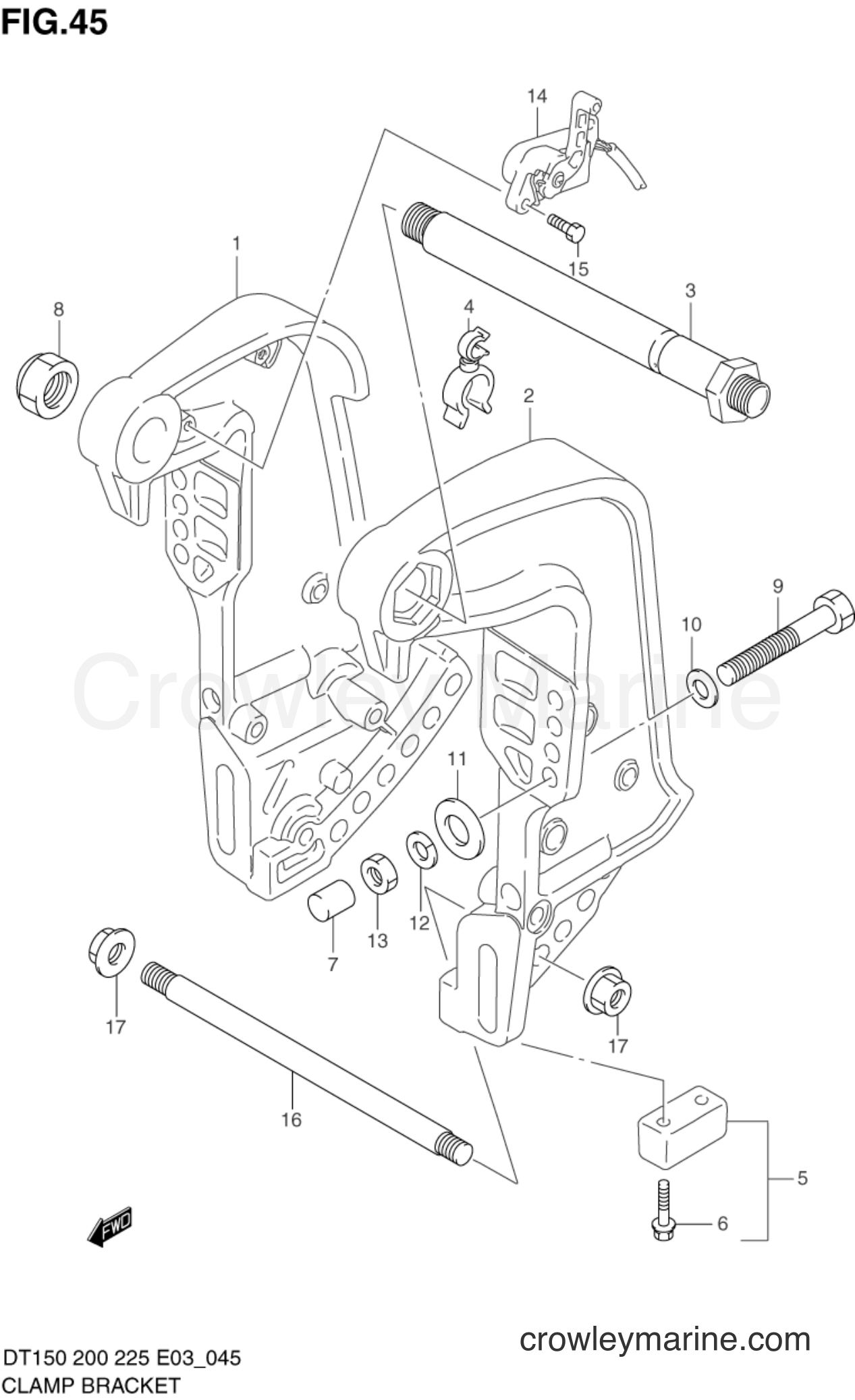

1999 Two-Stroke Outboard 200 - DT200G CLAMP BRACKET diagram
1
Suzuki Marine
Obsolete Suzuki Part41111-87D08-0ED
Required: 1
BRACKET, CLAMP STBD
Supersedes: 41111-87D07-0ED
$261.84
You save $46.21
1
Suzuki Marine
Obsolete Suzuki Part41111-87D08-0ED
Required: 1
BRACKET, CLAMP STBD
$261.84
You save $46.21
1
Suzuki Marine
BRACKET,CLAMP S41111-87D08-0EP
Required: 1
BRACKET, CLAMP STBD
$317.76
You save $56.08
2
Suzuki Marine
Obsolete Suzuki Part41121-87D14-0ED
Required: 1
BRACKET, CLAMP PORT
$209.28
You save $36.93
2
Suzuki Marine
BRACKET,CLAMP P41121-87D14-0EP
Required: 1
BRACKET, CLAMP PORT
$317.76
You save $56.08
3
Suzuki Marine
Supersedes to 41130-93J0241130-87D02
Required: 1
SHAFT, CLAMP BRACKET
$53.60
You save $9.46
$2.79
You save $0.49
5
Suzuki Marine
ZINC SET,ANODE41810-87D00
Required: 2
ZINC SET, ANODE
In stock
Only 1 remaining
$11.46
You save $2.02
6
Suzuki Marine
BOLT09116-06099
Required: 4
.BOLT (6X35)
$2.23
You save $0.39
$2.80
You save $0.49
$26.55
You save $4.69
9
Suzuki Marine
BOLT,12X115,PIT09100-12091
Required: 4
BOLT (12X115)
Supersedes: 09100-12045
$13.42
You save $2.37
10
Suzuki Marine
WASHER09160-12066
Required: 4
WASHER (12.5X22X2.5)
$1.84
You save $0.32
11
Suzuki Marine
WASHER09160-12044
Required: 4
WASHER (12.5X35X3.2)
$3.60
You save $0.64
12
Suzuki Marine
WASHER09162-12005
Required: 4
LOCK WASHER (12.2X21.5X3.0)
$2.13
You save $0.38
$3.06
You save $0.54
$99.24
You save $17.51
15
Suzuki Marine
BOLT09100-06113
Required: 2
BOLT (6X16)
$2.00
You save $0.35
16
Suzuki Marine
PIN,TILT LOCK45421-87D03
Required: 1
PIN, TILT LOCK
Supersedes: 45421-87D00
$22.58
You save $3.98
$4.81
You save $0.85
18
Required: 1
COLOR : 0ED (GRAY) 0EP (BLACK)
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
