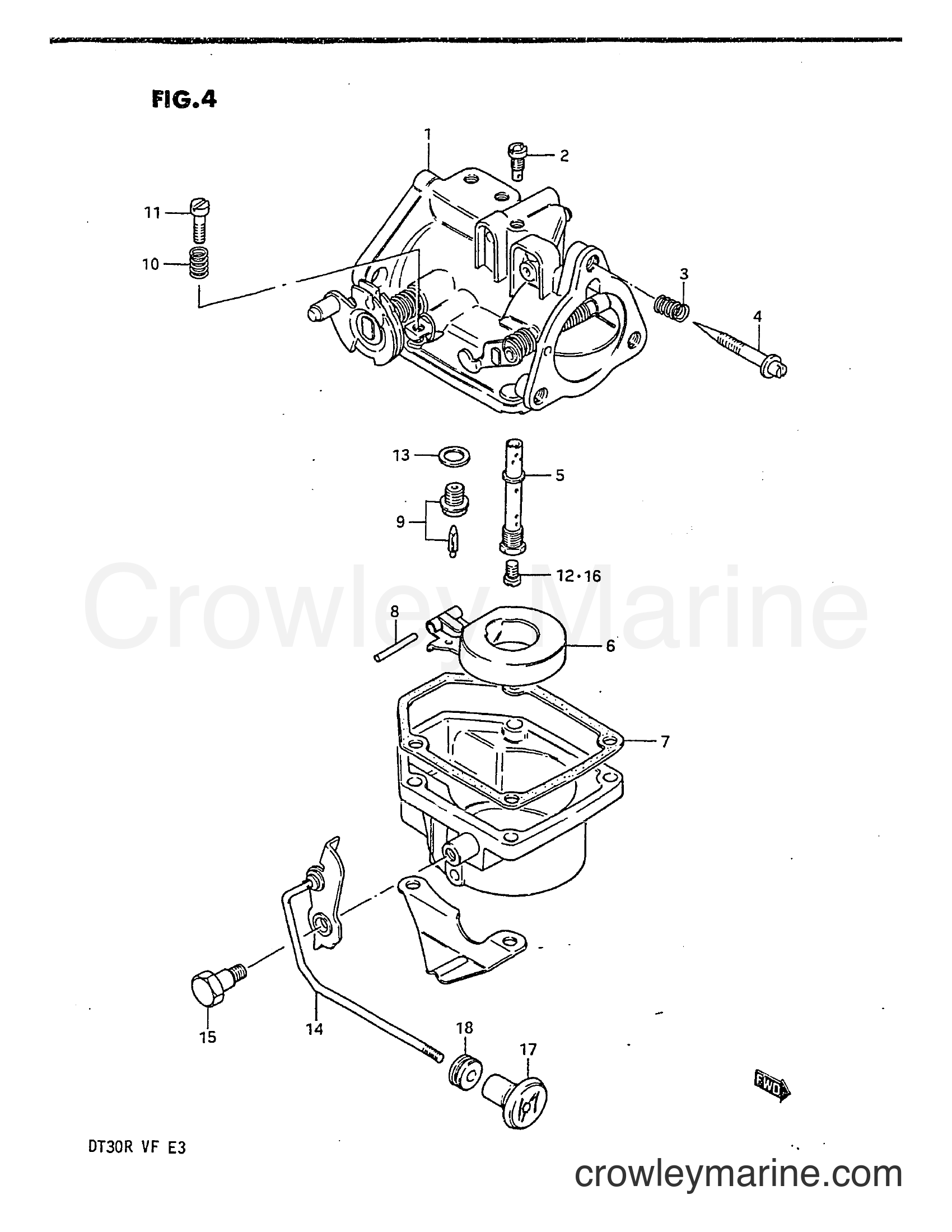

1983 Two-Stroke Outboard 30 - DT30 CARBURETOR diagram
1
Suzuki Marine
Obsolete Suzuki Part13200-963A0
Required: 1
CARBURETOR ASSY
Supersedes: 13200-96300
$172.24
You save $30.40
1
Suzuki Marine
Obsolete Suzuki Part13200-963A0
Required: 1
CARBURETOR ASSY
Supersedes: 13200-96301
$172.24
You save $30.40
1
Suzuki Marine
Supersedes to 13200-9630613200-96304
Required: 1
CARBURETOR ASSY
Supersedes: 13200-96302
$126.31
You save $22.29
1
Suzuki Marine
Supersedes to 13200-9630613200-96304
Required: 1
CARBURETOR ASSY
Supersedes: 13200-96303
$126.31
You save $22.29
2
Suzuki Marine
P/J 85 (N10104309492-85001
Required: 1
.JET, AIR (85)
In stock
Only 1 remaining
$8.56
You save $1.51
3
Suzuki Marine
AIR SCREW SPRIN13271-93311
Required: 1
.SPRING, AIR SCREW
In stock
Only 1 remaining
$4.87
You save $0.86
4
Suzuki Marine
Air Screw13269-93311
Required: 1
.SCREW, PILOT AIR
$7.83
You save $1.38
5
Suzuki Marine
Main Nozzle13235-94350
Required: 1
.NOZZLE
Supersedes: 13235-96300
$21.28
You save $3.76
In stock
Only 1 remaining
$19.07
You save $3.36
7
Suzuki Marine
GASKET,FLOAT CH13251-93320
Required: 1
.GASKET, FLOAT CHAMBER
Supersedes: 13251-93310
In stock
Only 2 remaining
$8.09
You save $1.43
8
Suzuki Marine
PIN CARBURETOR13254-98300
Required: 1
.PIN, FLOAT
Supersedes: 13254-93010
In stock
Only 2 remaining
$3.26
You save $0.58
9
Suzuki Marine
Needle Valve13370-28110
Required: 1
.VALVE ASSY, NEEDLE
In stock
Only 1 remaining
$49.05
You save $8.66
10
Suzuki Marine
Spring13268-96111
Required: 1
.SPRING, THROTTLE STOP
Supersedes: 13268-96110
In stock
5+ in stock
$4.35
You save $0.77
11
Suzuki Marine
Obsolete Suzuki Part13534-96300
Required: 1
.SCREW, THROTTLE STOP
$1.93
You save $0.34
12
Suzuki Marine
JET,MAIN,16009491-32012
Required: 1
.JET, MAIN (160)
Supersedes: 09491-32006
$11.34
You save $2.00
13
Suzuki Marine
NEEDLE VALVE SE13392-58600
Required: 1
.GASKET, VALVE SEAT
In stock
Only 3 remaining
$1.91
You save $0.34
14
Suzuki Marine
LEVER ASSY, CHO13681-96301
Required: 1
.LEVER, CHOKE
Supersedes: 13681-96300
$42.69
You save $7.53
In stock
Only 1 remaining
$7.39
You save $1.30
16
Suzuki Marine
Obsolete Suzuki Part09491-34008
Required: 1
JET, MAIN (170)
Supersedes: 09491-34004
$5.61
You save $0.99
16
Suzuki Marine
M/J 165 (N1022209491-33004
Required: 1
JET, MAIN (165)
$11.26
You save $1.99
16
Suzuki Marine
Pilot Jet09491-31014
Required: 1
JET, MAIN (155)
Supersedes: 09491-31003
$14.00
You save $2.47
17
Suzuki Marine
Starter Knob13631-93501
Required: 1
KNOB, STARTER
Supersedes: 13631-93500
In stock
Only 1 remaining
$4.27
You save $0.75
18
Suzuki Marine
CUSHION,MUF COV09320-04013
Required: 1
BUSH
Supersedes: 09305-04005
$1.66
You save $0.29
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
