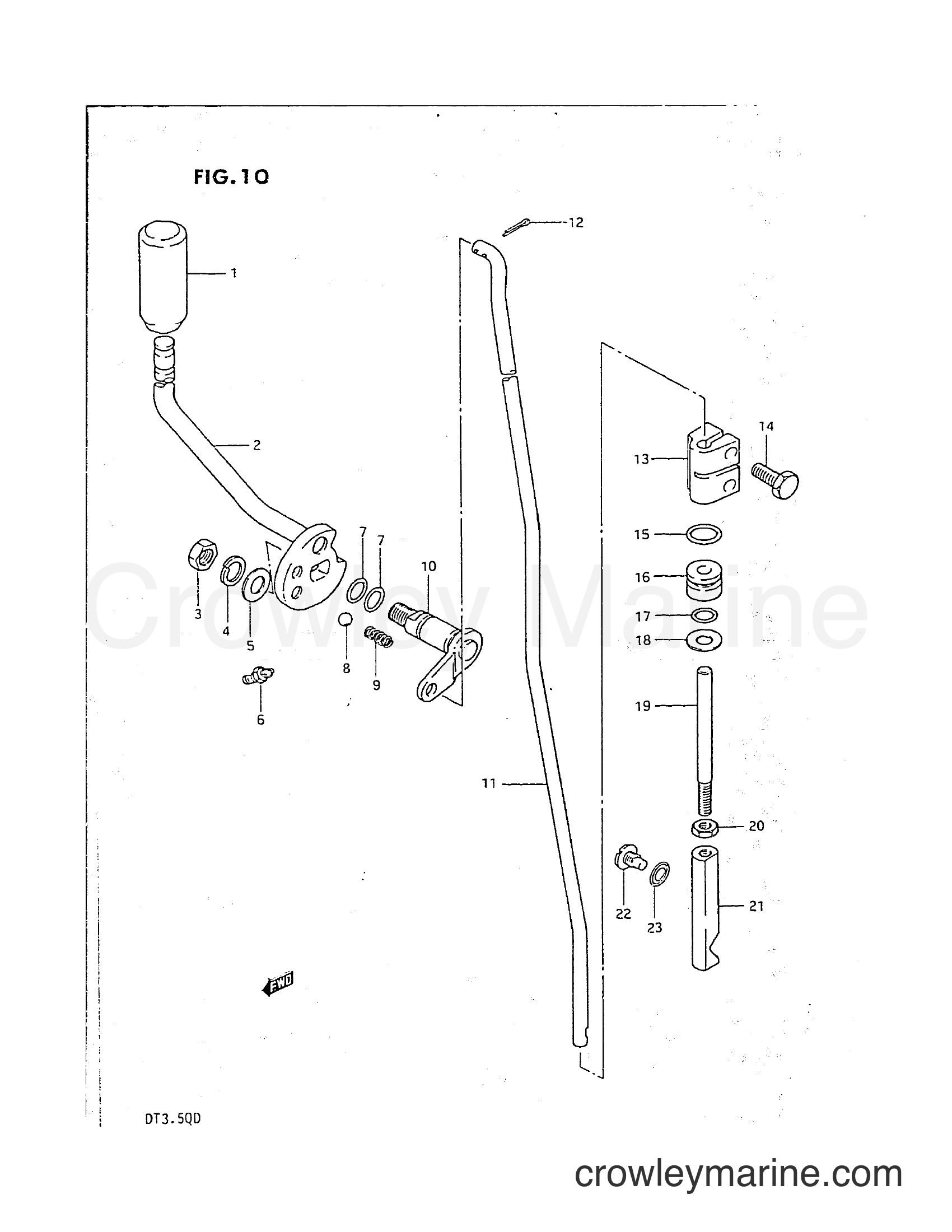

1984 Two-Stroke Outboard 3.5 - DT3.5 CLUTCH diagram
1
Suzuki Marine
CLUTCH LEVER KN21141-98500
Required: 1
KNOB, CLUTCH LEVER
$3.82
You save $0.68
$11.48
You save $2.03
3
Suzuki Marine
Nut09140-08023-XC0
Required: 1
NUT
Supersedes: 09140-08003
$2.38
You save $0.42
4
Suzuki Marine
WASHER LOCK09162-08007
Required: 1
LOCK WASHER
Supersedes: 09162-08003
$1.54
You save $0.27
5
Suzuki Marine
WASHER09160-08082
Required: 1
WASHER (8.5X16X1.6)
Supersedes: 09160-08015
$1.68
You save $0.30
6
Suzuki Marine
Grease Nipple22511-99011
Required: 1
GREASE NIPPLE, CLUTCH
Supersedes: 22511-99000
In stock
5+ in stock
$3.17
You save $0.56
7
Suzuki Marine
O RING CAMSHAFT09280-09005
Required: 2
O RING
Supersedes: 09280-09003
In stock
Only 1 remaining
$3.82
You save $0.68
In stock
Only 2 remaining
$1.75
You save $0.31
In stock
Only 2 remaining
$1.75
You save $0.31
$1.47
You save $0.26
10
Suzuki Marine
Obsolete Suzuki Part21210-98301
Required: 1
SHAFT, CLUTCH LEVER
$7.33
You save $1.29
11
Suzuki Marine
Obsolete Suzuki Part23111-98310
Required: 1
ROD, CLUTCH (L:458)
$9.00
You save $1.59
11
Suzuki Marine
Obsolete Suzuki Part23111-98320
Required: 1
ROD, CLUTCH (L:585)
$8.47
You save $1.50
12
Suzuki Marine
PIN09204-01002
Required: 2
COTTER PIN
Supersedes: 09204-01001
In stock
Only 4 remaining
$1.61
You save $0.28
13
Suzuki Marine
Obsolete Suzuki Part23311-93001
Required: 1
CONNECTOR, CLUTCH ROD
$16.45
You save $2.90
14
Suzuki Marine
BOLT09100-06113
Required: 2
BOLT
Supersedes: 09100-06019
$2.00
You save $0.35
$2.05
You save $0.36
16
Suzuki Marine
Obsolete Suzuki Part25211-99004
Required: 1
GUIDE, SHIFTING ROD
$5.77
You save $1.02
$2.24
You save $0.40
$0.65
You save $0.11
$4.33
You save $0.76
$0.48
You save $0.09
$15.51
You save $2.74
22
Suzuki Marine
Screw (M8 X 40)09139-06035
Required: 1
SCREW
Supersedes: 09139-06003
$1.42
You save $0.25
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
