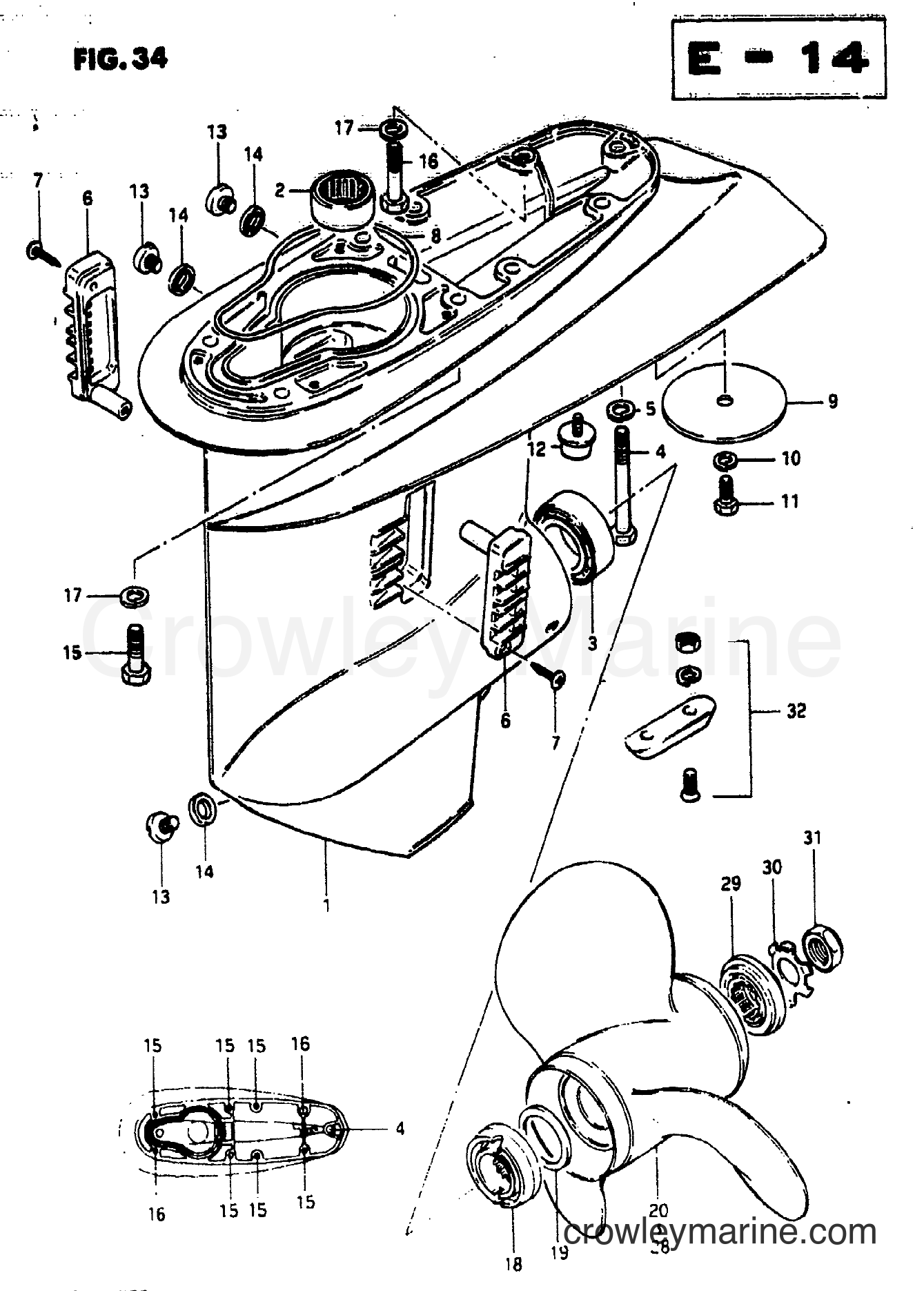

1982 Two-Stroke Outboard 50 - DT50M GEAR CASE (MODEL J/VZ) diagram
1
Suzuki Marine
CASE ASSY,GEAR55100-95330-0ED
Required: 1
CASE SET, GEAR
Supersedes: 55100-95300-01J
$662.66
You save $116.94
2
Suzuki Marine
RN 26X34X30 B 209263-26023
Required: 1
.BEARING, PLNLON
Supersedes: 09263-26008
$86.97
You save $15.35
3
Suzuki Marine
RT 30X62X17.2509265-30004
Required: 1
.BEARING, PROPELLER SHAFT
$61.45
You save $10.84
4
Suzuki Marine
Obsolete Suzuki Part09100-10159
Required: 1
BOLT, GEAR CASE
$6.82
You save $1.20
5
Suzuki Marine
WASHER LOCK09162-10005
Required: 1
LOCK WASHER
Supersedes: 09162-10002
In stock
5+ in stock
$1.93
You save $0.34
6
Suzuki Marine
FILTER, WATER17631-94600
Required: 2
FILTER, WATER
Supersedes: 17631-95201-01J
In stock
Only 3 remaining
$12.55
You save $2.22
7
Suzuki Marine
Screw (M8 X 40)03141-0420A
Required: 2
SCREW
Supersedes: 03142-04209
$1.52
You save $0.27
8
Suzuki Marine
SEAL,GEARCASE55122-95202
Required: 1
SEAL, GEAR CASE
Supersedes: 55122-95201
$4.69
You save $0.83
$6.37
You save $1.12
10
Suzuki Marine
WASHER LOCK09162-08007
Required: 1
LOCK WASHER
Supersedes: 09162-08003
$1.54
You save $0.27
11
Suzuki Marine
BOLT,TRIM TAB09100-08215
Required: 1
BOLT, TRIM TAB (8x16)
Supersedes: 09100-08090
$2.34
You save $0.41
12
Suzuki Marine
ZINC, ANODE11130-94600
Required: 1
ZINC, PROTECTION
Supersedes: 55321-93141
$7.94
You save $1.40
13
Suzuki Marine
PLUG,DRAIN,10X709248-10008
Required: 3
PLUG, DRAIN
Supersedes: 09248-10004
In stock
Only 3 remaining
$6.71
You save $1.19
14
Suzuki Marine
GASKET, DRAIN P09168-10022
Required: 3
GASKET, DRAIN PLUG
In stock
5+ in stock
$1.50
You save $0.27
$3.20
You save $0.57
16
Suzuki Marine
BOLT09118-08106
Required: 2
BOLT
Supersedes: 09100-08178
In stock
Only 1 remaining
$5.82
You save $1.03
17
Suzuki Marine
WASHER LOCK09162-08007
Required: 8
LOCK WASHER
Supersedes: 09162-08003
$1.54
You save $0.27
18
Suzuki Marine
STOPPER,PROPELL57632-95330
Required: 1
STOPPER, PROPELLER BUSHING
Supersedes: 57632-95304
In stock
Only 1 remaining
$41.59
You save $7.34
19
Suzuki Marine
Obsolete Suzuki Part09160-32006
Required: 1
WASHER (32.6x45x1)
$1.29
You save $0.23
20
Suzuki Marine
Supersedes to 58100-95212-01T58100-95211-01T
Required: 1
PROPELLER (3x292x254)
Supersedes: 58100-95210-01T
$69.39
You save $12.24
21
Suzuki Marine
Supersedes to 58100-88L20-01958100-95222-019
Required: 1
PROPELLER (3x292x280)
Supersedes: 58100-95220-01T
$107.57
You save $18.98
22
Suzuki Marine
Supersedes to 58100-88L30-01958100-95393-019
Required: 1
PROPELLER (3x295x305)
Supersedes: 58100-95391-01T
$115.09
You save $20.31
23
Suzuki Marine
13P DF40A/50A/658100-88LB0-019
Required: 1
PROPELLER (3x292x330)
Supersedes: 58100-95340-01T
$160.04
You save $28.24
24
Suzuki Marine
13P DF40A/50A/658100-88LB0-019
Required: 1
PROPELLER (3x292x330)
Supersedes: 58100-94311-01T
$160.04
You save $28.24
25
Suzuki Marine
14P DF40A/50A/658100-88LQ0-019
Required: 1
PROPELLER (3x292x356) DT50 (M,W) -> STD
Supersedes: 58100-95351-01T
$145.48
You save $25.67
26
Suzuki Marine
15P DF40A/50A/658100-88LR0-019
Required: 1
PROPELLER (3x286x381) DT65 -> STD
Supersedes: 58100-95361-01T
$141.24
You save $24.93
27
Suzuki Marine
Supersedes to 58100-88L70-01958100-95373-019
Required: 1
PROPELLER (3x283x405) DT50 -> STD
Supersedes: 58100-95371-01T
$107.57
You save $18.98
28
Suzuki Marine
Supersedes to 58100-88L80-01958100-95382-019
Required: 1
PROPELLER (3x280x432)
Supersedes: 58100-95380-01T
$107.57
You save $18.98
29
Suzuki Marine
SPACER,PROPELLE57633-94301
Required: 1
SPACER, PROPELLER NUT
Supersedes: 57633-94300
$15.68
You save $2.77
$3.64
You save $0.64
31
Suzuki Marine
Nut09159-18004
Required: 1
NUT, PROPELLER
$22.09
You save $3.90
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
