All diagrams for this model

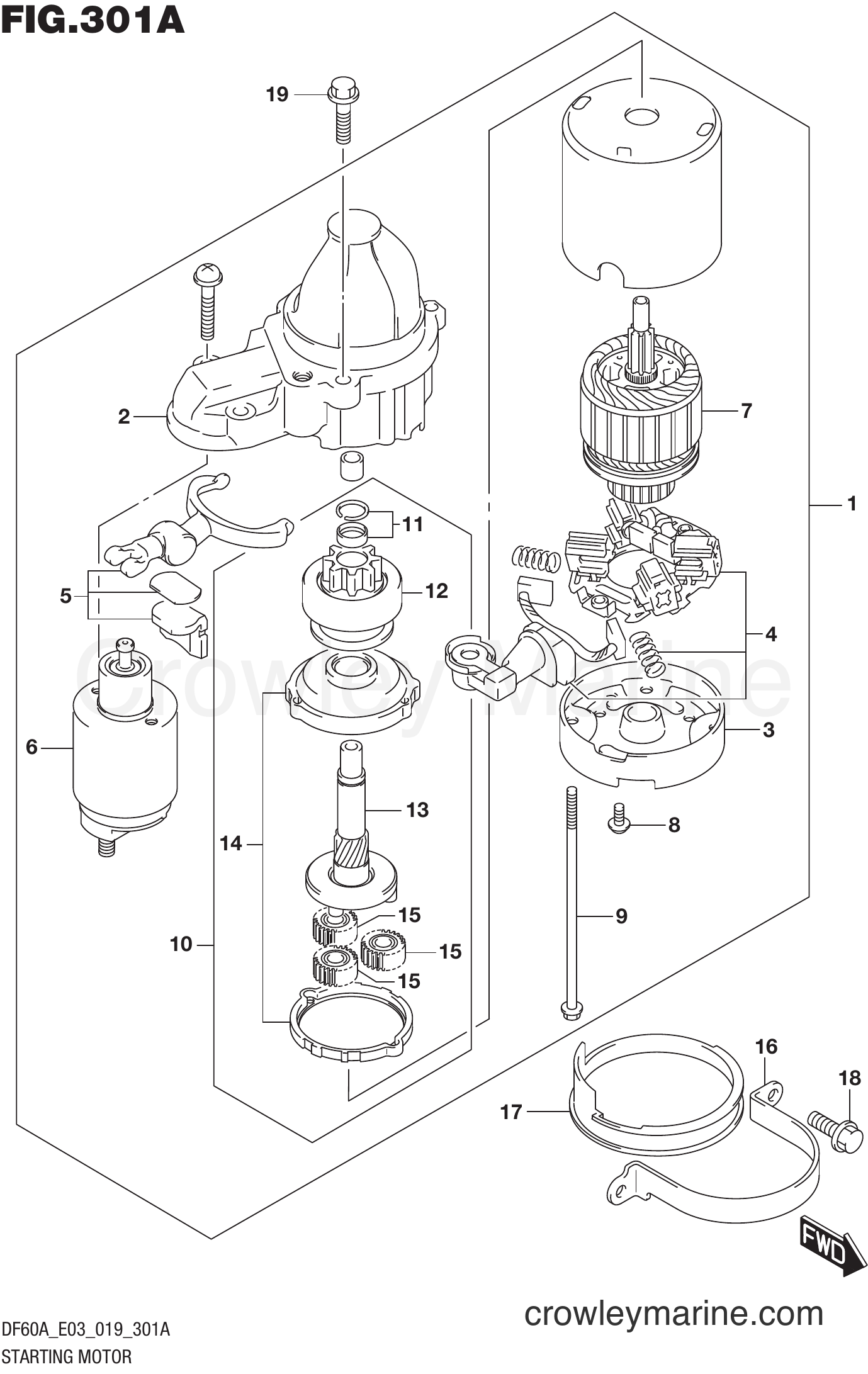

Serial Range Four-Stroke Outboard 60 - DF60AVT 910001~ STARTING MOTOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Suzuki Marine DF60AVT 910001~ - STARTING MOTOR
Change View:
MOTOR ASSY,STAR
1
Suzuki Marine
MOTOR ASSY,STAR31100-89L00
Required: 1
STARTING MOTOR
Cross Ship
Leaves in 2-5 days
$979.47
$832.55
You save $146.92
More details
CASE,GEAR
2
Suzuki Marine
CASE,GEAR31150-98L00
Required: 1
.CASE, GEAR
Cross Ship
Leaves in 2-5 days
$159.93
$135.94
You save $23.99
More details
3
Required: 1
.HOUSING, REAR
Price unavailable
HOLDER ASSY,BRU
4
Suzuki Marine
HOLDER ASSY,BRU31173-98L00
Required: 1
.HOLDER ASSY, BRUSH
Cross Ship
Leaves in 2-5 days
$117.79
$100.12
You save $17.67
More details
5
Required: 1
.LEVER ASSY
Price unavailable
6
Required: 1
.SWITCH ASSY
Price unavailable
7
Required: 1
.ARMATURE
Price unavailable
8
Required: 1
.SCREW SET
Price unavailable
9
Required: 2
.BOLT, THROUGH
Price unavailable
10
Required: 1
.CLUTCH SET, STARTER
Price unavailable
11
Required: 1
..STOPPER SET
Price unavailable
12
Required: 1
..PINION
Price unavailable
13
Required: 1
..SHAFT, PINION
Price unavailable
14
Required: 1
..INTERNAL GEAR
Price unavailable
15
Required: 3
..GEAR ASSY
Price unavailable
BAND,STARTER MO
16
Suzuki Marine
BAND,STARTER MO31912-88L00
Required: 1
BAND, STARTING MOTOR
Cross Ship
Leaves in 2-5 days
$10.15
$8.63
You save $1.52
More details
BOLT
18
Suzuki Marine
BOLT01550-06167
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.79
$2.37
You save $0.42
More details
19
Required: 2
BOLT
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
