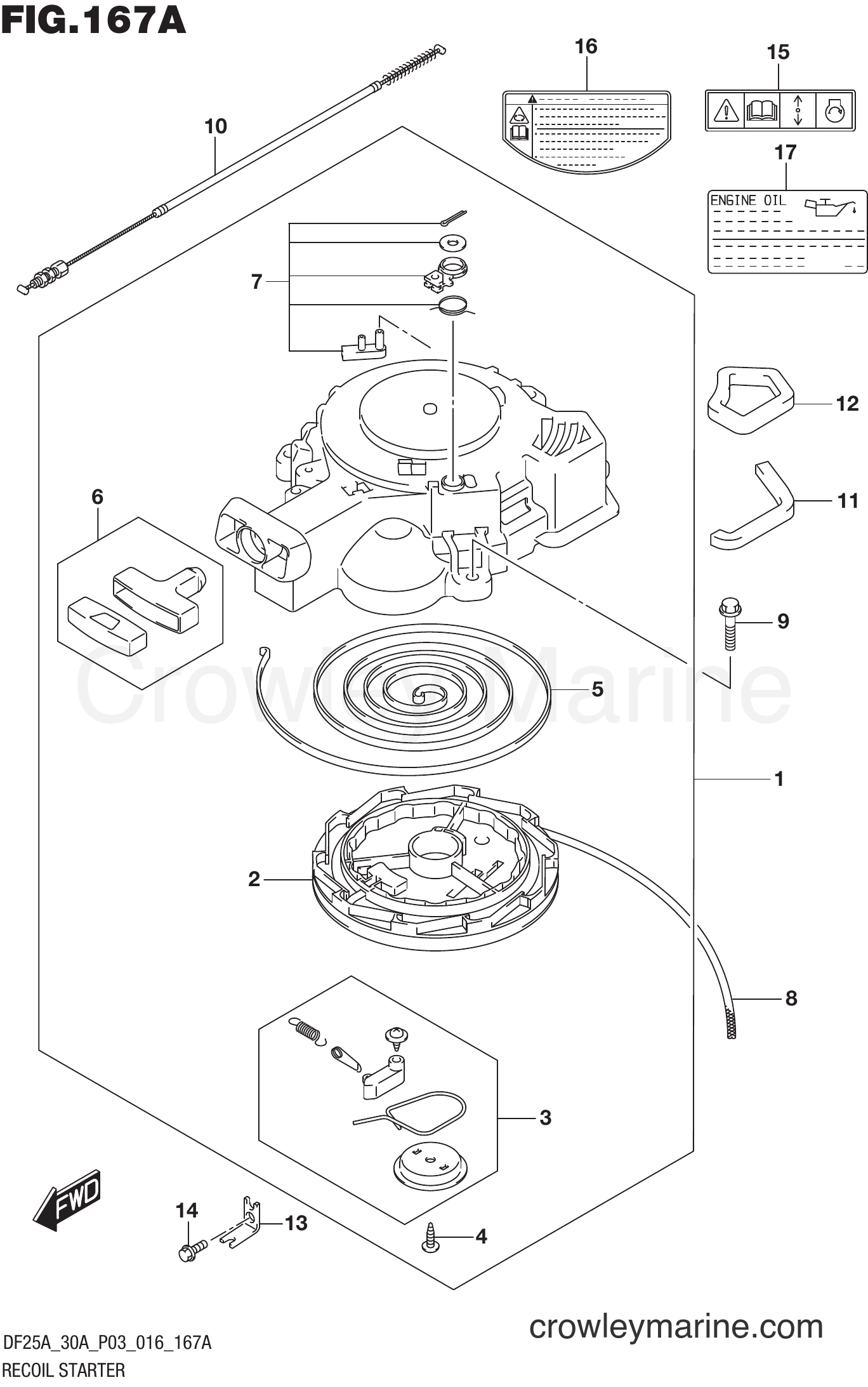

Serial Range Four-Stroke Outboard 30 - DF30A 610001~ RECOIL STARTER diagram
1
Suzuki Marine
STARTER ASSY,RE18100-94L00
Required: 1
STARTER ASSY, RECOIL
$285.32
You save $50.35
$62.56
You save $11.04
3
Suzuki Marine
RATCHET SET18130-93E01
Required: 1
.RATCHET SET
$16.26
You save $2.87
$2.13
You save $0.38
5
Suzuki Marine
Spiral Spring18142-93E00
Required: 1
.SPRING, SPIRAL
$26.00
You save $4.59
$11.79
You save $2.08
$8.79
You save $2.20
8
Suzuki Marine
STARTER ROPE 5M99000-81158-50M
Required: 1
STARTER ROPE 5MMDIA, 50M ROLE
$253.41
You save $44.72
$2.62
You save $0.66
10
Suzuki Marine
CABLE ASSY,NSI18290-94L00
Required: 1
CABLE ASSY, NSI
$14.02
You save $2.47
11
Suzuki Marine
SEAL,AIR RECOIL18193-94L00
Required: 1
SEAL, AIR RECOIL LOWER
$1.70
You save $0.30
12
Suzuki Marine
SEAL,AIR RECOIL18194-94L00
Required: 1
SEAL, AIR RECOIL UPPER
$2.30
You save $0.41
13
Suzuki Marine
BRACKET,NSI CAB18295-94L00
Required: 1
BRACKET, NSI CABLE
$3.11
You save $0.55
$2.23
You save $0.56
15
Suzuki Marine
LABEL,S.I.G.P69711-93E10
Required: 1
LABEL, S.I.G.P.
$3.96
You save $0.70
16
Required: 1
LABEL, RECOIL, STARTER
Price unavailable
17
Suzuki Marine
LABEL,OIL CL61494-94L01
Required: 1
LABEL, OIL / CLEARANCE
$1.56
You save $0.27
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
