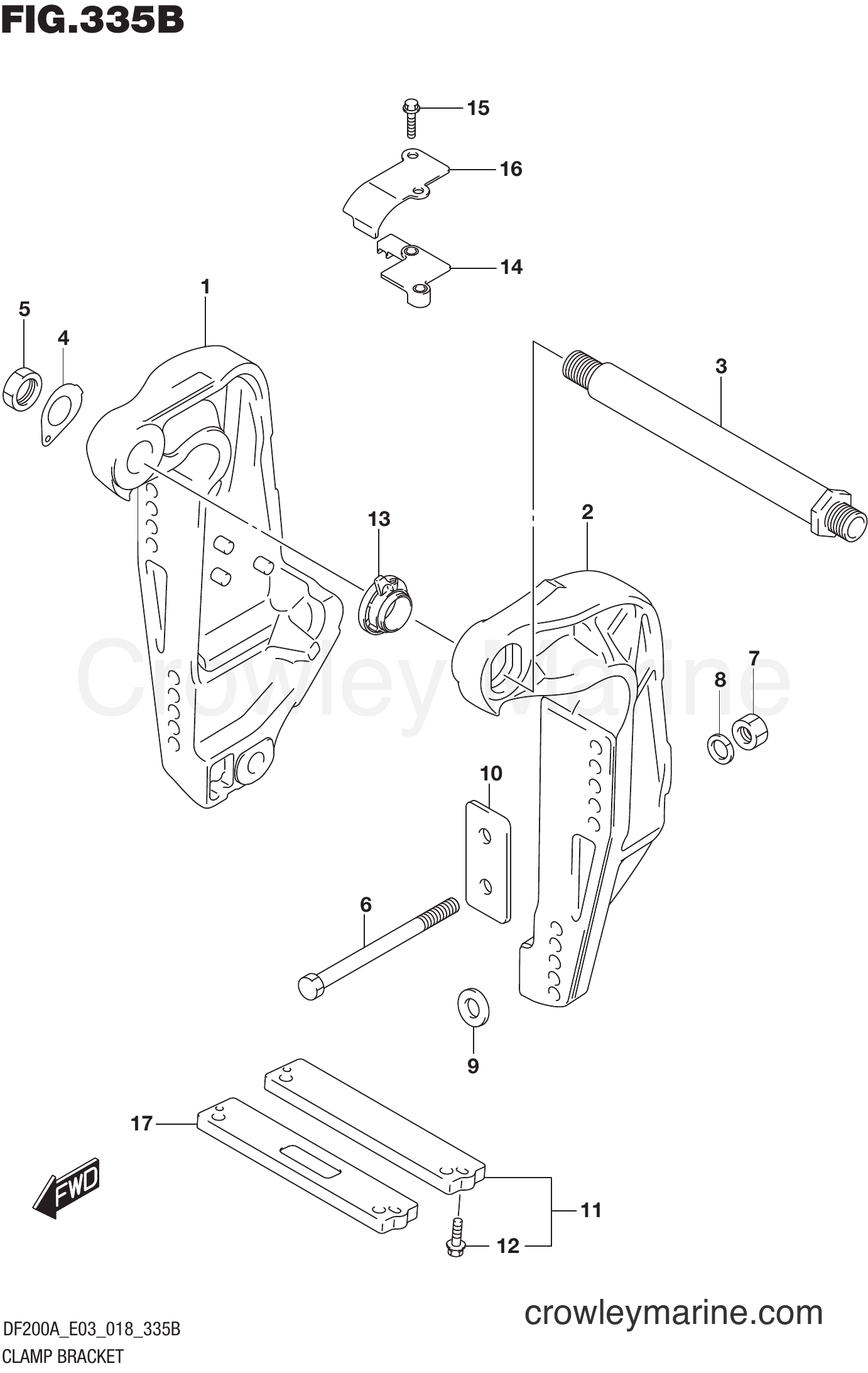

Serial Range Four-Stroke Outboard 200 - DF200AT 810001~ CLAMP BRACKET (DF200AST) diagram
1
Suzuki Marine
BRACKET,CLAMP S41111-96J22-YAY
Required: 1
BRACKET, CLAMP STBD (BLACK)
$390.61
You save $68.93
2
Suzuki Marine
BRACKET,CLAMP P41121-96J13-YAY
Required: 1
BRACKET, CLAMP PORT (BLACK)
$390.61
You save $68.93
3
Suzuki Marine
SHAFT,CLAMP BRA41130-92J03
Required: 1
SHAFT, CLAMP BRKT
$193.56
You save $34.16
4
Suzuki Marine
WASHER, CLAMP B41135-92J00
Required: 1
WASHER, CLAMP BRACKET SHAFT
$6.62
You save $1.17
$26.55
You save $4.69
6
Suzuki Marine
BOLT,TRANSOM09100-12086
Required: 6
BOLT (12.7X150)
$26.32
You save $4.65
6
Suzuki Marine
BOLT,115MM LONG09100-12085
Required: 1
BOLT (12.7X115)
$24.50
You save $4.32
6
Suzuki Marine
BOLT,TRANSOM09100-12092
Required: 1
BOLT (12.7X75)
$21.76
You save $3.84
$7.88
You save $1.39
8
Suzuki Marine
WASHER(13.2X26X09160-13021
Required: 6
WASHER (13.2X26X3)
$10.08
You save $1.78
9
Suzuki Marine
WASHER(13.2X45X09160-13022
Required: 4
WASHER (13.2X45X3)
$12.89
You save $2.27
10
Suzuki Marine
PLATE,TRANSOM41155-93J02
Required: 2
PLATE, TRANSOM
$20.97
You save $3.70
11
Suzuki Marine
ANODE SET55320-94900
Required: 1
ZINC SET, PROTECTION
In stock
5+ in stock
$38.11
You save $6.72
12
Suzuki Marine
BOLT09116-06121
Required: 2
.BOLT (6X25)
In stock
5+ in stock
$2.78
You save $0.49
13
Suzuki Marine
CAM ASSY,TILT L48140-93J01
Required: 1
CAM, TILT LIMIT SWITCH
$14.48
You save $2.56
14
Suzuki Marine
HOLDER,TILT LIM48144-93J00
Required: 1
HOLDER, TILT LIMIT SWITCH
$9.89
You save $1.74
$2.44
You save $0.43
16
Suzuki Marine
COVER,TILT LIMI48145-93J00
Required: 1
COVER, TILT LIMIT SWITCH
$9.81
You save $1.73
17
Suzuki Marine
MAGNIESIUM ANOD55321-94910
Required: 1
ANODE (MAGNESIUM)
$40.32
You save $7.11
18
Required: 1
DF200AST E03
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
