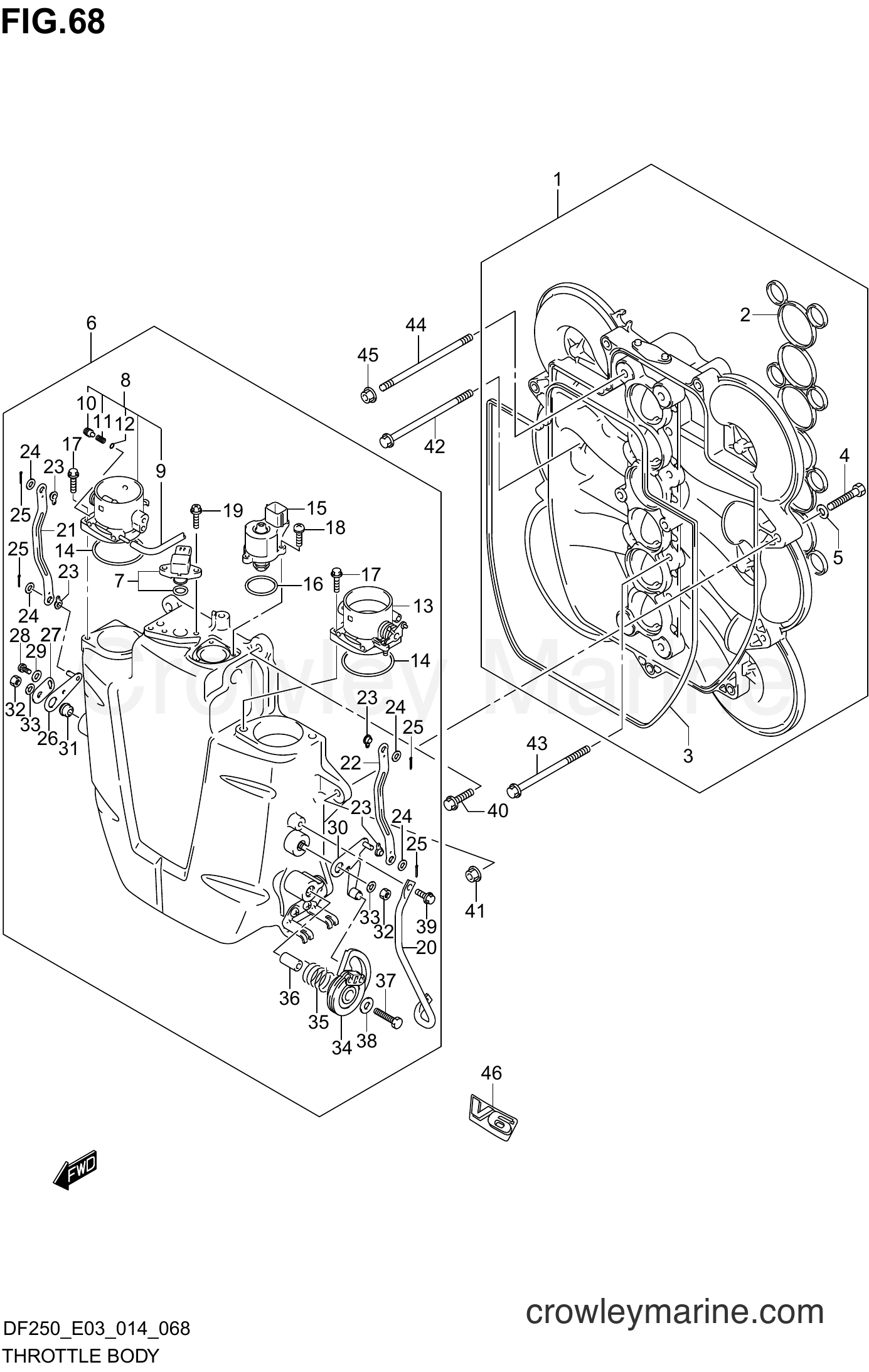

Serial Range Four-Stroke Outboard 250 - DF250 410001~ THROTTLE BODY (DF200T E03) diagram
1
Suzuki Marine
COLLECTOR COMP13130-93J31
Required: 1
COLLECTOR
Supersedes: 13130-93J30
$988.84
You save $174.50
2
Suzuki Marine
GASKET,COLLECTO13139-93J00
Required: 1
.GASKET, COLLECTOR
$37.78
You save $6.67
3
Suzuki Marine
GASKET,COLLECTO13147-93J00
Required: 1
.GASKET, COLLECTOR COVER
$36.23
You save $6.39
4
Suzuki Marine
BOLT,COLLECTOR13138-93J10
Required: 2
.BOLT, COLLECTOR
Supersedes: 13138-93J00
$5.53
You save $0.98
$1.80
You save $0.45
6
Suzuki Marine
COVER COMP,COLL13140-93J13
Required: 1
COVER, COLLECTOR
$1607.06
You save $283.60
$281.34
You save $49.65
8
Suzuki Marine
BODY ASSY,THROT13310-93J02
Required: 1
.BODY ASSY, THROTTLE NO.1
Supersedes: 13310-93J01
$412.95
You save $73.50
9
Suzuki Marine
HOSE,BYPASS AIR13312-93J00
Required: 1
..HOSE, BYPASS AIR
$4.01
You save $0.71
10
Suzuki Marine
Obsolete Suzuki Part13279-10G00
Required: 1
..SCREW, BYPASS AIR
$6.44
You save $1.14
11
Suzuki Marine
Obsolete Suzuki Part13355-93J00
Required: 1
..SPRING, BYPASS AIR
$1.58
You save $0.28
12
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)13295-10G00
Required: 1
..O RING, BYPASS AIR SCREW
$3.66
You save $0.65
13
Suzuki Marine
BODY ASSY,THROT13320-93J00
Required: 1
.BODY ASSY, THROTTLE NO.2
$454.99
You save $80.29
14
Suzuki Marine
GASKET,THROTTLE13421-93J00
Required: 2
.GASKET, THROTTLE BODY
$6.96
You save $1.23
15
Suzuki Marine
VALVE,IAC18137-93J01
Required: 1
.VALVE, IAC
Supersedes: 18137-93J00
$338.69
You save $59.77
16
Suzuki Marine
O-RING,IAC VALV09280-29008
Required: 1
.O RING (D:2,ID:29.5)
Supersedes: 09280-29006
$3.82
You save $0.67
$2.08
You save $0.37
$2.28
You save $0.40
$2.34
You save $0.41
20
Suzuki Marine
GUARD,THROTTLE13144-93J00
Required: 1
.GUARD, THROTTLE DRUM
$18.75
You save $3.31
$27.66
You save $4.88
$27.66
You save $4.88
$3.09
You save $0.54
$1.58
You save $0.28
$1.33
You save $0.23
26
Suzuki Marine
LEVER,NO.113553-93J00
Required: 1
.LEVER, NO.1
$26.61
You save $4.70
27
Suzuki Marine
LEVER,NO.213554-93J00
Required: 1
.LEVER, NO.2
$6.94
You save $1.23
$1.10
You save $0.19
29
Required: 1
.WASHER (5.5X16X1.2)
Price unavailable
$31.31
You save $5.53
31
Suzuki Marine
SPACER,LINK SHA13514-93J00
Required: 1
.SPACER, LINK SHAFT
$10.45
You save $1.85
32
Suzuki Marine
NUT,LINK SHAFT13599-93J00
Required: 2
.NUT, LINK SHAFT
$6.94
You save $1.23
33
Suzuki Marine
WASHER,LINK SHA13538-93J00
Required: 2
.WASHER, LINK SHAFT SPRING
$2.66
You save $0.47
34
Suzuki Marine
Throttle Cam13541-93J00
Required: 1
.CAM THROTTLE
$36.46
You save $6.44
35
Suzuki Marine
SPRING,THROTTLE13542-93J00
Required: 1
.SPRING, THROTTLE CAM
$7.87
You save $1.39
36
Suzuki Marine
SPACER,THROTTLE13543-93J00
Required: 1
.SPACER, THROTTLE CAM
$17.10
You save $3.02
$2.45
You save $0.61
-50%
38
Suzuki Marine
WASHER09160-06036
Required: 1
.WASHER (6.5X18X1.5)
In stock
5+ in stock
$1.20
You save $1.20
$2.23
You save $0.56
$3.50
You save $0.87
$2.31
You save $0.41
$5.11
You save $0.90
43
Suzuki Marine
BOLT09103-08134
Required: 4
BOLT (8X110)
$3.04
You save $0.54
$2.18
You save $0.38
$2.54
You save $0.45
46
Suzuki Marine
Obsolete Suzuki Part61436-93J00
Required: 1
MARK, EMBLEM V6
$5.96
You save $1.05
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
