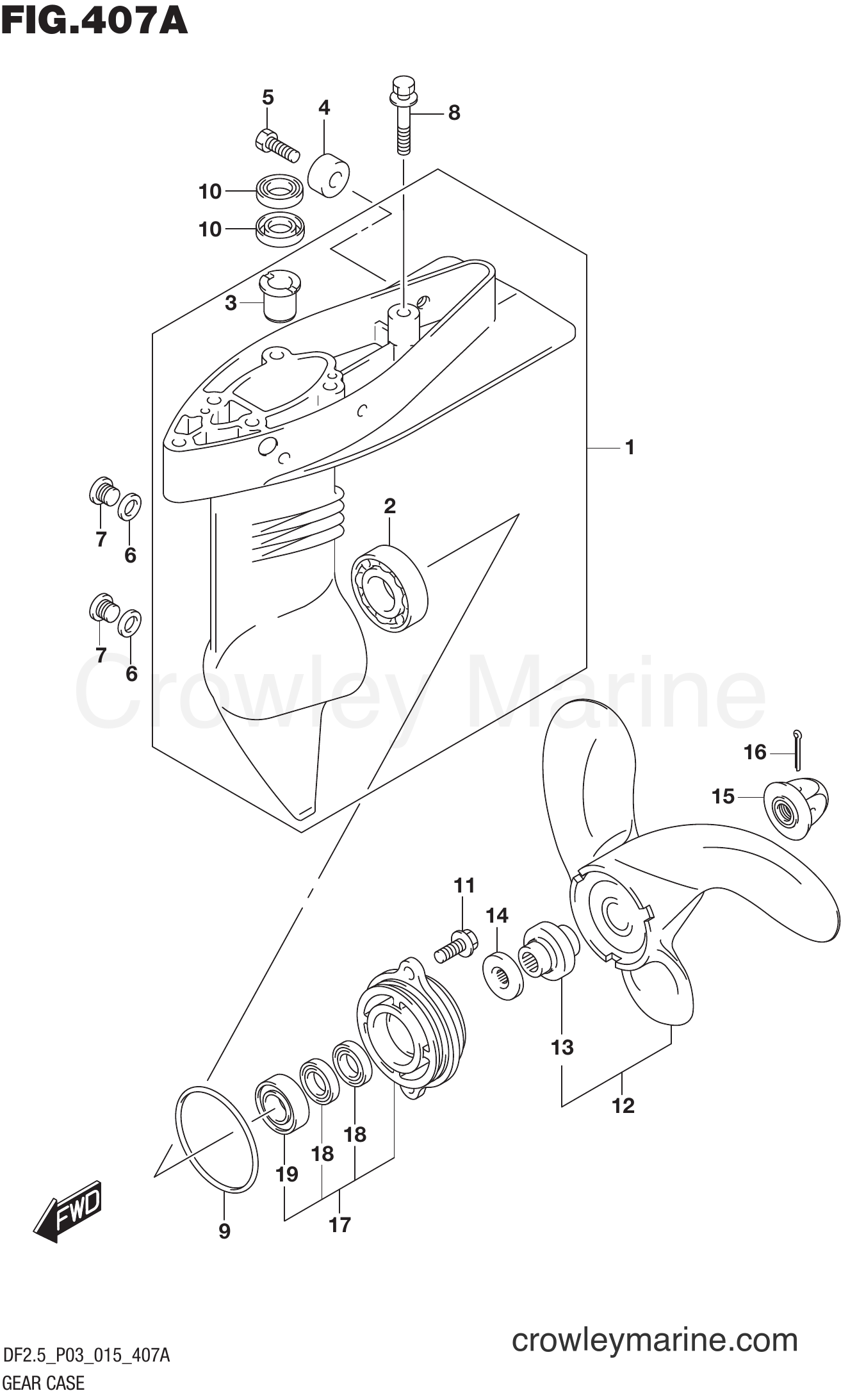

Serial Range Four-Stroke Outboard 2.5 - DF2.5 00252F-510001~ GEAR CASE diagram
1
Suzuki Marine
CASE,GEAR(BLACK55110-97J51-0EP
Required: 1
CASE, GEAR (BLACK)
$145.21
You save $25.62
2
Suzuki Marine
B1 17X35X8 BEAR09262-17019
Required: 1
.BEARING (17X35X8)
$20.02
You save $3.53
3
Suzuki Marine
BUSH,PINION59311-97J20
Required: 2
.BUSH, PINION
$24.27
You save $4.28
4
Suzuki Marine
ANODE,PROTECTIO55321-87J01
Required: 1
ANODE, PROTECTION
Supersedes: 55321-87J00
In stock
5+ in stock
$6.49
You save $1.14
In stock
5+ in stock
$3.05
You save $0.54
6
Suzuki Marine
GASKET,DRAIN PL59178-97J00
Required: 2
GASKET, DRAIN PLUG
In stock
5+ in stock
$1.91
You save $0.34
In stock
Only 4 remaining
$2.50
You save $0.44
$2.80
You save $0.49
9
Suzuki Marine
O-Ring59291-97J00
Required: 1
O RING, PROP SFT BRG HOUSING
$7.88
You save $1.39
10
Suzuki Marine
Oil Seal09282-10008
Required: 2
OIL SEAL (10X21X4.5)
In stock
Only 3 remaining
$3.37
You save $0.60
$2.45
You save $0.43
12
Suzuki Marine
PROP 3 X 71/2 X58110-97JA0-019
Required: 1
PROPELLER (3X7-3/8X5-3/8)
In stock
5+ in stock
$105.74
You save $18.66
13
Suzuki Marine
BUSH,PROPELLER58120-97JA0
Required: 1
.BUSH, PROPELLER
$76.25
You save $13.46
14
Suzuki Marine
STOPPER,PROPELL57635-91JL0
Required: 1
STOPPER, PROPELLER BUSH
$41.62
You save $7.34
15
Suzuki Marine
NUT COMP,PROPEL58130-91JL0
Required: 1
NUT, PROPELLER
In stock
Only 1 remaining
$35.80
You save $6.32
16
Suzuki Marine
COTTER PIN,PROP09204-03003
Required: 1
COTTER PIN (D:3.6,L:25)
In stock
Only 3 remaining
$2.48
You save $0.44
17
Suzuki Marine
HSNG,PROP SHAFT56120-97J50-0EP
Required: 1
HOUSING, PROP SFT BRG (BLACK)
$154.84
You save $27.32
18
Suzuki Marine
SEAL,OIL,12X24X09282-12L05
Required: 2
.OIL SEAL (12X24X4.5)
$6.87
You save $1.21
19
Suzuki Marine
B1 12X28X8 BEAR09262-12001
Required: 1
.BEARING (12X28X8)
$19.39
You save $3.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
