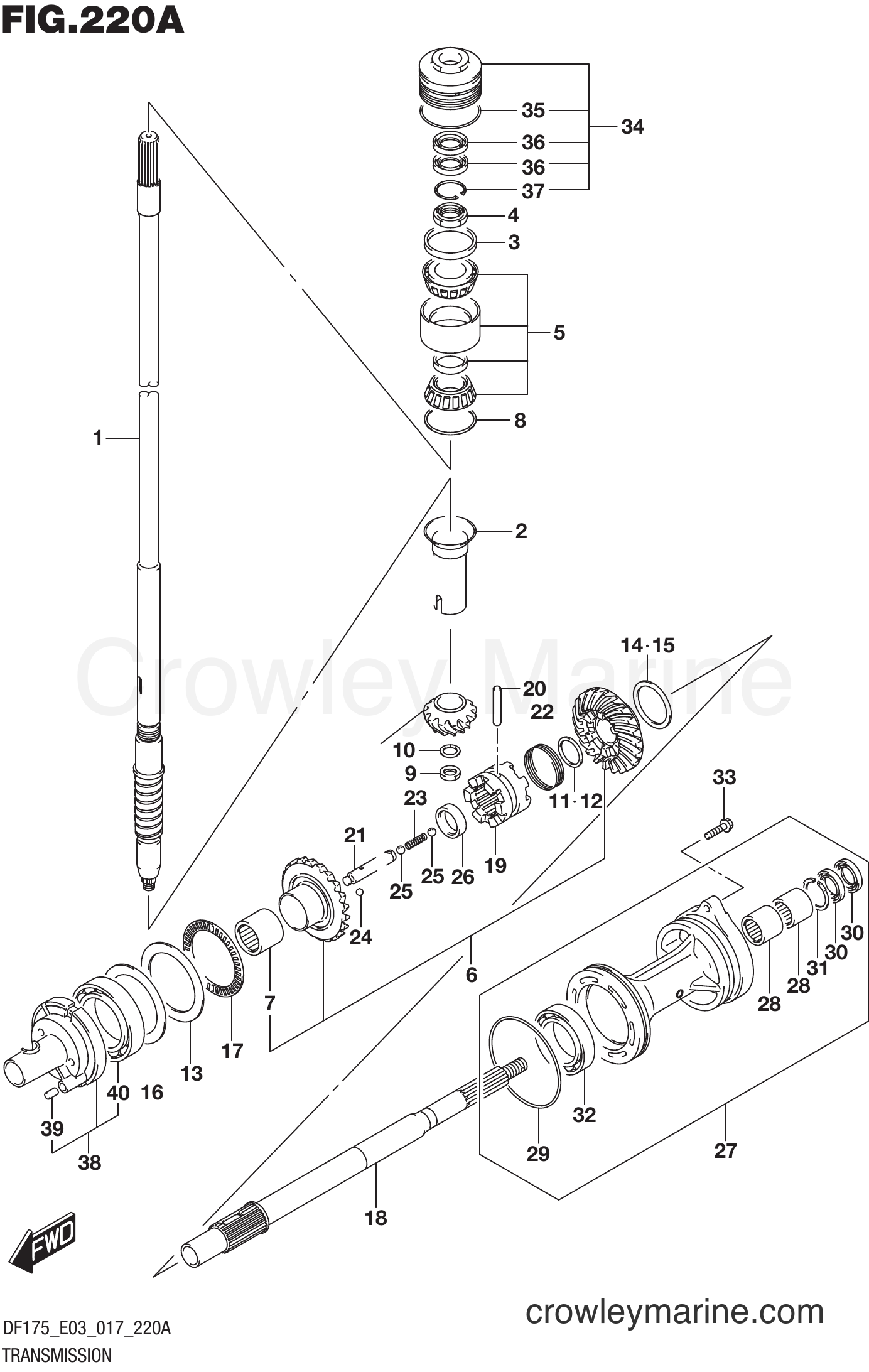

Serial Range Four-Stroke Outboard 175 - DF175T 710001~ TRANSMISSION (DF150T E03) diagram
1
Suzuki Marine
SHAFT,DRIVE(L)57110-96J41
Required: 1
SHAFT, DRIVE (L)
$553.79
You save $97.73
1
Suzuki Marine
SHAFT,DRIVE (X)57110-96J31
Required: 1
SHAFT, DRIVE (X)
$563.36
You save $99.42
2
Suzuki Marine
COLLAR,DRIVE SH57133-93J00
Required: 1
COLLAR, DRIVE SHAFT
$11.57
You save $2.04
3
Suzuki Marine
SPACER,DRIVE SF57134-93J00
Required: 1
SPACER, DRIVE SHAFT BEARING
$24.50
You save $4.32
$42.09
You save $7.43
5
Suzuki Marine
BEARING,32X66X409269-32002
Required: 1
BEARING (32X66X49)
Supersedes: 09269-32001
$193.91
You save $34.22
6
Suzuki Marine
PINION / GEAR S57300-96810
Required: 1
PINION & GEAR SET
$818.35
You save $144.42
7
Suzuki Marine
BEARING,25X32X209263-25067
Required: 1
.BEARING (25X32X26)
In stock
Only 1 remaining
$34.40
You save $6.07
8
Suzuki Marine
SHIM,DRIVE SHAF09181-60004
Required: 1
SHIM (T:0.45)
$4.58
You save $0.81
8
Suzuki Marine
SHIM,DRIVE SHAF09181-60013
Required: 1
SHIM (T:0.90)
$4.58
You save $0.81
8
Suzuki Marine
SHIM,DRIVE SHAF09181-60005
Required: 1
SHIM (T:0.50)
$4.58
You save $0.81
8
Suzuki Marine
SHIM,DRIVE SHAF09181-60006
Required: 1
SHIM (T:0.55)
$4.58
You save $0.81
8
Suzuki Marine
SHIM,DRIVE SHAF09181-60007
Required: 1
SHIM (T:0.60)
$4.58
You save $0.81
8
Suzuki Marine
SHIM,DRIVE SHAF09181-60008
Required: 1
SHIM (T:0.65)
$4.58
You save $0.81
8
Suzuki Marine
SHIM,DRIVE SHAF09181-60009
Required: 1
SHIM (T:0.70)
$4.58
You save $0.81
8
Suzuki Marine
SHIM,DRIVE SHAF09181-60010
Required: 1
SHIM (T:0.75)
$4.58
You save $0.81
8
Suzuki Marine
SHIM,DRIVE SHAF09181-60011
Required: 1
SHIM (T:0.80)
$4.58
You save $0.81
8
Suzuki Marine
SHIM,DRIVE SHAF09181-60012
Required: 1
SHIM (T:0.85)
$4.58
You save $0.81
$3.82
You save $0.68
$1.96
You save $0.35
11
Suzuki Marine
SHIM SET,REVERS57500-87861
Required: 1
SHIM SET, PROP SHAFT REV
$25.48
You save $4.50
12
Suzuki Marine
WASHER08211-30382
Required: 1
.WASHER (30X38X1.5)
$3.54
You save $0.62
12
Suzuki Marine
WASHER 30X38X2.09160-30043
Required: 1
.WASHER (30X38X2.7)
$5.24
You save $0.92
12
Suzuki Marine
WASHER 30X38X2.09160-30044
Required: 1
.WASHER (30X38X2.8)
$5.24
You save $0.92
12
Suzuki Marine
WASHER,T:1.709160-30036
Required: 1
.WASHER (30X38X1.7)
$4.39
You save $0.78
12
Suzuki Marine
WASHER,T:1.909160-30037
Required: 1
.WASHER (30X38X1.9)
$4.32
You save $0.76
12
Suzuki Marine
WASHER,T:2.109160-30038
Required: 1
.WASHER (30X38X2.1)
$4.39
You save $0.78
12
Suzuki Marine
THRUST WASHER08211-30384
Required: 1
.WASHER (30X38X2.2)
$3.80
You save $0.67
12
Suzuki Marine
WASHER,T:2.309160-30039
Required: 1
.WASHER (30X38X2.3)
$4.39
You save $0.78
12
Suzuki Marine
WASHER 30X38X2.09160-30041
Required: 1
.WASHER (30X38X2.4)
$5.24
You save $0.92
12
Suzuki Marine
THRUST WASHER08211-30385
Required: 1
.WASHER (30X38X2.5)
$3.80
You save $0.67
12
Suzuki Marine
WASHER 30X38X2.09160-30042
Required: 1
.WASHER (30X38X2.6)
$5.24
You save $0.92
13
Suzuki Marine
WASHER,THRUST F09160-75002
Required: 1
WASHER (75X100X2)
$38.45
You save $6.78
14
Suzuki Marine
SHIM SET,REVERS57500-87852
Required: 1
SHIM SET, REV GEAR
$31.39
You save $5.54
$2.63
You save $0.47
15
Suzuki Marine
SHIM,50X62X1.109181-50012
Required: 1
.SHIM (T:1.10)
$5.81
You save $1.02
15
Suzuki Marine
SHIM,50X62X1.209181-50005
Required: 1
.SHIM (T:1.20)
$5.73
You save $1.01
15
Suzuki Marine
SHIM,50X62X1.309181-50006
Required: 1
.SHIM (T:1.30)
$5.73
You save $1.01
15
Suzuki Marine
SHIM,50X62X1.409181-50007
Required: 1
.SHIM (T:1.40)
$5.73
You save $1.01
15
Suzuki Marine
SHIM,50X62X1.509181-50008
Required: 1
.SHIM (T:1.50)
$5.73
You save $1.01
15
Suzuki Marine
SHIM,50X62X1.609181-50009
Required: 1
.SHIM (T:1.60)
$5.81
You save $1.02
$2.88
You save $0.51
16
Suzuki Marine
SHIM,FORWARD GE09181-75018
Required: 1
SHIM (T:0.50)
$6.90
You save $1.22
16
Suzuki Marine
SHIM,FORWARD GE09181-75016
Required: 1
SHIM (T:0.95)
$7.03
You save $1.24
16
Suzuki Marine
SHIM,FORWARD GE09181-75011
Required: 1
SHIM (T:1.00)
$7.03
You save $1.24
16
Suzuki Marine
SHIM,FORWARD GE09181-75019
Required: 1
SHIM (T:0.55)
$10.29
You save $1.82
16
Suzuki Marine
SHIM,FORWARD GE09181-75012
Required: 1
SHIM (T:0.60)
$7.03
You save $1.24
16
Suzuki Marine
SHIM,FORWARD GE09181-75013
Required: 1
SHIM (T:0.65)
$7.16
You save $1.26
16
Suzuki Marine
SHIM,FORWARD GE09181-75008
Required: 1
SHIM (T:0.70)
$7.16
You save $1.26
16
Suzuki Marine
SHIM,FORWARD GE09181-75014
Required: 1
SHIM (T:0.75)
$7.03
You save $1.24
16
Suzuki Marine
SHIM,FORWARD GE09181-75009
Required: 1
SHIM (T:0.80)
$6.90
You save $1.22
16
Suzuki Marine
SHIM,FORWARD GE09181-75015
Required: 1
SHIM (T:0.85)
$7.03
You save $1.24
16
Suzuki Marine
SHIM,FORWARD GE09181-75010
Required: 1
SHIM (T:0.90)
$7.03
You save $1.24
17
Suzuki Marine
BEARING,THRUST09269-75002
Required: 1
BEARING (75X100X4)
$66.44
You save $11.72
18
Suzuki Marine
SHAFT COMP,PROP57610-93J00
Required: 1
SHAFT, PROPELLER
In stock
Only 1 remaining
$468.89
You save $82.74
19
Suzuki Marine
SHIFTER,CLUTCH57621-93J10
Required: 1
SHIFTER, CLUTCH DOG
$212.34
You save $37.47
20
Suzuki Marine
PIN09202-08007
Required: 1
PIN (8X49)
$4.22
You save $0.75
21
Suzuki Marine
PIN,CONNECTOR57631-93J00
Required: 1
PIN, CONNECTOR
$33.85
You save $5.97
$2.46
You save $0.44
$2.66
You save $0.47
$1.26
You save $0.22
$1.90
You save $0.34
26
Suzuki Marine
Fuel Cam Shaft Stopper09180-25082
Required: 1
SPACER (25X36.5X9.5)
$8.86
You save $1.56
27
Suzuki Marine
HOUSING COMP,PR56120-93J70-YAY
Required: 1
HOUSING, PROP SFT BRG (BLACK)
Supersedes: 56120-93J50-YAY
$322.24
You save $56.87
27
Suzuki Marine
HOUSING,PROPELL56120-93J50-Y5S
Required: 1
HOUSING, PROP SFT BRG (WHITE)
$367.77
You save $64.90
28
Suzuki Marine
BEARING(30X40X209263-30063
Required: 2
.BEARING (30X40X25)
$45.05
You save $7.95
29
Suzuki Marine
O-RING,PROP(ID:09280-00040
Required: 1
.O RING (D:3.1,ID:104.4)
$6.95
You save $1.23
30
Suzuki Marine
OIL SEAL 30X45X09282-30006
Required: 2
.OIL SEAL (30X45X6)
In stock
Only 2 remaining
$5.41
You save $0.95
$4.81
You save $0.85
$60.56
You save $10.69
33
Suzuki Marine
BOLT09116-08158
Required: 2
BOLT (8X35)
$7.18
You save $1.27
34
Suzuki Marine
HOUSING,DRIVE S56130-93J02
Required: 1
HOUSING, DRIVE SHAFT BRG
In stock
Only 1 remaining
$86.73
You save $15.31
35
Suzuki Marine
O-RING(ID:65.4,09280-66004
Required: 1
.O RING (D:3.1,ID:65.4)
$5.28
You save $0.93
36
Suzuki Marine
OIL SEAL 24X40X09282-24004
Required: 2
.OIL SEAL (24X40X7)
In stock
Only 1 remaining
$6.57
You save $1.16
$4.81
You save $0.85
38
Suzuki Marine
HOUSING COMP,FW56140-93J20
Required: 1
HOUSING, FWD GEAR BRG
Supersedes: 56140-93J01
$230.97
You save $40.76
$2.07
You save $0.36
40
Suzuki Marine
BEARING,FORWARD09263-50009
Required: 1
.BEARING (50X65X25)
$98.73
You save $17.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
