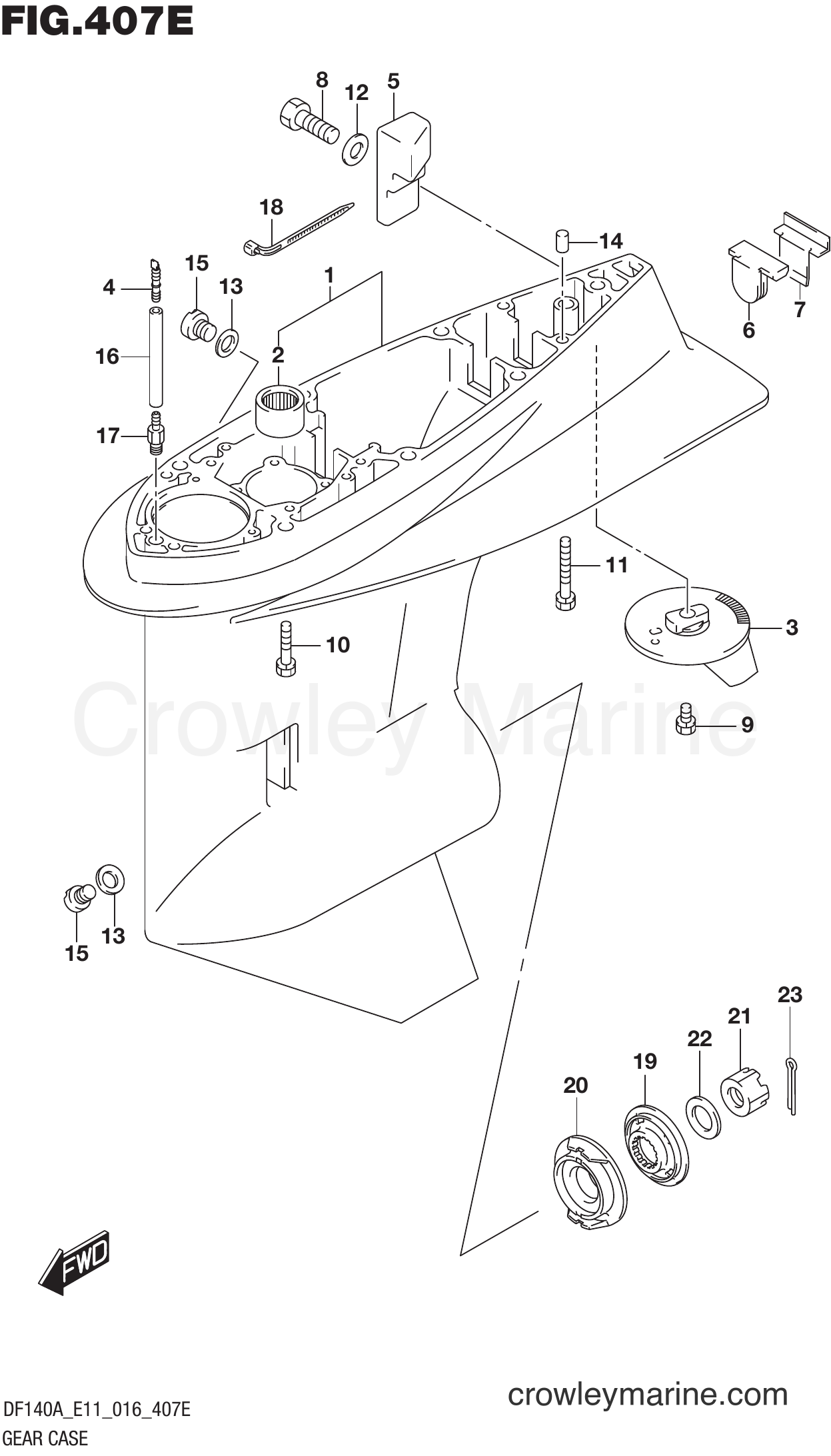

Serial Range Four-Stroke Outboard 140 - DF140AT 610001~ GEAR CASE (DF115AZ E40) diagram
1
Suzuki Marine
CASE,GEAR55110-92J01-Y5S
Required: 1
CASE, GEAR (BLACK)
Supersedes: 55110-92J00-0EP
$984.78
You save $173.79
1
Suzuki Marine
CASE ASSY,GEAR55110-92J00-Y5S
Required: 1
CASE, GEAR (WHITE)
$1191.82
You save $210.32
2
Suzuki Marine
RN 28.5X38X32 B09263-28016
Required: 1
.BEARING (28.6X38X31.8)
$92.04
You save $16.24
3
Suzuki Marine
TAB,TRIM55125-92J00-0EP
Required: 1
TAB, TRIM (BLACK)
$128.19
You save $22.62
3
Suzuki Marine
TAB,TRIM55125-92J00-Y5S
Required: 1
TAB, TRIM (WHITE)
In stock
Only 1 remaining
$143.10
You save $25.25
4
Suzuki Marine
Union09367-05003
Required: 1
UNION, SPEEDOMETER HOSE
$3.20
You save $0.56
5
Suzuki Marine
ANODE,GEAR CASE55321-90J01
Required: 1
ANODE, GEAR CASE
In stock
Only 4 remaining
$8.36
You save $1.47
6
Suzuki Marine
RUBBER,EXHAUST55332-87D11
Required: 1
RUBBER, EXHAUST SEAL
$5.85
You save $1.03
7
Suzuki Marine
PLATE,EXHAUST S55333-87D10
Required: 1
PLATE, EXHAUST SEAL
$10.33
You save $1.82
In stock
Only 2 remaining
$2.18
You save $0.38
In stock
Only 1 remaining
$7.57
You save $1.33
10
Suzuki Marine
BOLT,10X5509116-10150
Required: 6
BOLT (10X55)
In stock
Only 3 remaining
$16.23
You save $2.86
11
Suzuki Marine
BOLT09117-10039
Required: 1
BOLT (10X80)
In stock
Only 1 remaining
$10.59
You save $1.87
12
Suzuki Marine
WASHER09160-06085
Required: 1
WASHER (6.5X15X1)
$1.27
You save $0.23
13
Suzuki Marine
GASKET, DRAIN P09168-10022
Required: 2
GASKET (10X17X1.5)
In stock
5+ in stock
$1.50
You save $0.27
14
Suzuki Marine
PIN09202-08006
Required: 2
PIN (8X12)
$2.61
You save $0.46
15
Suzuki Marine
PLUG,DRAIN,10X709248-10008
Required: 2
PLUG (10X7.5)
In stock
Only 3 remaining
$6.71
You save $1.19
16
Suzuki Marine
Hose09355-40805-600
Required: 1
HOSE (4X8X600)
In stock
Only 1 remaining
$9.99
You save $1.76
$2.75
You save $0.49
18
Suzuki Marine
Clamp09407-10404
Required: 2
CLAMP (L:100)
$2.60
You save $0.46
19
Suzuki Marine
SPACER,PROPELLE57633-90J02
Required: 1
SPACER, PROPELLER
$57.18
You save $10.09
20
Suzuki Marine
STOPPER,PROPELL57635-92J10
Required: 1
STOPPER, PROPELLER BUSH
Supersedes: 57635-92J01
$78.19
You save $13.80
$9.75
You save $1.72
22
Suzuki Marine
WASHER09160-18028
Required: 1
WASHER (18.5X31X1)
$3.76
You save $0.66
23
Suzuki Marine
COTTER PIN,PROP09204-03003
Required: 1
COTTER PIN (D:3.6,L:25)
In stock
Only 3 remaining
$2.48
You save $0.44
24
Suzuki Marine
LU SEAL KIT DF125700-92J00
Required: 1
SEALING KIT, GEAR CASE
In stock
Only 1 remaining
$35.66
You save $6.29
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
