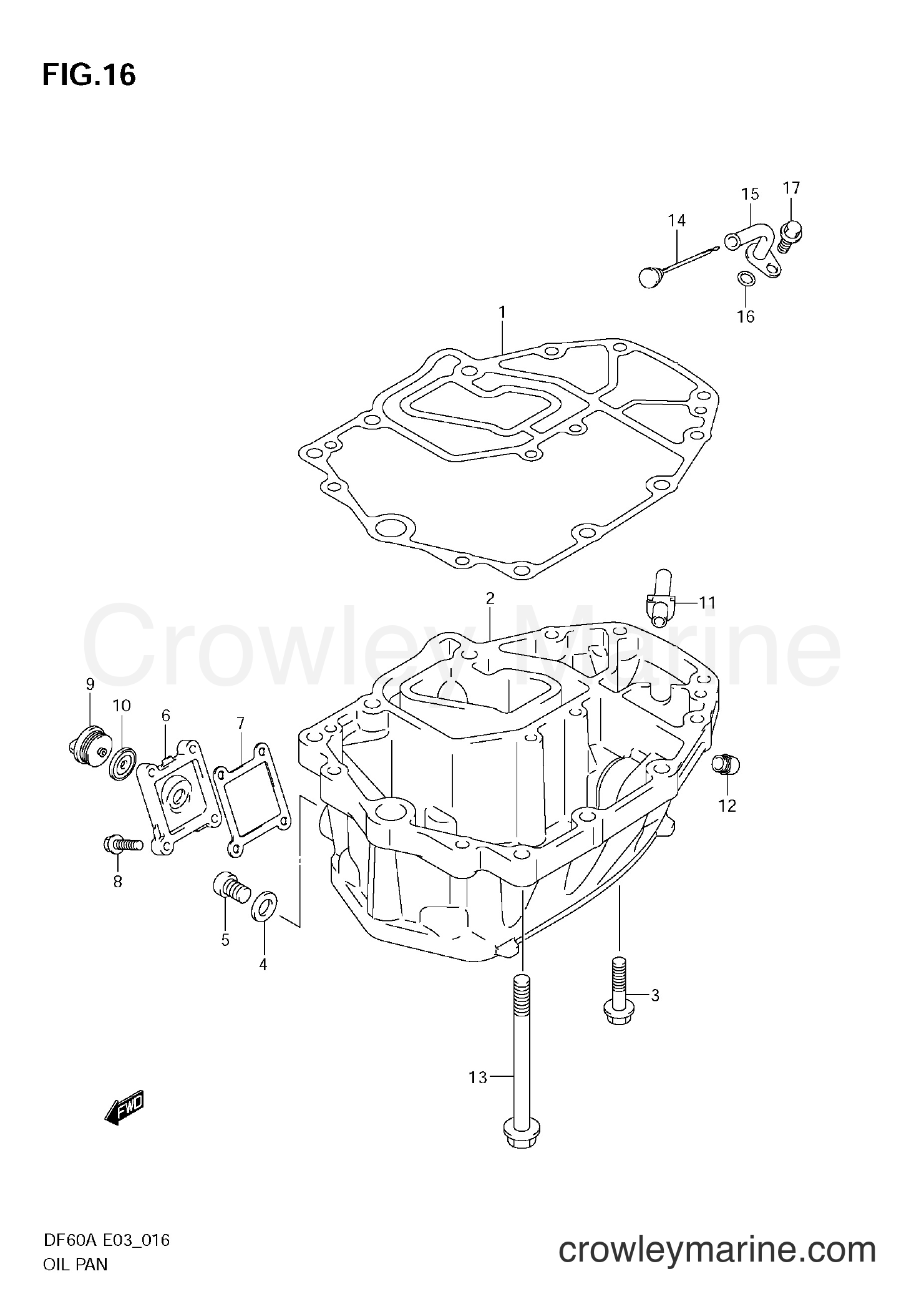

2011 Four-Stroke Outboard 60 - DF60A OIL PAN diagram
1
Suzuki Marine
Oil Pan Gasket11489-88L01
Required: 1
GASKET, OIL PAN
Supersedes: 11489-88L00
$31.49
You save $5.56
$575.25
You save $101.52
3
Suzuki Marine
BOLT,8X4009116-08128
Required: 6
BOLT, OIL PAN (8X40)
$3.88
You save $0.69
4
Suzuki Marine
GASKET 12.5X20X09168-12012
Required: 1
GASKET, OIL DRAIN
In stock
5+ in stock
$1.89
You save $0.33
5
Suzuki Marine
PLUG,OIL DRAIN09248-12009
Required: 1
PLUG, OIL DRAIN
In stock
Only 1 remaining
$5.55
You save $0.98
6
Suzuki Marine
COVER,WATER JAC11551-88L00-0EP
Required: 1
COVER, WATER JACKET OIL PAN
In stock
Only 1 remaining
$47.85
You save $8.44
7
Suzuki Marine
Oil Pan Gasket11552-88L00
Required: 1
GASKET, OIL PAN WTR JKT COV
$5.00
You save $0.88
8
Suzuki Marine
BOLT09116-06121
Required: 4
BOLT, OIL PAN WTR JKT COV W/WASHER (6X25)
In stock
5+ in stock
$2.78
You save $0.49
In stock
5+ in stock
$4.31
You save $0.76
10
Suzuki Marine
GASKET,WATER PL17914-93J01
Required: 1
GASKET, WATER PLUG
Supersedes: 17914-93J00
In stock
Only 1 remaining
$2.14
You save $0.38
11
Suzuki Marine
Obsolete Suzuki Part11543-88L00
Required: 1
SILENCER, EXHAUST
$5.36
You save $0.95
12
Suzuki Marine
PIPE,EXHAUST43112-94L01
Required: 1
PIPE, EXHAUST
Supersedes: 43112-99E00
In stock
Only 2 remaining
$5.89
You save $1.04
13
Suzuki Marine
BOLT,10X15009116-10124
Required: 6
BOLT, ENG W/WASHER (10X150)
$20.50
You save $3.62
14
Suzuki Marine
GAUGE,OIL LEVEL16910-88L00
Required: 1
GAUGE, OIL LEVEL
$15.74
You save $2.78
15
Suzuki Marine
GUIDE,OIL LEVEL16930-88L00
Required: 1
GUIDE, OIL LEVEL GAUGE
$12.73
You save $2.25
16
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-09008
Required: 1
O RING (D:1.9,ID:9.8)
$3.21
You save $0.57
In stock
Only 2 remaining
$2.37
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
