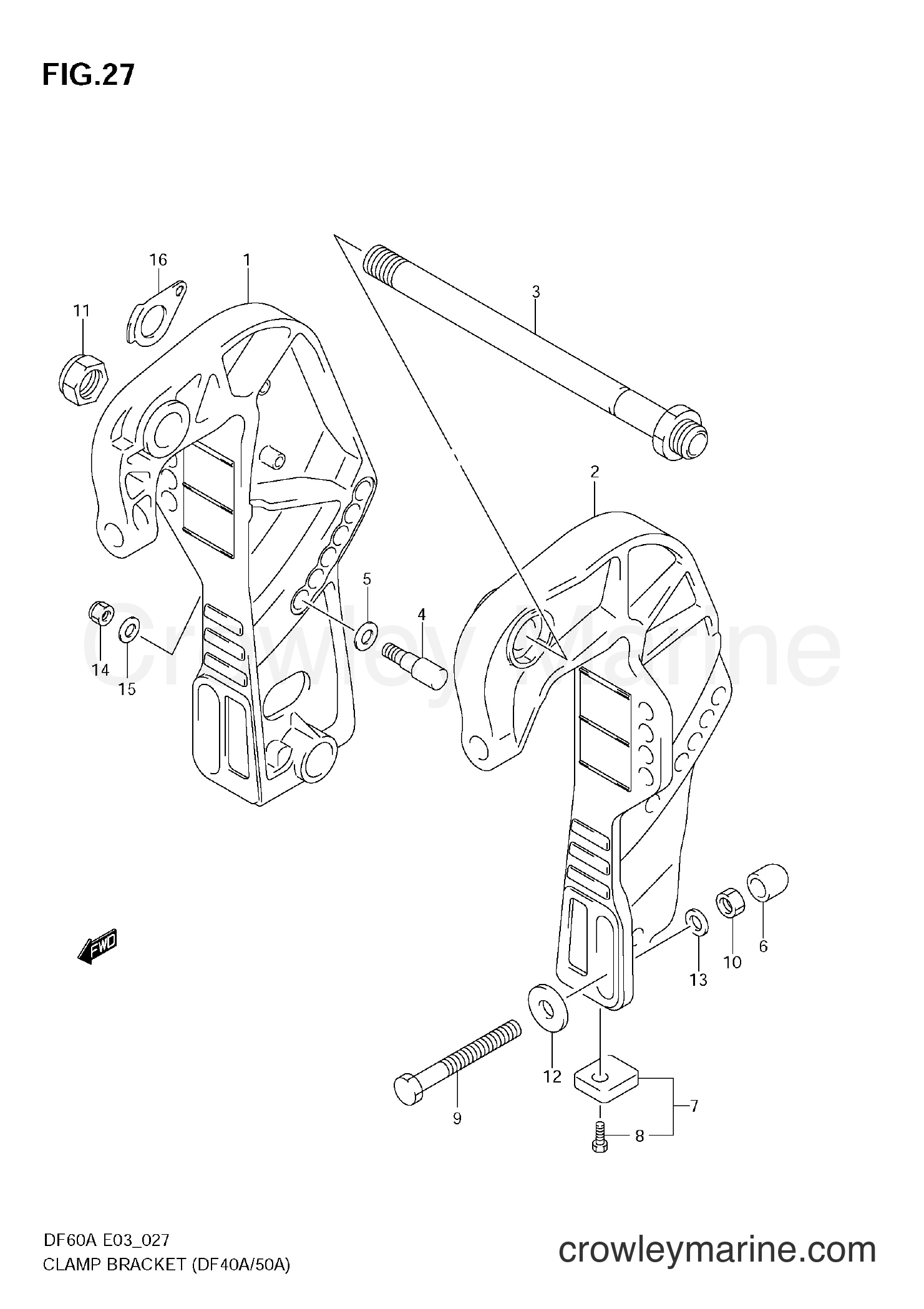

2010 Four-Stroke Outboard 50 - DF50A CLAMP BRACKET (DF40A/50A) diagram
1
Suzuki Marine
BRACKET,CLAMP S41111-89J21-0EP
Required: 1
BRACKET, CLAMP STBD (BLACK)
$278.60
You save $49.17
2
Suzuki Marine
BRACKET. CLAMP41121-89J15-0EP
Required: 1
BRACKET, CLAMP PORT (BLACK)
$278.60
You save $49.17
3
Suzuki Marine
SHAFT,CLAMP BRA41130-87J11
Required: 1
SHAFT, CLAMP BRACKET
Supersedes: 41130-87J10
$166.69
You save $29.42
4
Suzuki Marine
PIN,TILT LOCK45421-89J00
Required: 2
PIN, TILT LOCK
$23.43
You save $4.13
5
Suzuki Marine
WASHER09160-12066
Required: 2
WASHER (12.5X22X2.5)
$1.73
You save $0.43
6
Suzuki Marine
CAP TRANSOM BOL41153-94500
Required: 4
CAP, TRANSOM BOLT
$2.63
You save $0.66
7
Suzuki Marine
ZINC SET,PROTEC55320-95311
Required: 2
ZINC, PROTECTION
In stock
Only 3 remaining
$7.24
You save $1.81
8
Suzuki Marine
BOLT,6X1509116-06094
Required: 2
.BOLT, ZINC (6X15)
In stock
Only 1 remaining
$2.02
You save $0.51
9
Suzuki Marine
BOLT,12X100,PIT09100-12093
Required: 4
BOLT (12X100,PITCH:1.25)
$13.00
You save $2.29
9
Suzuki Marine
BOLT,12X115,PIT09100-12091
Required: 1
BOLT (12X115,PITCH:1.25)
$13.42
You save $2.37
10
Suzuki Marine
Nut09159-12014
Required: 4
NUT (M12,PITCH:1.25)
$4.83
You save $1.21
$24.99
You save $6.25
12
Suzuki Marine
WASHER09160-12044
Required: 4
WASHER (12.5X35X3.2)
$3.39
You save $0.85
13
Suzuki Marine
WASHER,12.5X22X09160-12110
Required: 4
WASHER (12.5X22X3.0)
$3.68
You save $0.92
14
Suzuki Marine
Nut09159-10050
Required: 2
NUT, TILT LOCK
$2.30
You save $0.58
15
Suzuki Marine
WASHER09160-10082
Required: 2
WASHER, TILT LOCK PIN
$1.57
You save $0.39
16
Suzuki Marine
WASHER,CLAMP BR41135-93J00
Required: 1
WASHER, CLAMP BRACKET SHAFT
$6.29
You save $1.11
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
