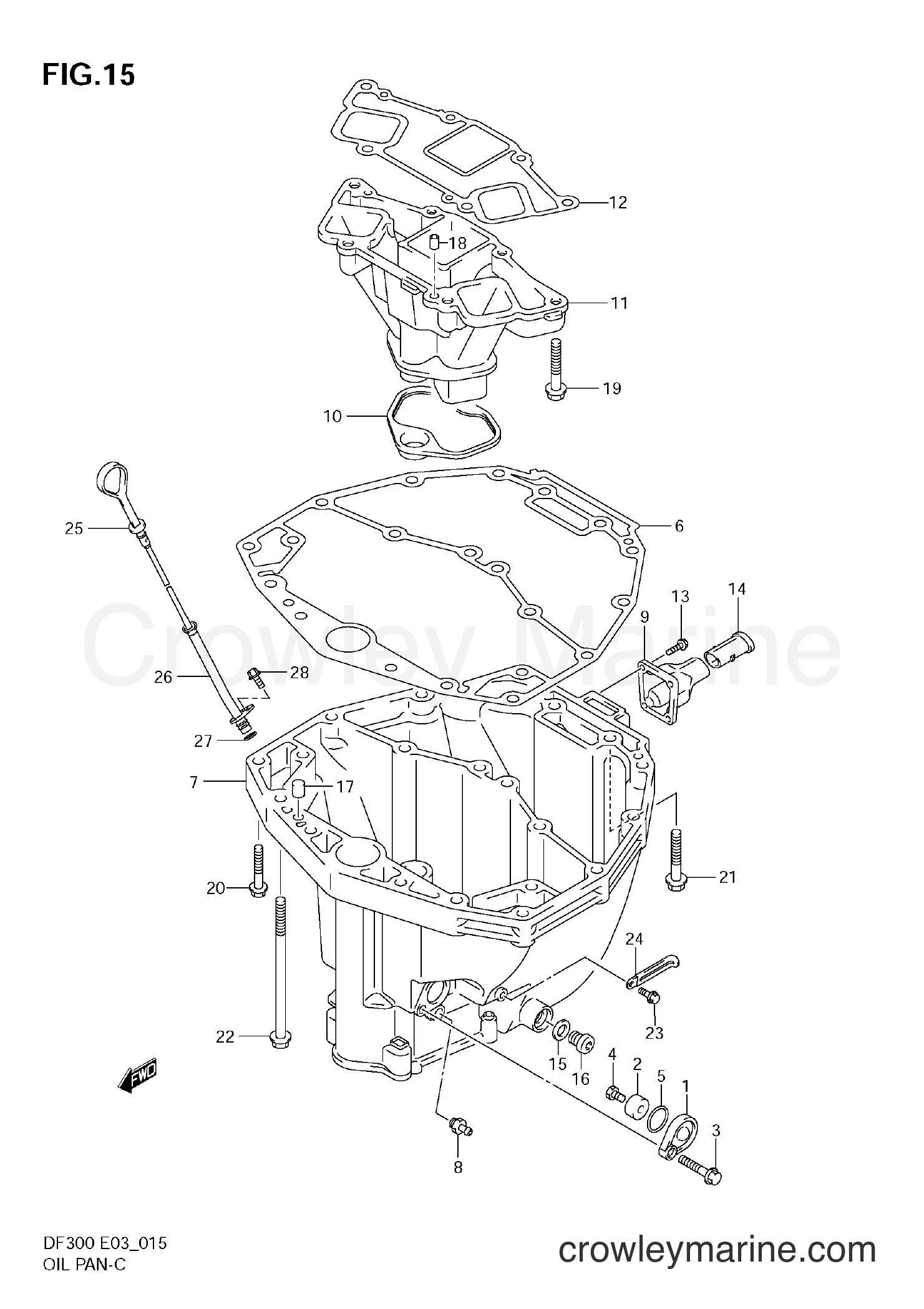

2008 Four-Stroke Outboard 300 - DF300Z OIL PAN diagram
1
Suzuki Marine
COVER,PROTCTION11261-93J00
Required: 1
COVER, PROTECTION ANODE
Supersedes: 11261-93J00-0EP
In stock
5+ in stock
$15.39
You save $2.72
2
Suzuki Marine
ANODE,PROTECTIO55321-87J01
Required: 1
ANODE, PROTECTION
Supersedes: 55321-87J00
In stock
5+ in stock
$6.49
You save $1.14
2
Suzuki Marine
MAGNESIUM ANODE55321-87J11
Required: 1
ANODE (MAGNESIUM)
Supersedes: 55321-87J10
In stock
Only 1 remaining
$11.46
You save $2.02
3
Suzuki Marine
BOLT29103-93J30
Required: 1
BOLT, ANODE COVER
$3.65
You save $0.65
In stock
5+ in stock
$3.05
You save $0.54
5
Suzuki Marine
O-RING,D:1.9,ID09280-22019
Required: 1
O RING, ANODE COVER
In stock
Only 2 remaining
$2.42
You save $0.43
6
Suzuki Marine
Oil Pan Gasket11489-93J00
Required: 1
GASKET, OIL PAN
$56.10
You save $9.90
7
Suzuki Marine
Oil Pan11501-93J03-0EP
Required: 1
PAN, OIL
Supersedes: 11501-93J02-0EP
$751.38
You save $132.60
8
Suzuki Marine
UNION,OIL PAN11591-93J10
Required: 1
UNION, OIL PAN
Supersedes: 11591-93J00
$2.27
You save $0.40
9
Suzuki Marine
PIPE,EXHAUST11541-93J00-0EP
Required: 1
PIPE, EXHAUST
$31.30
You save $5.52
10
Suzuki Marine
SEAL,EXHAUST TU14154-93J02
Required: 1
SEAL, EXHAUST TUBE
Supersedes: 14154-93J01
$5.71
You save $1.01
11
Suzuki Marine
Exhaust Tube14211-98J00
Required: 1
TUBE, EXHAUST
$234.57
You save $41.39
12
Suzuki Marine
GASKET,EXHAUST14212-93J00
Required: 1
GASKET, EXHAUST TUBE
$9.57
You save $1.69
13
Suzuki Marine
BOLT29116-93J00
Required: 4
BOLT, EXHAUST PIPE
$2.41
You save $0.42
14
Suzuki Marine
PIPE,EXHAUST RE11435-93J01
Required: 1
PIPE, EXHAUST RELEASE
Supersedes: 11435-93J00
$3.03
You save $0.54
15
Suzuki Marine
GASKET 12.5X20X09168-12012
Required: 1
GASKET, DRAIN (12.5X20X2.5)
In stock
5+ in stock
$1.89
You save $0.33
In stock
Only 1 remaining
$5.55
You save $0.98
17
Suzuki Marine
PIN09202-08006
Required: 2
PIN, OIL PAN DOWEL
$2.61
You save $0.46
18
Suzuki Marine
PIN09202-08006
Required: 2
PIN, EXHAUST TUBE DOWEL
$2.61
You save $0.46
19
Suzuki Marine
BOLT01550-1050A
Required: 4
BOLT, EXHAUST TUBE
$2.87
You save $0.51
20
Suzuki Marine
BOLT,8X4009116-08128
Required: 10
BOLT, OIL PAN NO, 1 (L:40)
$3.88
You save $0.69
21
Suzuki Marine
BOLT,10X5009116-10175
Required: 2
BOLT, OIL PAN NO, 2 (L:50)
Supersedes: 09116-10136
$6.52
You save $1.15
22
Suzuki Marine
BOLT,10X19509116-10146
Required: 4
BOLT, ENG SET NO, 3 (L:195)
$30.09
You save $5.31
23
Suzuki Marine
BOLT29103-93J00
Required: 1
BOLT, SPEEDOMETER HOSE CLAMP
In stock
Only 1 remaining
$1.93
You save $0.34
24
Suzuki Marine
Clamp29404-93J11
Required: 1
CLAMP, SPEEDOMETER HOSE
Supersedes: 29404-93J10
$1.48
You save $0.26
25
Suzuki Marine
GAUGE COMP,OIL16910-93J00
Required: 1
GAUGE, OIL LEVEL
$16.22
You save $2.86
26
Suzuki Marine
GUIDE COMP,OIL16930-93J00
Required: 1
GUIDE, OIL LEVEL GAUGE
$17.10
You save $3.02
27
Suzuki Marine
"O"-Ring/Seal (Swivel Bracket)09280-09008
Required: 1
O RING, GAUGE GUIDE
$3.21
You save $0.57
28
Suzuki Marine
BOLT01550-06127
Required: 1
BOLT, GAUGE GUIDE
In stock
Only 2 remaining
$2.37
You save $0.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
