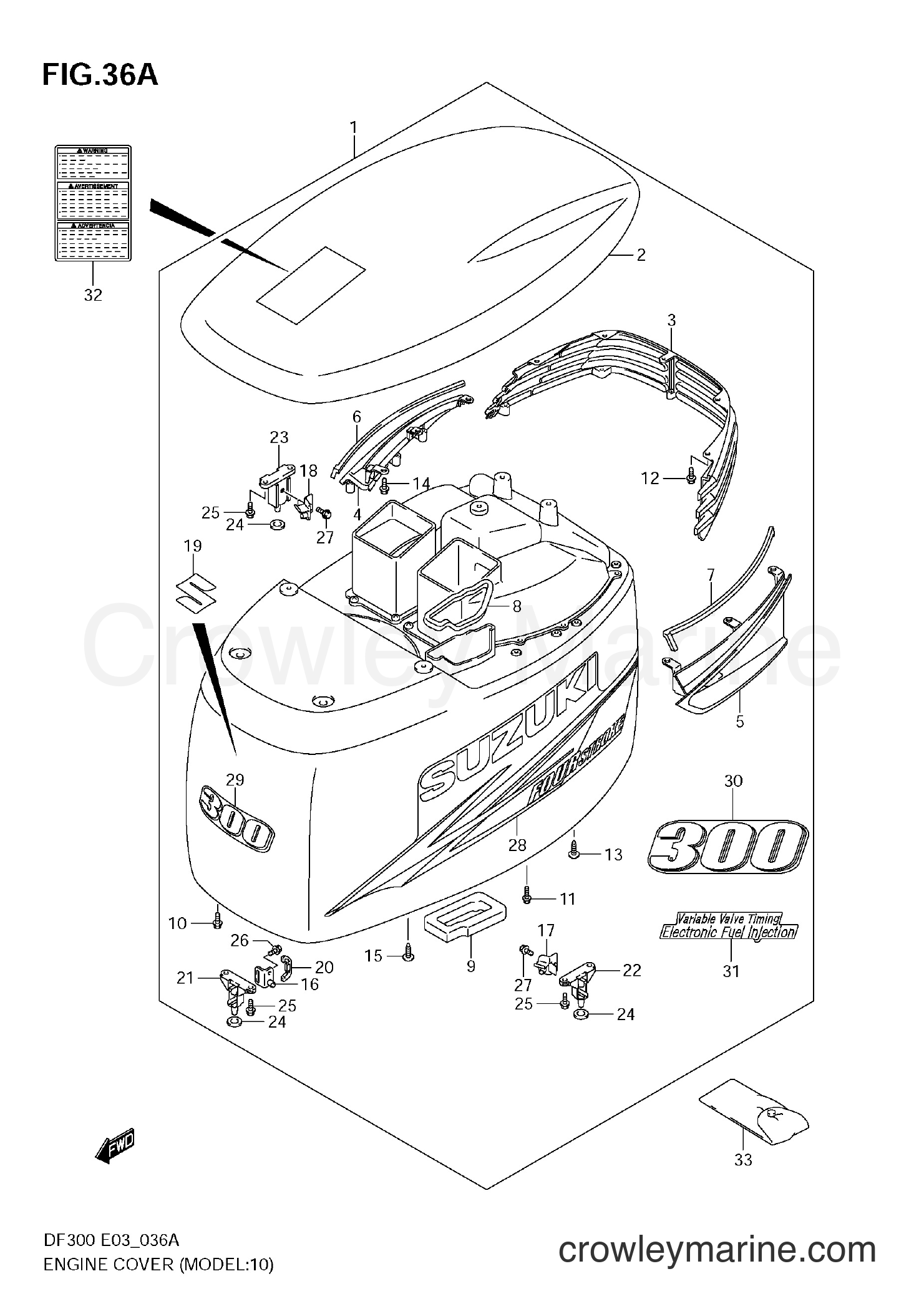

2009 Four-Stroke Outboard 300 - DF300T ENGINE COVER (MODEL:10~) diagram
1
Suzuki Marine
Supersedes to 61400-98Y60-0EP61400-98Y50-0EP
Required: 1
COVER SET, ENGINE (BLACK)
Supersedes: 61400-98Y43-0EP
$1844.55
You save $325.51
2
Suzuki Marine
Supersedes to 61431-98J03-0EP61431-98J02-0EP
Required: 1
.COVER, TOP
Supersedes: 61431-98J01-0EP
$306.34
You save $54.06
3
Suzuki Marine
LOUVER,AIR INTA61432-98J01
Required: 1
.LOUVER, AIR INTAKE
$62.53
You save $11.04
4
Suzuki Marine
GRIP,ENGINE UPP61433-98J01
Required: 1
.GRIP, UPPER COVER STBD
$68.51
You save $12.09
5
Suzuki Marine
GRIP,ENGINE UPP61434-98J02
Required: 1
.GRIP, UPPER COVER PORT
Supersedes: 61434-98J01
In stock
Only 1 remaining
$68.54
You save $12.10
6
Suzuki Marine
SEAL,GRIP STBD61439-98J01
Required: 1
.SEAL, GRIP STBD
Supersedes: 61439-98J00
$11.77
You save $2.08
7
Suzuki Marine
SEAL,GRIP PORT61439-98J11
Required: 1
.SEAL, GRIP PORT
Supersedes: 61439-98J10
In stock
Only 3 remaining
$11.77
You save $2.08
8
Suzuki Marine
Obsolete Suzuki Part61439-98J20
Required: 1
.SEAL, AIR VENT NO.2
$9.29
You save $1.64
9
Suzuki Marine
SEAL,AIR VENT N61476-98J00
Required: 1
.SEAL, AIR VENT NO.1
$5.55
You save $0.98
10
Suzuki Marine
BOLT01550-06167
Required: 4
.BOLT, ENGINE COVER TOP
$2.37
You save $0.42
11
Suzuki Marine
BOLT01550-06207
Required: 3
.BOLT, ENGINE COVER
In stock
5+ in stock
$2.37
You save $0.42
12
Suzuki Marine
BOLT01550-06167
Required: 5
.BOLT, LOUVER UPPER
$2.37
You save $0.42
13
Suzuki Marine
Screw (M8 X 40)03542-06169
Required: 5
.BOLT, LOUVER LOWER
In stock
5+ in stock
$2.03
You save $0.36
14
Suzuki Marine
BOLT01550-06167
Required: 6
.BOLT, HANDLE UPPER
$2.37
You save $0.42
15
Suzuki Marine
Screw (M8 X 40)03542-06169
Required: 6
.BOLT, HANDLE LOWER
In stock
5+ in stock
$2.03
You save $0.36
16
Suzuki Marine
FASTENER COMP(F61610-98J00
Required: 1
.FASTENER (FRONT)
$20.20
You save $3.56
17
Suzuki Marine
Obsolete Suzuki Part61610-98J30
Required: 1
.FASTENER (PORT)
$56.00
You save $9.88
18
Suzuki Marine
FASTENER,STBD61610-98J40
Required: 1
.FASTENER (STBD)
$59.53
You save $10.51
$22.93
You save $4.05
20
Suzuki Marine
Obsolete Suzuki Part61614-98J00
Required: 1
.PROTECTOR, FASTENER
$6.14
You save $1.08
21
Suzuki Marine
BRACKET,FASTNER61621-98J02
Required: 1
.BRACKET, FASTENER FRONT
Supersedes: 61621-98J01
$20.51
You save $3.62
22
Suzuki Marine
BRACKET,FASTENE61624-98J11
Required: 1
.BRACKET, FASTENER PORT
Supersedes: 61624-98J10
$20.51
You save $3.62
23
Suzuki Marine
BRACKET,FASTENE61625-98J11
Required: 1
.BRACKET, FASTENER STBD
Supersedes: 61625-98J10
$20.51
You save $3.62
24
Suzuki Marine
CUSHION,ENG COV61619-98J00
Required: 3
.CUSHION, ENG COV FASTENER
$5.58
You save $0.98
25
Suzuki Marine
BOLT 6X1601547-06167
Required: 6
.BOLT, FASTENER BRACKET
$1.69
You save $0.30
26
Suzuki Marine
BOLT01550-06127
Required: 1
.BOLT, ENG COV FASTENER
In stock
Only 2 remaining
$2.37
You save $0.42
27
Suzuki Marine
BOLT01550-06127
Required: 2
.BOLT, ENG COV FASTENER
In stock
Only 2 remaining
$2.37
You save $0.42
28
Suzuki Marine
STRIPE,ENGINE C61443-93J32
Required: 1
.STRIPE, ENGINE COVER STBD
Supersedes: 61443-93J31
$85.49
You save $15.09
28
Suzuki Marine
STRIPE,ENGINE C61453-93J32
Required: 1
.STRIPE, ENGINE COVER PORT
Supersedes: 61453-93J31
$85.49
You save $15.09
29
Suzuki Marine
MARK,EMBLEM FRO61422-98J12
Required: 1
.MARK, EMBLEM FRONT (300)
Supersedes: 61422-98J11
In stock
Only 1 remaining
$10.71
You save $1.89
30
Suzuki Marine
MARK,EMBLEM REA61435-98J12
Required: 1
.MARK, EMBLEM REAR (300)
Supersedes: 61435-98J11
In stock
Only 1 remaining
$13.99
You save $2.47
31
Suzuki Marine
DECAL,EFI & VVT61446-93J32
Required: 1
.DECAL, EFI & VVT
Supersedes: 61446-93J31
$10.51
You save $1.86
32
Suzuki Marine
LABEL,ENGINE CO61458-99E31
Required: 1
LABEL, ENGINE COVER
$11.22
You save $1.98
$39.55
You save $6.98
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
