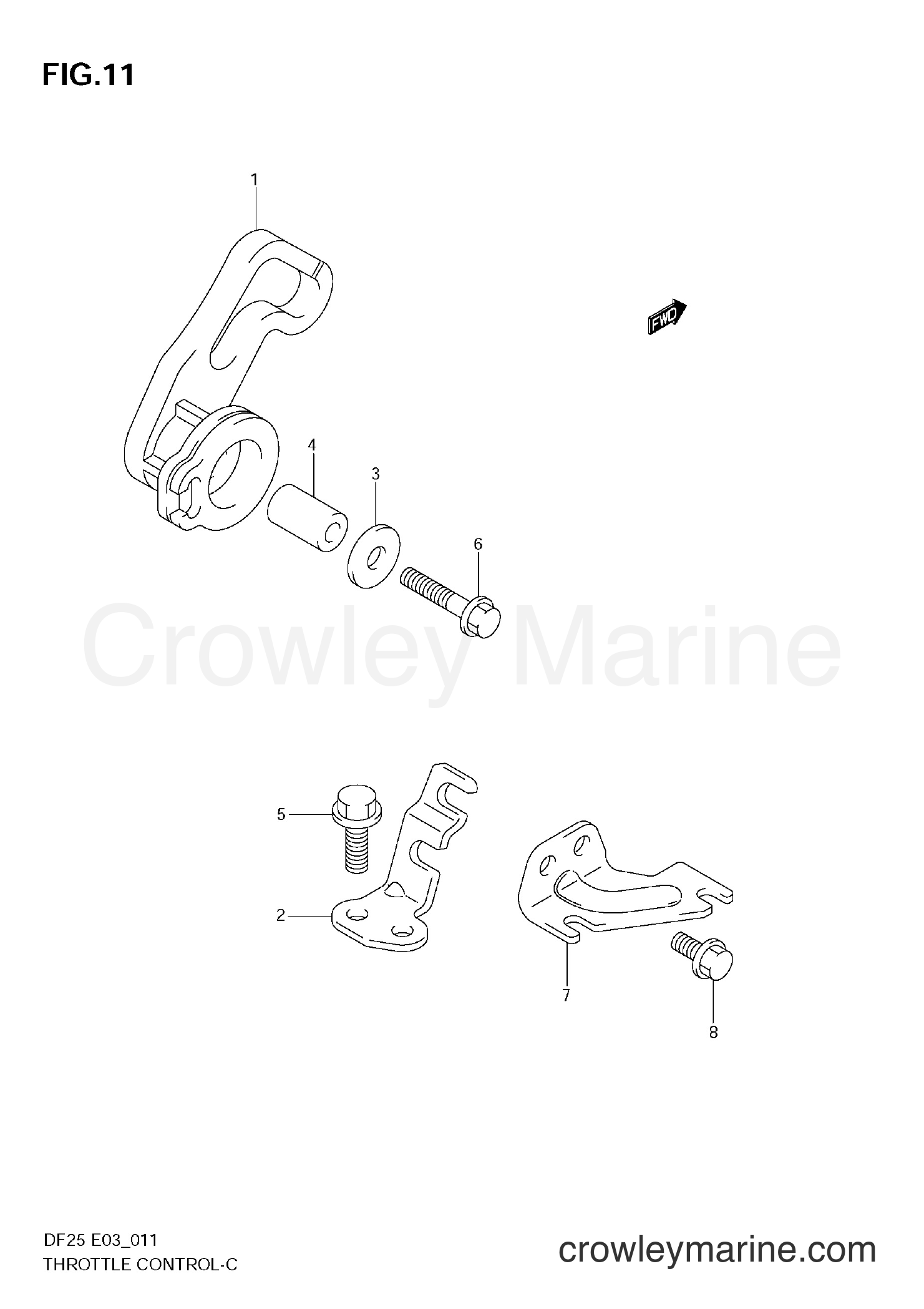

2007 Four-Stroke Outboard 25 - DF25 THROTTLE CONTROL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Suzuki Marine

Obsolete Suzuki Part19141-95J00

Required: 1

CAM, THROTTLE

~~$8.18~~

$6.95

You save $1.23

More details

Suzuki Marine

BRACKET,THROTTL19184-95J00

Required: 1

BRACKET, THROTTLE CABLE

~~$8.05~~

$6.84

You save $1.21

WASHER, THROTTLE DRUM (6.2X20X2)

~~$2.30~~

$1.96

You save $0.35

SPACER, THROTTLE DRUM (6.2X12.6X21)

~~$8.53~~

$7.25

You save $1.28

BOLT, THROTTLE CABLE BRACKET

~~$2.79~~

$2.37

You save $0.42

BOLT, THROTTLE DRUM

~~$3.43~~

$2.92

You save $0.51

More details

Suzuki Marine

Obsolete Suzuki Part18642-95J00

Required: 1

BRACKET, NSI CABLE

~~$5.89~~

$5.01

You save $0.88

BOLT, NSI CABLE BRACKET

~~$2.79~~

$2.37

You save $0.42

More details

Required: 1

REFER TO FIG.12(C- 5) FOR TYPE:R

Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
