2009 Four-Stroke Outboard 25 - DF25 OIL PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

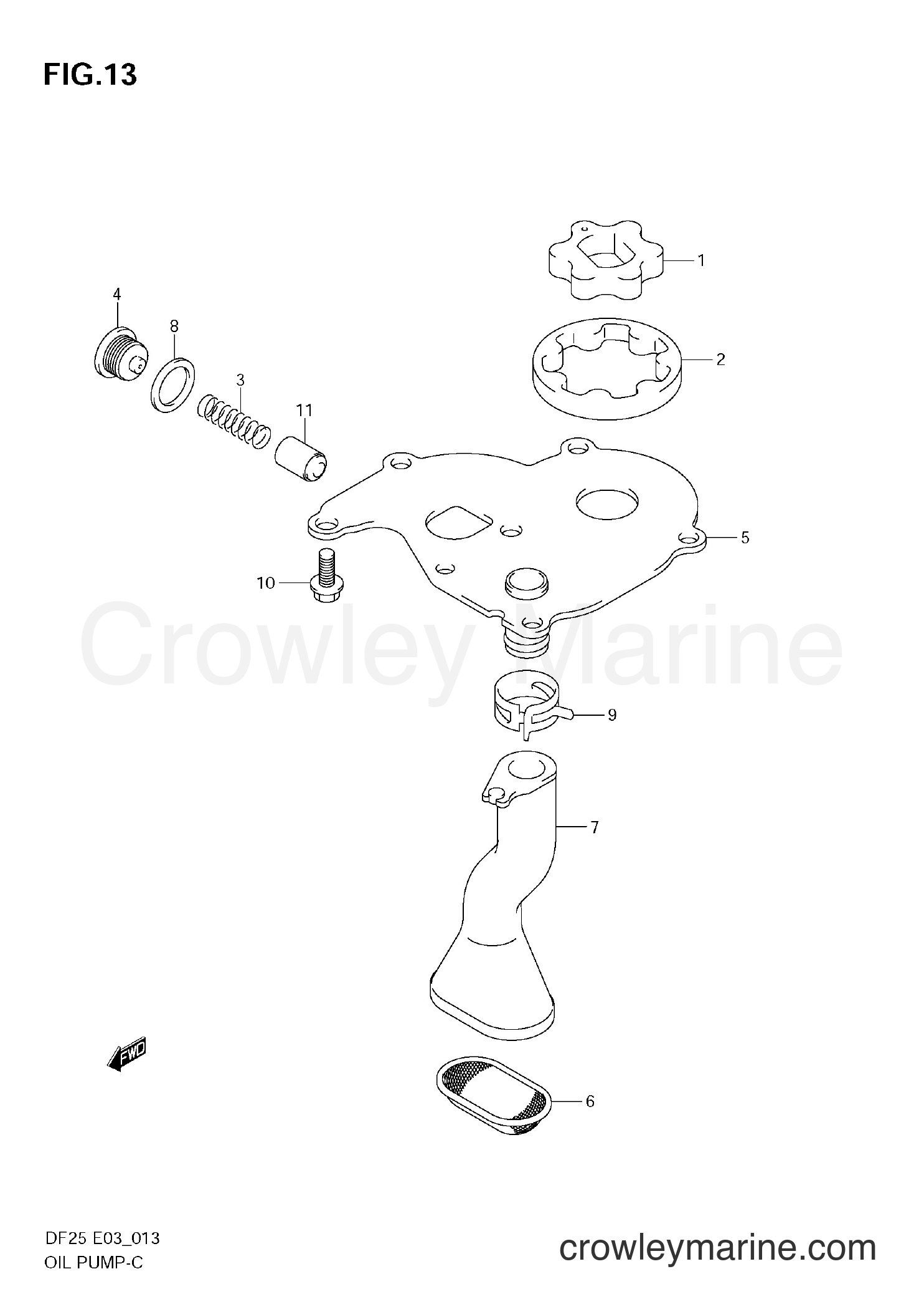

Suzuki Marine DF25 - OIL PUMP
Change View:
ROTOR,OIL PUMP
1
Suzuki Marine
ROTOR,OIL PUMP16131-95J00
Required: 1
ROTOR, OIL PUMP INNER
Cross Ship
Leaves in 2-5 days
$18.70
$15.89
You save $2.80
More details
ROTOR,OIL PUMP
2
Suzuki Marine
ROTOR,OIL PUMP16132-95J00
Required: 1
ROTOR, OIL PUMP OUTER
Cross Ship
Leaves in 2-5 days
$27.13
$23.06
You save $4.07
More details
SPRING,OIL RELI
3
Suzuki Marine
SPRING,OIL RELI16152-95J00
Required: 1
SPRING, OIL RELIEF
Cross Ship
Leaves in 2-5 days
$2.87
$2.44
You save $0.43
More details
Obsolete Suzuki Part
4
Suzuki Marine
Obsolete Suzuki Part16153-95J00
Required: 1
RETAINER, RELIEF VALVE SPRING
Cross Ship
Leaves in 2-5 days
$9.57
$8.13
You save $1.44
More details
PLATE COMP,OIL
5
Suzuki Marine
PLATE COMP,OIL16161-95J00
Required: 1
PLATE, OIL PUMP
Cross Ship
Leaves in 2-5 days
$38.50
$32.73
You save $5.77
More details
STRAINER COMP,O
6
Suzuki Marine
STRAINER COMP,O16520-95J00
Required: 1
STRAINER, OIL
Cross Ship
Leaves in 2-5 days
$10.88
$9.25
You save $1.63
More details
PIPE,OIL STRAIN
7
Suzuki Marine
PIPE,OIL STRAIN16522-95J01
Required: 1
PIPE, OIL STRAINER
Cross Ship
Leaves in 2-5 days
$13.78
$11.71
You save $2.07
More details
GASKET 16X22X2
8
Suzuki Marine
GASKET 16X22X209168-16002
Required: 1
GASKET, OIL RELIEF VALVE
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
9
Required: 1
CLIP, OIL STRAINER PIPE
Price unavailable
BOLT
10
Suzuki Marine
BOLT01550-0616A
Required: 7
BOLT, OIL PUMP PLATE
Cross Ship
Leaves in 2-5 days
$2.37
$2.01
You save $0.36
More details
VALVE,OIL PUMP
11
Suzuki Marine
VALVE,OIL PUMP16151-95J00
Required: 1
VALVE, OIL PUMP RELIEF
Cross Ship
Leaves in 2-5 days
$12.30
$10.45
You save $1.85
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
