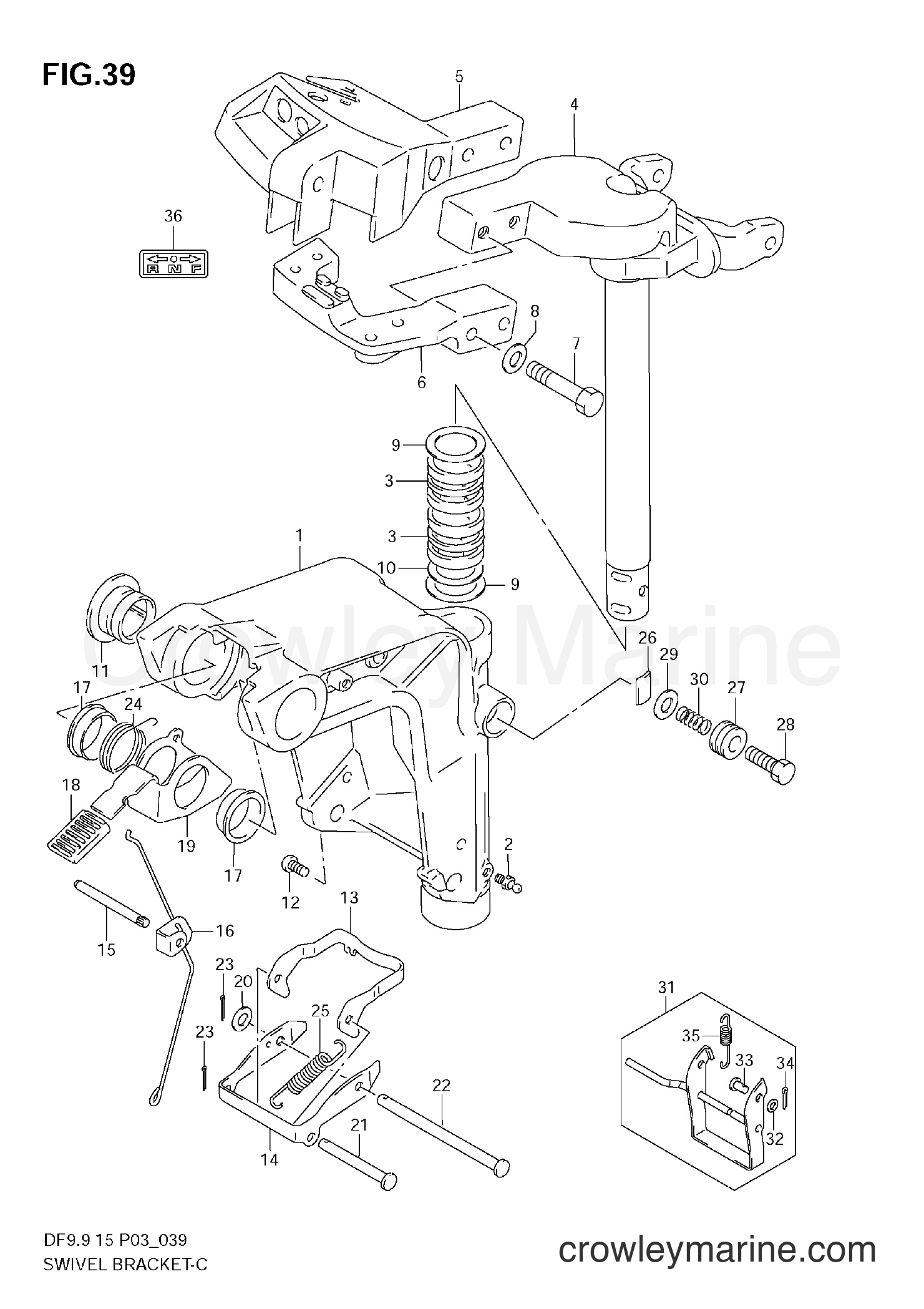

2004 Four-Stroke Outboard 15 - DF15 SWIVEL BRACKET diagram
1
Suzuki Marine
Swivel Bracket43111-93933-0EP
Required: 1
BRACKET, SWIVEL
Supersedes: 43111-93931-0EP
$316.76
You save $55.90
2
Suzuki Marine
Grease Nipple22511-99011
Required: 3
NIPPLE
Supersedes: 22511-99010
In stock
5+ in stock
$2.98
You save $0.75
-50%
3
Suzuki Marine
BUSH,STEERING43711-99J00
Required: 2
BUSH, STEERING
Supersedes: 43711-93901
$8.07
You save $8.07
4
Suzuki Marine
Supersedes to 43750-93E23-0EP43750-93E22-0EP
Required: 1
BRACKET, STEERING
Supersedes: 43750-93E21-0EP
$152.88
You save $26.98
$152.88
You save $26.98
5
Suzuki Marine
Handle BRACKET43761-93E11-0EP
Required: 1
BRACKET, HANDLE
$167.46
You save $29.55
6
Suzuki Marine
ATTACHMENT,STEE43755-93E02-0EP
Required: 1
ATTACHMENT, STEERING BRKT
$146.72
You save $25.89
$2.58
You save $0.45
8
Suzuki Marine
WASHER09160-08082
Required: 2
WASHER (8.5X16X1.2)
$1.58
You save $0.40
9
Suzuki Marine
WASHER(27.5X47X09160-27013
Required: 2
WASHER (27.5X47X2.0)
Supersedes: 09160-27009
$3.85
You save $0.68
10
Suzuki Marine
O-Ring09280-27004
Required: 1
O RING (D:3.1 ID:26.2)
$2.00
You save $0.35
11
Suzuki Marine
BUSH,SWIVEL BRA43211-87JL0
Required: 2
BUSH, SWIVEL SHAFT
Supersedes: 43211-94401
$31.57
You save $5.57
$1.88
You save $0.47
13
Suzuki Marine
ARM,REVERSE LOC45231-90L00
Required: 1
ARM, REVERSE LOCK
Supersedes: 45231-93901
$7.35
You save $1.30
14
Suzuki Marine
LINK,REVERSE LO45241-90L00
Required: 1
LINK, REVERSE LOCK ARM
Supersedes: 45241-93901
$7.18
You save $1.27
15
Suzuki Marine
PIN,TILT LOCK S41225-94502
Required: 1
PIN, RELEASE ARM
Supersedes: 41225-94501
$4.79
You save $0.85
$11.71
You save $2.07
17
Suzuki Marine
BUSH,RELEASE LE59315-94J00
Required: 2
BUSH
Supersedes: 09306-22006
$1.76
You save $0.31
18
Suzuki Marine
RUBBER,RELEASE45255-93001
Required: 1
RUBBER, RELEASE LEVER
$3.97
You save $0.70
19
Suzuki Marine
LEVER,RELEASE45261-92L00
Required: 1
LEVER, RELEASE
Supersedes: 45261-94400
$7.96
You save $1.40
In stock
Only 2 remaining
$1.38
You save $0.35
$2.83
You save $0.50
$7.93
You save $1.40
23
Suzuki Marine
PIN09204-01002
Required: 2
PIN, COTTER
Supersedes: 45247-94J00
In stock
Only 4 remaining
$1.51
You save $0.38
$4.39
You save $0.78
25
Suzuki Marine
SPRING,REV LOCK45212-94J01
Required: 2
SPRING
Supersedes: 45212-93E00
$4.97
You save $0.88
26
Suzuki Marine
PLATE,STEERING43411-939L0
Required: 1
ADJUSTER, STEERING
Supersedes: 43411-93900
$3.13
You save $0.55
27
Suzuki Marine
STEERING COVER43412-93901
Required: 1
COVER, STEERING ADJUST
Supersedes: 43412-94J00
$2.46
You save $0.43
28
Suzuki Marine
BOLT09100-08232
Required: 1
BOLT (8X30)
In stock
Only 1 remaining
$3.37
You save $0.60
29
Suzuki Marine
WASHER09160-08082
Required: 1
WASHER (8.5X16X1.2)
$1.58
You save $0.40
30
Suzuki Marine
SPRING,STEERING29440-93J00
Required: 1
SPRING
Supersedes: 43419-94J00
$2.11
You save $0.37
31
Suzuki Marine
SHALLOW DRIVE A45700-93E01
Required: 1
SHALLOW WATER DRIVE ASSY
Supersedes: 45700-93E00
$56.19
You save $9.92
32
Suzuki Marine
WASHER09160-06082
Required: 2
.WASHER (6.5X13X1.0)
In stock
Only 2 remaining
$1.38
You save $0.35
33
Suzuki Marine
SHAFT,SHALLOW D09200-06068
Required: 2
.SHAFT, SHALLOW DRIVE ARM
$4.26
You save $0.75
$1.24
You save $0.31
$7.80
You save $1.38
36
Suzuki Marine
MARK,CLUTCH SH21131-94J00-YAY
Required: 1
MARK, CLUTCH SHIFT
Supersedes: 21131-96010
$1.29
You save $0.32
37
Required: 1
REFER TO FIG.40(F- 7) FOR MODEL:05~ REFER TO FIG.41(F- 9) FOR TYPE:T/TH
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
