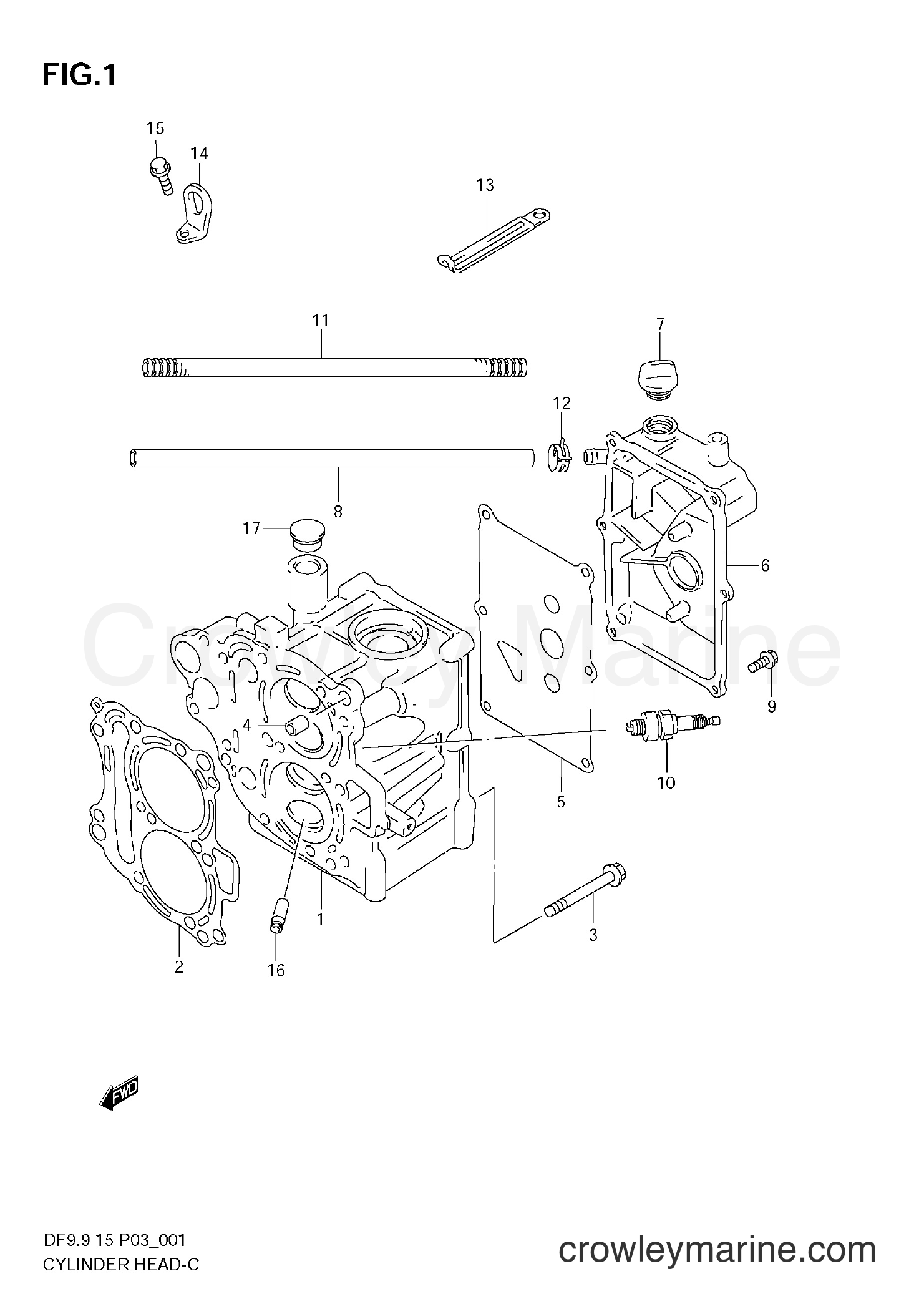

2005 Four-Stroke Outboard 9.9 - DF9.9 CYLINDER HEAD diagram
$606.81
You save $107.08
2
Suzuki Marine
CYLINDER GASKET11141-93E20
Required: 1
GASKET, CYLINDER HEAD
$22.70
You save $4.01
$3.90
You save $0.69
$1.83
You save $0.32
5
Suzuki Marine
CYLINDER GASKET11162-93E01
Required: 1
GASKET, CYLINDER HEAD COVER
$11.97
You save $2.11
6
Suzuki Marine
COVER,CYLINDER11170-93E00-0EP
Required: 1
COVER, CYLINDER HEAD
$92.70
You save $16.36
7
Suzuki Marine
PLUG SET09200-20811
Required: 1
CAP, OIL FILLER
Supersedes: 09200-20810
$4.17
You save $0.74
8
Suzuki Marine
HOSE,BREATHER(L11196-94J00-320
Required: 1
HOSE, BREATHER
$5.58
You save $0.98
9
Suzuki Marine
BOLT01550-06167
Required: 6
BOLT (6X16)
Supersedes: 09103-06186
$2.37
You save $0.42
10
Suzuki Marine
SPARK PLUG DCPR09482-00446
Required: 2
PLUG, SPARK (DCPR6E)
In stock
Only 1 remaining
$3.26
You save $0.58
11
Suzuki Marine
Obsolete Suzuki Part16919-94J20-280
Required: 1
PROTECTOR, BREATHER HOSE
$1.84
You save $0.33
$2.31
You save $0.41
13
Suzuki Marine
CLAMP09404-08212
Required: 1
CLAMP
Supersedes: 09404-08207
$1.34
You save $0.24
14
Suzuki Marine
HOOK,ENGINE11291-91B50
Required: 1
HOOK, ENGINE
$8.77
You save $1.55
In stock
5+ in stock
$2.79
You save $0.49
16
Suzuki Marine
GUIDE,VALVE(OS:11115-93E00-001
Required: 4
GUIDE, VALVE (OS:0.30)
$22.42
You save $3.96
17
Suzuki Marine
Cap09250-10006
Required: 1
PLUG, OIL LEVEL GAUGE HOLE
$2.13
You save $0.38
18
Required: 1
REFER TO FIG.2(B- 3) FOR MODEL:05~
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
