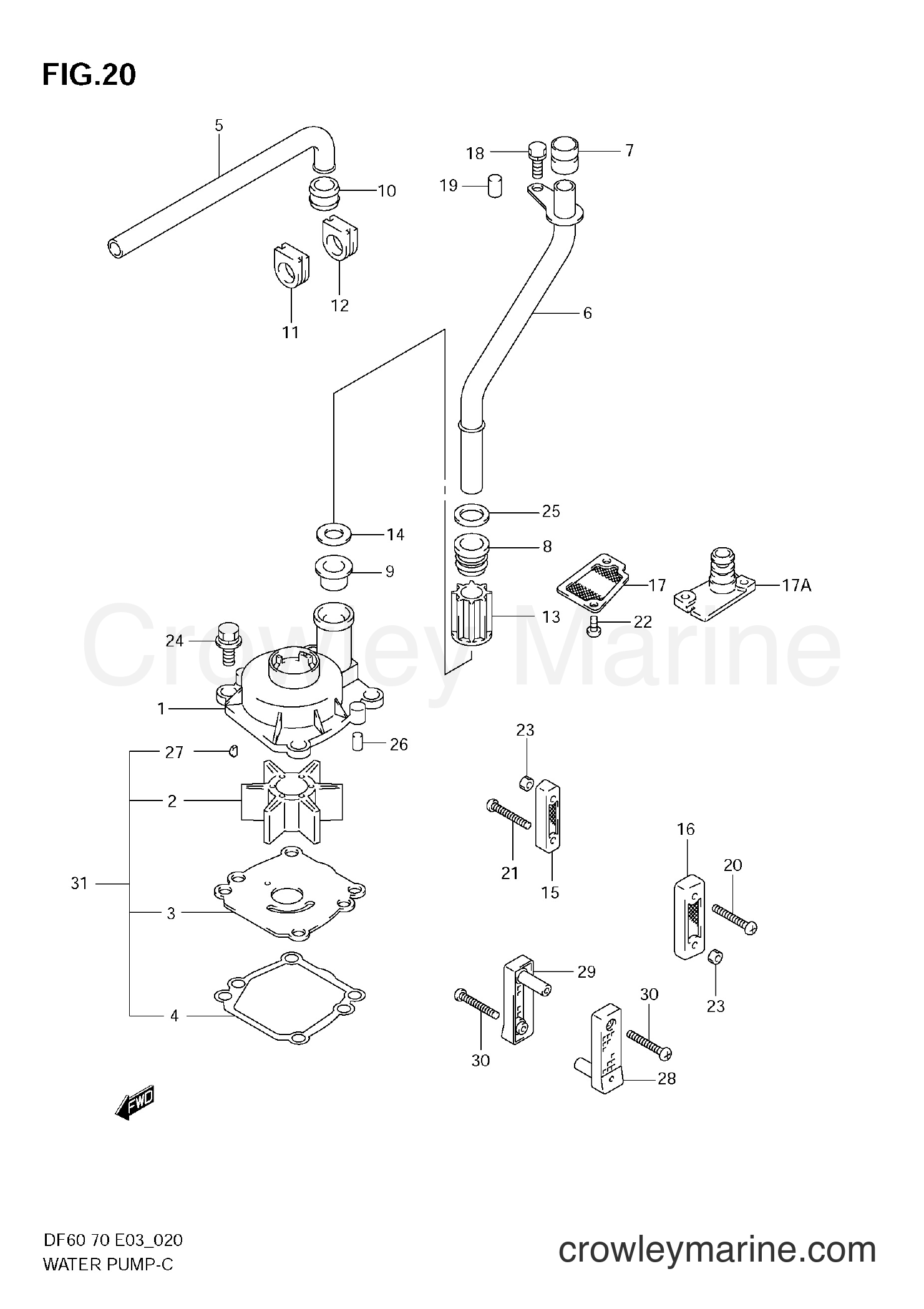

2005 Four-Stroke Outboard 70 - DF70 WATER PUMP diagram
1
Suzuki Marine
WATER PUMP CASE17400-99821
Required: 1
CASE, WATER PUMP
Supersedes: 17411-87E02
In stock
Only 1 remaining
$108.95
You save $27.18
2
Suzuki Marine
IMPELLER,WATER17461-87E12
Required: 1
IMPELLER, WATER PUMP
Supersedes: 17461-87E11
In stock
Only 2 remaining
$45.04
You save $11.26
3
Suzuki Marine
PANEL,PUMP CASE17471-92J00
Required: 1
PANEL, PUMP CASE UNDER
Supersedes: 17471-87E01
In stock
Only 1 remaining
$10.55
You save $2.64
4
Suzuki Marine
GASKET,PUMP CAS17472-87E10
Required: 1
GASKET, PUMP CASE
In stock
Only 2 remaining
$5.39
You save $1.35
5
Suzuki Marine
Obsolete Suzuki Part17521-87E01
Required: 1
TUBE, WATER SUB
$20.62
You save $3.64
6
Suzuki Marine
Water Tube17560-99E01
Required: 1
TUBE, WATER (L)
Supersedes: 17560-99E00
$47.63
You save $8.41
6
Suzuki Marine
Obsolete Suzuki Part17560-99E10
Required: 1
TUBE, WATER (X)
$21.41
You save $3.78
7
Suzuki Marine
BUSH,WATER TUBE17562-87D01
Required: 1
BUSH, WATER TUBE UPPER
Supersedes: 17562-87D00
In stock
Only 3 remaining
$6.85
You save $1.71
8
Suzuki Marine
BUSH,WATER TUBE17563-87D01
Required: 1
BUSH, WATER TUBE LOWER
Supersedes: 17563-87D00
In stock
Only 2 remaining
$6.24
You save $1.56
9
Suzuki Marine
BUSH,WATER PUMP17564-87D00
Required: 1
BUSH, WATER PUMP CASE
In stock
Only 2 remaining
$10.50
You save $2.62
10
Suzuki Marine
BUSH,SUB WATER17565-87D02
Required: 1
BUSH, SUB WATER TUBE
Supersedes: 17565-87D01
$5.91
You save $1.04
11
Suzuki Marine
GROMMET17566-87D02
Required: 1
GROMMET, SUB WATER TUBE
Supersedes: 17566-87D00
In stock
Only 2 remaining
$4.68
You save $0.83
$4.08
You save $0.72
13
Suzuki Marine
SPACER WATER TU17611-87D00
Required: 1
SPACER, WATER TUBE UPPER (X)
$4.80
You save $0.85
14
Suzuki Marine
SPACER,WATER TU17612-87D01
Required: 1
SPACER, WATER TUBE
Supersedes: 17612-87D00
In stock
Only 1 remaining
$2.04
You save $0.51
15
Suzuki Marine
FILTER,WATER PO17631-87E00
Required: 1
FILTER, WATER PORT
$6.32
You save $1.12
16
Suzuki Marine
FILTER,WATER ST17632-87E00
Required: 1
FILTER, WATER STBD
$6.44
You save $1.14
17
Suzuki Marine
PLUG,SUB WATER17635-90J00
Required: 1
PLUG, SUB WATER TUBE
$5.13
You save $0.90
17
Suzuki Marine
FILTER,WATER SU17635-87E00
Required: 1
FILTER, WATER SUB
$4.46
You save $1.12
$2.41
You save $0.43
19
Suzuki Marine
PIN(7X10)09202-07006
Required: 1
PIN
Supersedes: 09202-07001
In stock
Only 1 remaining
$1.29
You save $0.23
20
Suzuki Marine
SCREW,4X3509125-04018-XC0
Required: 1
SCREW (4X35)
Supersedes: 09125-04018
$1.93
You save $0.34
21
Suzuki Marine
SCREW,4X3009125-04023
Required: 1
SCREW (4X30)
$2.07
You save $0.36
In stock
Only 1 remaining
$1.62
You save $0.40
$2.22
You save $0.55
24
Suzuki Marine
BOLT,8X2509117-08110
Required: 4
BOLT (8X25)
Supersedes: 09117-08057
In stock
Only 1 remaining
$4.83
You save $1.21
25
Suzuki Marine
WASHER09161-16008
Required: 1
WASHER (15.8X26X1.0)
In stock
Only 1 remaining
$2.23
You save $0.56
$1.84
You save $0.46
$5.78
You save $1.44
28
Suzuki Marine
FILTER, WATER P17631-90J00
Required: 1
FILTER, WATER PORT
In stock
Only 1 remaining
$8.19
You save $2.05
29
Suzuki Marine
FILTER, WATER S17632-90J00
Required: 1
FILTER, WATER STBD
In stock
Only 1 remaining
$8.19
You save $2.05
30
Suzuki Marine
SCREW 4X3003112-04309
Required: 2
SCREW
Supersedes: 03112-04303
$1.68
You save $0.42
In stock
Only 3 remaining
$2.11
You save $0.53
31
Suzuki Marine
W.P.KITDF60/7017400-87E04
Required: 1
KIT, WATER PUMP REPAIR
Supersedes: 17400-87E03
In stock
Only 5 remaining
$49.81
You save $12.45
32
Required: 1
REFER TO FIG.20A(D- 4) FOR MODEL:08~09
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
