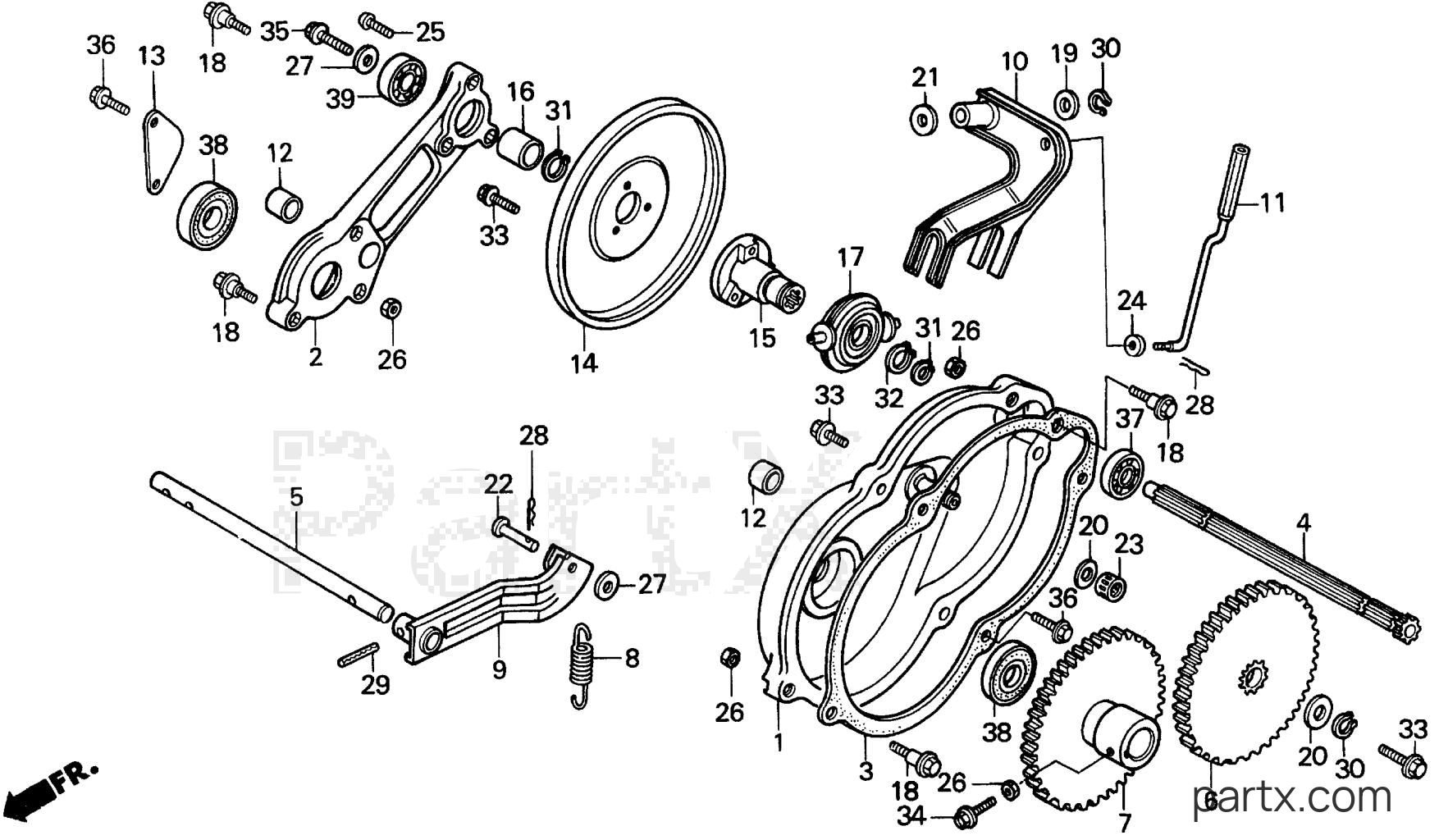

All Years Snowblower HS - HS80K1 TA FRICTION DISK diagram
001
Required: 1
CASE, L. TRANSMISSION (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
CASE, R. TRANSMISSION
N
Price unavailable
003
Required: 1
GASKET, TRANSMISSION (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
SHAFT, FRICTION DISK (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
SHAFT, DISK HOLDER (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
GEAR, COUNTER (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
GEAR, FINAL (NOT AVAILABLE)
N
Price unavailable
008
Required: 1
SPRING, DRIVE DISK RETURN (NOT AVAILABLE)
N
Price unavailable
009
Required: 1
ARM, CLUTCH (NOT AVAILABLE)
N
Price unavailable
010
Honda
ARM, CHANGE40311-732-010
Required: 1
ARM, CHANGE
N
$51.39
You save $9.07
011
Required: 1
JOINT, CHANGE (NOT AVAILABLE)
N
Price unavailable
012
Required: 2
BUSH, DRIVE DISK SHAFT (NOT AVAILABLE)
N
Price unavailable
013
Required: 1
PLATE, DISK HOLDER SHAFT (NOT AVAILABLE)
N
Price unavailable
014
Honda
DISK, FRICTION75010-732-003
Required: 1
DISK, FRICTION
N
$68.42
You save $12.08
015
Required: 1
BOSS, FRICTION DISK (NOT AVAILABLE)
N
Price unavailable
016
Required: 1
COLLAR, FRICTION
N
Price unavailable
017
Required: 1
ROLLER (NOT AVAILABLE)
N
Price unavailable
018
Honda
BOLT, TRANS SETTING90004-732-000
Required: 4
BOLT, TRANSMISSION SETTING
N
$3.76
You save $0.66
019
Required: 1
WASHER, THRUST (12MM) (NOT AVAILABLE)
N
Price unavailable
020
Honda
WASHER C (12MM)90456-729-300
Required: 2
WASHER C, THRUST (12MM) (0.7)
N
$3.37
You save $0.59
021
Honda
WASHER (12MM)90459-107-000
Required: 1
WASHER, THRUST (12MM)
N
$1.48
You save $0.26
022
Honda
PIN, CLUTCH ARM90752-732-000
Required: 1
PIN, CLUTCH ARM
N
$4.25
You save $0.75
023
Required: 1
BEARING, NEEDLE (12MM) (NOT AVAILABLE)
N
Price unavailable
024
Honda
COLLAR, CHANGE JOINT91551-732-000
Required: 1
COLLAR, CHANGE JOINT
N
$2.84
You save $0.50
025
Honda
SCREW, PAN (6X18)93500-06018-0A
Required: 1
SCREW, PAN (6X18)
N
$1.19
You save $0.21
026
Required: 11
NUT, HEX. (6MM)
N
Price unavailable
026
Honda
NUT, HEX. (6MM)94001-06200-0S
Required: 11
NUT, HEX. (6MM)
N
$1.36
You save $0.24
027
Honda
WASHER, PLAIN (6MM)94103-06000
Required: 2
WASHER, PLAIN (6MM)
N
$1.02
You save $0.18
028
Honda
PIN, LOCK (6MM)94251-06000
Required: 2
PIN, LOCK (6MM)
N
$1.01
You save $0.25
029
Honda
PIN, SPRING (6X25)94305-60252
Required: 1
PIN, SPRING (6X25)
N
$2.04
You save $0.36
030
Honda
CIRCLIP (12MM)94510-12000
Required: 2
CIRCLIP, OUTER (12MM)
N
$1.94
You save $0.34
031
Honda
CIRCLIP (15MM)94510-15000
Required: 2
CIRCLIP (OUTER) (15MM)
N
$1.19
You save $0.21
032
Honda
CIRCLIP (22MM)94510-22000
Required: 1
CIRCLIP (OUTER) (22MM)
N
$1.39
You save $0.25
033
Honda
BOLT, FLANGE (6X12)95701-06012-00
Required: 5
BOLT, FLANGE (6X12)
N
In stock
Only 1 remaining
$1.58
You save $0.40
034
Honda
BOLT, FLANGE (6X16)95701-06016-00
Required: 1
BOLT, FLANGE (6X16)
N
$1.68
You save $0.30
035
Honda
BOLT, FLANGE (6X16)95701-06016-08
Required: 1
BOLT, FLANGE (6X16)
N
$1.55
You save $0.27
036
Required: 5
BOLT, FLANGE (6X18)
N
Price unavailable
036
Honda
BOLT, FLANGE (6X18)95701-06018-00
Required: 5
BOLT, FLANGE (6X18)
N
$1.68
You save $0.30
037
Honda
BEARING, RADIAL BALL96140-60020-10
Required: 1
BEARING, RADIAL BALL
N
$17.05
You save $3.01
038
Honda
BEARING (6004UU)96150-60040-10
Required: 2
BEARING, RADIAL BALL (6004UU)
N
In stock
Only 2 remaining
$18.38
You save $4.60
039
Honda
BEARING (6201UU)96150-62010-10
Required: 1
BEARING, RADIAL BALL (6201UU)
N
$13.77
You save $2.43
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
