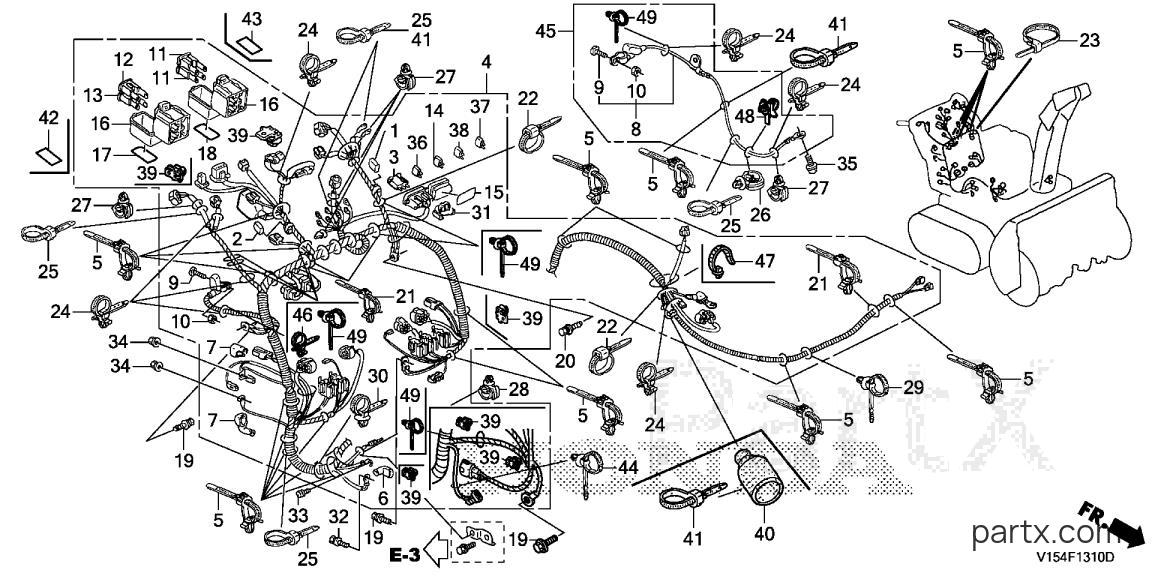

All Years Snowblower HS - HS1336I A WIRE HARNESS diagram
004
Honda
WIRE HARNESS, MAIN32100-V15-N10
Required: 1
WIRE HARNESS ASSY., MAIN
N
$787.83
You save $139.03
005
Honda
BAND, WIRE HARNESS32161-V15-003
Required: 14
BAND, WIRE HARNESS
N
$3.94
You save $0.70
008
Honda
CABLE ASSY., GROUND32600-V15-N30
Required: 1
CABLE ASSY., GROUND
N
$32.54
You save $5.74
009
Honda
BOLT32601-SK7-900
Required: 2
BOLT, BATTERY TERMINAL
N
$9.81
You save $1.73
010
Honda
NUT32602-SK7-900
Required: 2
NUT, BATTERY TERMINAL
N
$6.00
You save $1.06
011
Honda
FUSE (80A)38201-V15-003
Required: 2
FUSE (80A) (BLOCK)
N
$7.91
You save $1.40
012
Honda
FUSE, BLOCK (70A)38202-762-003
Required: 1
FUSE, BLOCK (70A)
N
$10.56
You save $1.86
015
Honda
LABEL, BLADE FUSE38219-V15-N00
Required: 1
LABEL, BLADE FUSE
N
$5.75
You save $1.01
016
Honda
CASE, MAIN FUSE38221-762-003
Required: 2
CASE, MAIN FUSE
N
$21.30
You save $3.76
017
Honda
MARK, MAIN FUSE87117-V15-N00
Required: 1
MARK, MAIN FUSE
N
$6.54
You save $1.16
018
Honda
MARK, MOTOR FUSE87118-V15-000
Required: 1
MARK, MOTOR FUSE
N
$6.24
You save $1.10
019
Honda
BOLT, GROUND (6X16)90148-SE0-003
Required: 2
BOLT, GROUND (6X16) (WASHER 12.5MM) (ZN)
N
$8.96
You save $1.58
020
Honda
BOLT, GROUND (6X19)90148-759-013
Required: 1
BOLT, GROUND (6X19)
N
$1.87
You save $0.33
021
Honda
BAND, HARN (150MM)90649-SC2-003
Required: 3
BAND, WIRE HARNESS (150MM) (NATURAL)
N
$7.22
You save $1.28
022
Honda
BAND, WIRE (95MM)90650-KV6-003
Required: 2
BAND, WIRE (95MM)
N
$3.55
You save $0.63
024
Honda
STRAP, CABLE (105MM)90672-SB2-003
Required: 6
STRAP, CABLE (105MM) (BLACK)
N
$5.95
You save $1.05
025
Honda
BAND, SUCTION HOSE90679-SG9-E01
Required: 3
BAND, SUCTION HOSE (BLACK)
N
$3.86
You save $0.68
027
Honda
CLIP, HARN (25MM)90683-SA0-003
Required: 3
CLIP, WIRE HARNESS (25MM)
N
$10.30
You save $1.82
029
Honda
CLIP (110MM)91507-SL9-003
Required: 1
CLIP, WIRE HARNESS (110MM) (7MM HOLE) (GREEN)
N
$7.26
You save $1.28
031
Honda
CLIP91565-SH3-003
Required: 1
CLIP, CONNECTOR HOLDER (BROWN)
N
$6.22
You save $1.10
035
Honda
BOLT, FLANGE (6X10)95701-06010-00
Required: 1
BOLT, FLANGE (6X10)
N
$1.23
You save $0.31
036
Honda
FUSE, MINI (5A)98200-40500
Required: 5
FUSE, MINI (5A)
N
$1.29
You save $0.23
037
Honda
FUSE, MINI (15A)98200-41500
Required: 2
FUSE, MINI (15A)
N
$1.29
You save $0.23
039
Honda
CLIP, CONNECTOR91565-S0X-003
Required: 6
CLIP, CONNECTOR (DARK GREEN)
N
$3.76
You save $0.66
040
Honda
COVER, CONNECTOR32108-KFG-000
Required: 1
COVER, CONNECTOR (NOT AVAILABLE)
N
$3.79
You save $0.67
041
Honda
BAND, WIRE (165MM)90651-KV6-003
Required: 4
BAND, WIRE (165MM) (BLACK)
N
$3.62
You save $0.64
044
Honda
CLIP (145MM)91541-S0A-003
Required: 1
CLIP, HARNESS BAND (145MM) (BLACK)
N
$4.11
You save $0.73
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
