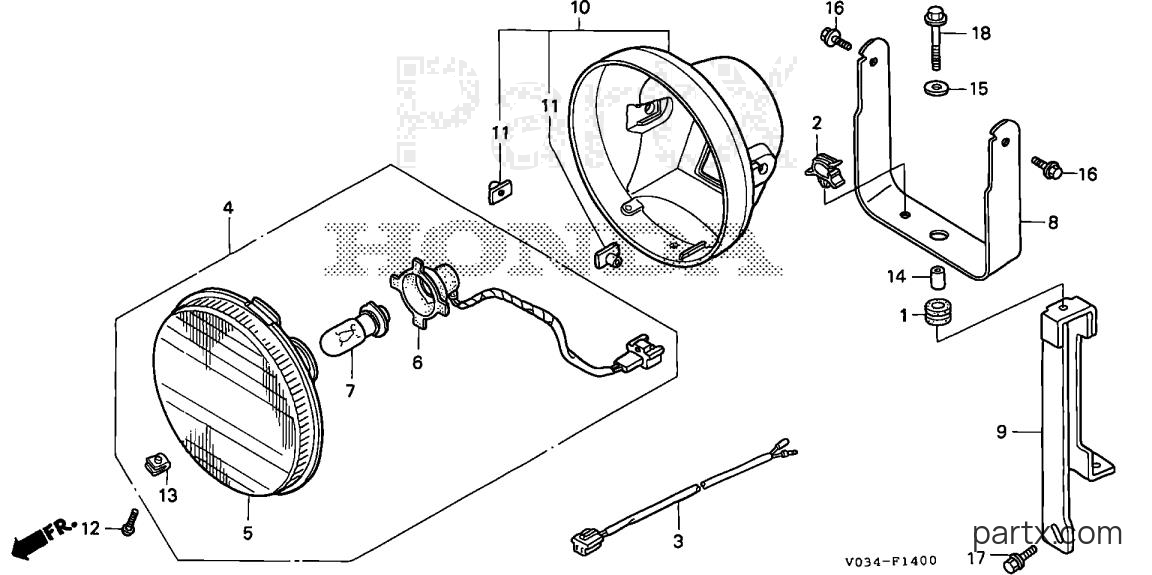

All Years Snowblower HS - HS1132 TAS HEADLIGHT diagram
001
Honda
GROMMET, OIL COOLER15604-MG7-000
Required: 1
GROMMET, OIL COOLER
N
$3.96
You save $0.70
002
Honda
CLIP, WIRE HARNESS32171-GJ1-003
Required: 1
CLIP, WIRE HARNESS
N
$4.32
You save $0.76
003
Honda
WIRE, WORK LIGHT32171-767-A40
Required: 1
WIRE ASSY., WORK LIGHT
N
$13.07
You save $2.31
004
Honda
HEADLIGHT ASSY.33120-766-003
Required: 1
HEADLIGHT ASSY.
N
$86.89
You save $15.33
005
Honda
HEADLIGHT UNIT33122-766-003
Required: 1
HEADLIGHT UNIT
N
$55.67
You save $9.83
006
Honda
SOCKET, HEADLIGHT33130-766-003
Required: 1
SOCKET ASSY., HEADLIGHT
N
$25.38
You save $4.48
007
Honda
BULB (12V 15/15W)34901-GS9-003
Required: 1
BULB, HEADLIGHT (12V 15/15W)
N
$13.24
You save $2.34
008
Honda
BRACKET, HEADLIGHT36201-767-700
Required: 1
BRACKET, HEADLIGHT
N
$19.38
You save $3.42
009
Honda
STAY, HEADLIGHT36202-767-C30
Required: 1
STAY, HEADLIGHT
N
$69.09
You save $12.19
010
Honda
CASE, HEADLIGHT61301-GS9-003
Required: 1
CASE ASSY., HEADLIGHT
N
$53.43
You save $9.43
011
Honda
NUT, SPECIAL (6X7)61304-958-003
Required: 2
NUT, SPECIAL (6X7)
N
$3.69
You save $0.65
012
Honda
SCREW, PAN (5X16)90102-GB2-720
Required: 1
SCREW, PAN (5X16)
N
$2.46
You save $0.44
013
Honda
NUT, SPRING (5MM)90320-GC3-000
Required: 1
NUT, SPRING (5MM)
N
$2.40
You save $0.42
014
Honda
COLLAR, RR.90324-303-000
Required: 1
COLLAR, RR. TURN SIGNAL MOUNTING
N
$5.51
You save $0.97
015
Honda
WASHER, PLAIN (8MM)94103-08000
Required: 1
WASHER, PLAIN (8MM)
N
$0.64
You save $0.16
016
Honda
BOLT, FLANGE (6X12)95701-06012-07
Required: 2
BOLT, FLANGE (6X12)
N
$1.68
You save $0.30
017
Honda
BOLT, FLANGE (6X16)95701-06016-00
Required: 2
BOLT, FLANGE (6X16)
N
$1.68
You save $0.30
018
Honda
BOLT, FLANGE (8X30)95701-08030-00
Required: 1
BOLT, FLANGE (8X30)
N
$1.17
You save $0.21
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
