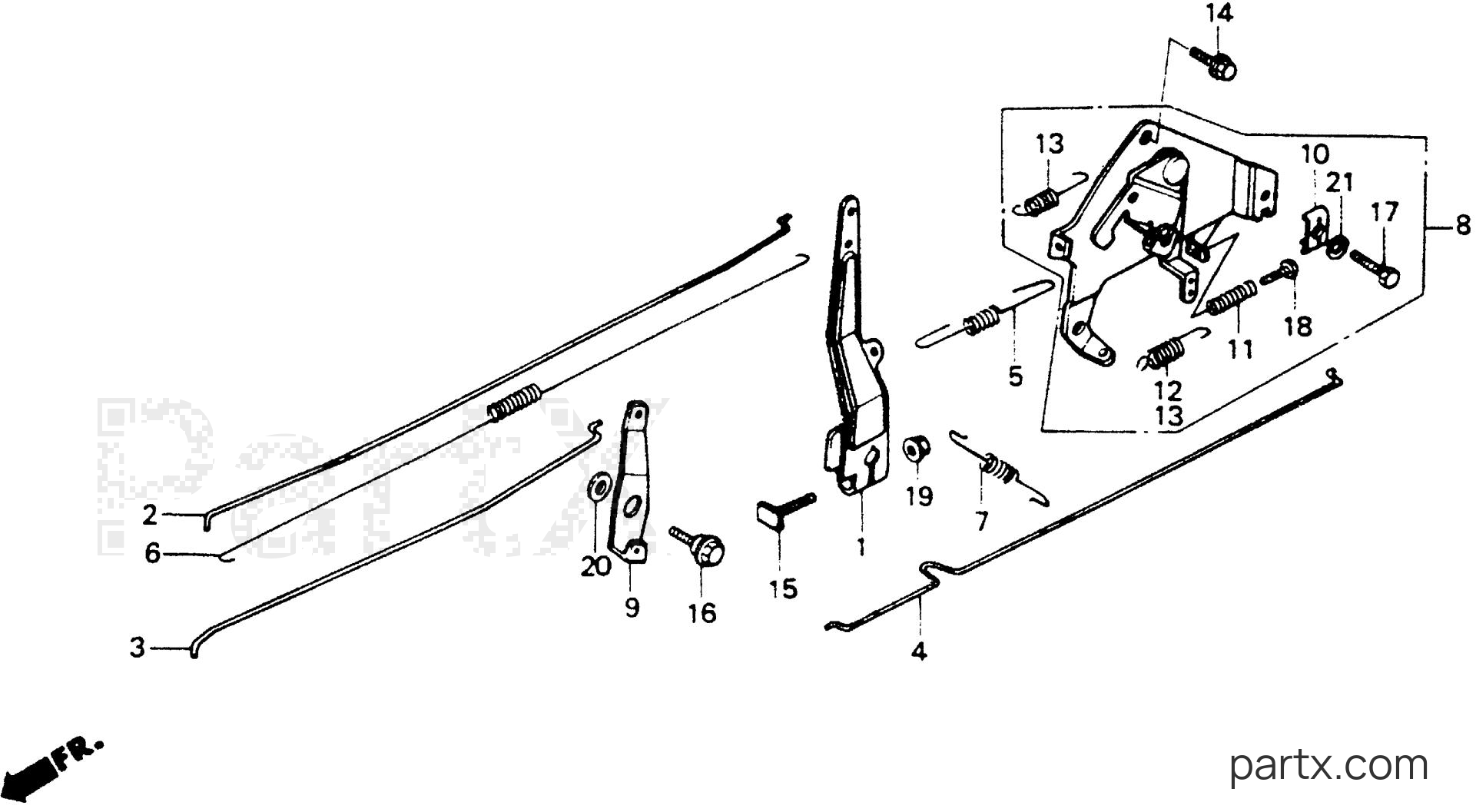

All Years Riding Mower HT - HT-R3009K1 SA CONTROL diagram
001
Required: 1
ARM, GOVERNOR (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
ROD, GOVERNOR
N
Price unavailable
003
Required: 1
ROD, CHOKE (NOT AVAILABLE)
N
Price unavailable
004
Honda
ROD, JOINT16557-ZE8-000
Required: 1
ROD, JOINT
N
$3.37
You save $0.59
005
Honda
SPRING, GOVERNOR16561-ZE8-000
Required: 1
SPRING, GOVERNOR
N
$3.52
You save $0.62
007
Honda
SPRING16563-ZE8-000
Required: 1
SPRING, GOVERNOR PRIMARY (NOT AVAILABLE)
N
$1.97
You save $0.35
008
Required: 1
CONTROL ASSY. (NOT AVAILABLE)
N
Price unavailable
009
Required: 1
LEVER, CHOKE JOINT (NOT AVAILABLE)
N
Price unavailable
010
Honda
HOLDER, CABLE16576-891-000
Required: 1
HOLDER, CABLE
N
$4.20
You save $0.74
011
Honda
SPRING16584-883-300
Required: 1
SPRING, CONTROL ADJUSTING
N
$4.13
You save $0.73
012
Honda
SPRING, CABLE RETURN16592-ZE1-810
Required: 1
SPRING, CABLE RETURN
N
$1.85
You save $0.33
013
Honda
SPRING, CABLE RETURN16592-883-310
Required: 1
SPRING, CABLE RETURN
N
$2.75
You save $0.49
014
Honda
BOLT (6X12) (CT200)90013-883-000
Required: 1
BOLT, FLANGE (6X12) (CT200)
N
In stock
Only 3 remaining
$1.60
You save $0.28
015
Honda
BOLT, GOVERNOR ARM90015-ZE5-010
Required: 1
BOLT, GOVERNOR ARM
N
$2.60
You save $0.46
016
Honda
BOLT, FLANGE (6MM)90015-ZE8-000
Required: 1
BOLT, FLANGE (6MM)
N
$2.40
You save $0.42
017
Honda
BOLT (5X16)92301-05016-0A
Required: 1
BOLT, RECESSED (5X16)
N
$1.26
You save $0.22
018
Honda
SCREW, PAN (5X20)93500-05020-0A
Required: 1
SCREW, PAN (5X20)
N
$0.85
You save $0.15
019
Honda
NUT, FLANGE (6MM)94050-06000
Required: 1
NUT, FLANGE (6MM)
N
$0.66
You save $0.16
021
Honda
WASHER, SPRING (5MM)94111-05000
Required: 1
WASHER, SPRING (5MM)
N
$1.17
You save $0.21
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
