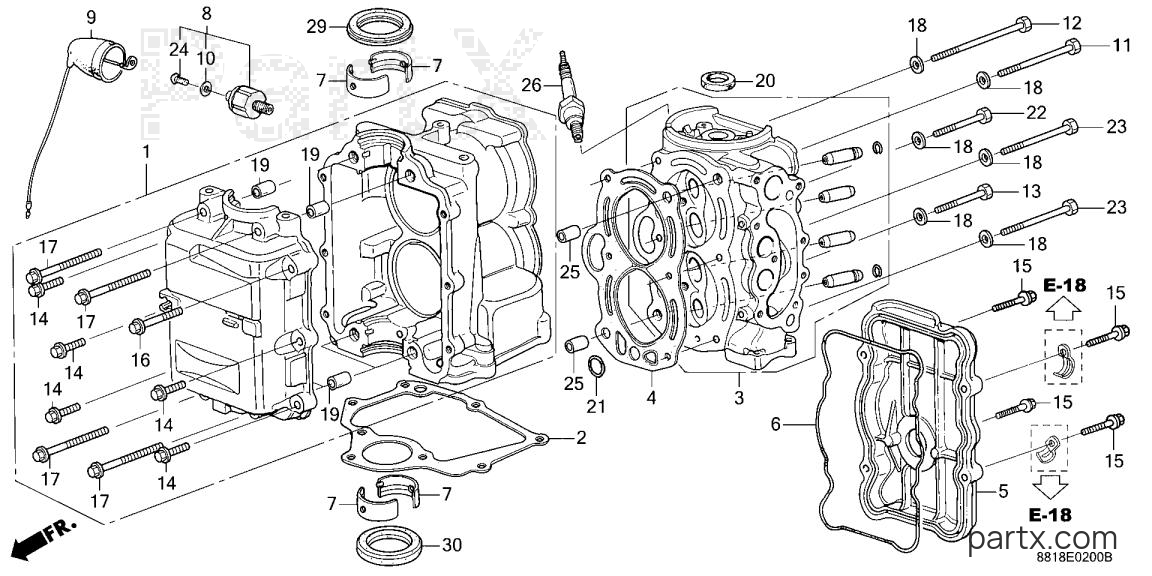

2000 Outboard BF - BF8AY LA CYLINDER diagram
001
Honda
CYLINDER ASSY. *NH8*11000-881-840ZA
Required: 1
CYLINDER ASSY. *NH8*(DARK GRAY) (NOT AVAILABLE)
N
$760.53
You save $134.21
002
Honda
GASKET, OIL PAN11210-881-850
Required: 1
GASKET, OIL PAN
N
$13.38
You save $2.36
003
Honda
CYLINDER HEAD *NH8*12200-881-841ZA
Required: 1
CYLINDER HEAD *NH8*(DARK GRAY) (NOT AVAILABLE)
N
$556.50
You save $98.21
004
Honda
GASKET, CYL HD12251-881-003
Required: 1
GASKET, CYLINDER HEAD
N
$58.43
You save $14.61
005
Honda
COVER, CYL HD *NH8*12301-881-000ZA
Required: 1
COVER, CYLINDER HEAD *NH8*(DARK GRAY) (NOT AVAILABLE)
N
$127.69
You save $22.53
006
Honda
GASKET, HEAD COVER12391-881-000
Required: 1
GASKET, HEAD COVER
N
$7.31
You save $1.29
007
Honda
BEARING, CRANKSHAFT13315-881-000
Required: 4
BEARING, CRANKSHAFT (NOT AVAILABLE)
N
$8.55
You save $1.51
008
Honda
SWITCH, OIL PRESSURE37200-935-004
Required: 1
SWITCH, OIL PRESSURE
N
$34.53
You save $6.09
009
Required: 1
WIRE, OIL PRESSURE SWITCH
N
Price unavailable
010
Honda
WASHER (4MM)37202-935-004
Required: 1
WASHER (4MM)
N
$0.75
You save $0.13
011
Honda
BOLT, HEAD (8X70)90017-935-000
Required: 1
BOLT, HEAD (8X70)
N
$2.21
You save $0.39
012
Honda
BOLT, HEAD (8X94)90018-935-000
Required: 1
BOLT, HEAD (8X94)
N
$4.81
You save $0.85
013
Honda
BOLT, HEX. (8X55)90019-881-000
Required: 1
BOLT, HEX. (8X55)
N
$2.69
You save $0.47
014
Required: 5
BOLT, FLANGE (6X25)
N
Price unavailable
015
Honda
BOLT, FLANGE (6X28)90016-ZZ5-M01
Required: 4
BOLT, FLANGE (6X28)
N
In stock
Only 5 remaining
$1.60
You save $0.28
016
Honda
BOLT, FLANGE (6X35)90019-ZW9-000
Required: 1
BOLT, FLANGE (6X35)
N
$2.55
You save $0.45
017
Honda
BOLT, FLANGE (8X45)90026-ZZ5-M01
Required: 4
BOLT, FLANGE (8X45)
N
$2.11
You save $0.37
018
Honda
WASHER, HEAD (8MM)90402-822-000
Required: 6
WASHER, HEAD (8MM)
N
$1.48
You save $0.26
019
Honda
PIN, DOWEL (10X12)94301-10120
Required: 4
PIN, DOWEL (10X12)
N
$2.55
You save $0.45
020
Honda
OIL SEAL (16X28X6)91206-921-000
Required: 1
OIL SEAL (16X28X6)
N
$7.43
You save $1.31
021
Honda
O-RING (10.8X2.4)15142-PH3-003
Required: 1
O-RING (10.8X2.4) (ARAI)
N
$3.01
You save $0.75
022
Honda
BOLT, HEX. (8X50)92201-08050-0A
Required: 1
BOLT, HEX. (8X50)
N
$1.43
You save $0.25
023
Honda
BOLT, HEX. (8X65)92201-08065-0A
Required: 2
BOLT, HEX. (8X65) (NOT AVAILABLE)
N
$1.21
You save $0.21
024
Honda
SCREW, PAN (4X6)93500-04006-3J
Required: 1
SCREW, PAN (4X6)
N
$1.05
You save $0.19
025
Honda
PIN, DOWEL (10X16)94301-10160
Required: 2
PIN, DOWEL (10X16)
N
$2.55
You save $0.45
026
Honda
SPARK PLUG (DR-4HS)98066-54716
Required: 2
SPARK PLUG (DR-4HS) (NGK)
N
$2.23
You save $0.39
026
Honda
SPARK PLUG (DR-5HS)98066-55716
Required: 2
SPARK PLUG (DR-5HS) (NGK)
N
$2.53
You save $0.45
026
Honda
S/PLG (X16FSR-U)98066-55726
Required: 2
SPARK PLUG (X16FSR-U) (DENSO)
N
$2.60
You save $0.46
027
Required: 2
GUIDE, VALVE (OVER SIZE) (NOT AVAILABLE)
N
Price unavailable
028
Honda
GUIDE, EX VLV (OS)12205-881-305
Required: 2
GUIDE, EX. VALVE (OVER SIZE)
N
$20.28
You save $3.58
029
Honda
OIL SEAL A (30X42X7)91201-881-003
Required: 1
OIL SEAL A (30X42X7)
N
$9.32
You save $1.64
030
Honda
OIL SEAL B (30X42X7)91202-881-003
Required: 1
OIL SEAL B (30X42X7) (NOT AVAILABLE)
N
$9.10
You save $1.61
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
