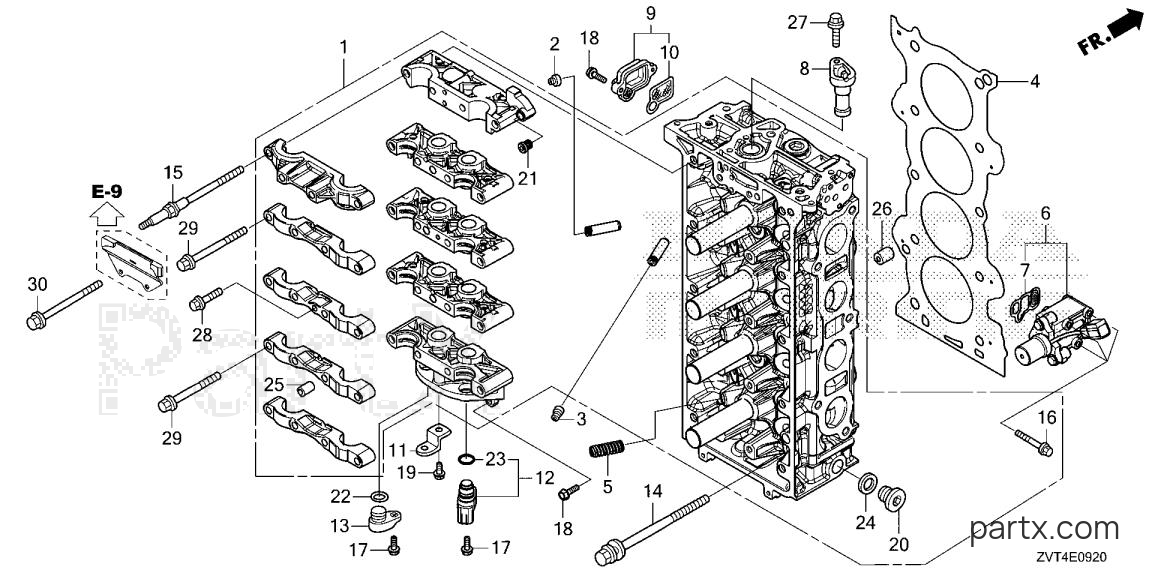

2007 And Later Marine Engine BF - BF150DK1 XRA CYLINDER HEAD diagram
001
Honda
CYLINDER HEAD KIT *N06122-ZY6-040ZA
Required: 1
CYLINDER HEAD KIT *NH8*(DARK GRAY)
N
$1440.00
You save $257.84
002
Honda
SEAL A, VALVE STEM12210-PZ1-004
Required: 8
SEAL A, VALVE STEM (NOK)
N
$4.90
You save $0.86
003
Honda
SEAL B, VALVE STEM12211-PZ1-004
Required: 8
SEAL B, VALVE STEM (NOK)
N
$4.90
You save $0.86
004
Honda
GASKET, CYL HD12251-ZY6-003
Required: 1
GASKET, CYLINDER HEAD
N
$156.95
You save $27.41
005
Honda
MOTION, LOST14820-PNA-013
Required: 4
MOTION, LOST
N
$12.61
You save $2.23
006
Honda
VALVE, SPOOL *NH8*15810-ZY6-013ZA
Required: 1
VALVE ASSY., SPOOL *NH8*(DARK GRAY)
N
$314.28
You save $55.46
007
Honda
FILTER, SPOOL VALVE15815-RAA-A02
Required: 1
FILTER ASSY., SPOOL VALVE
N
$7.63
You save $1.35
008
Honda
PLUG, VTC HOLE15834-ZY6-000
Required: 1
PLUG, VTC HOLE
N
$59.59
You save $10.52
009
Honda
STRAINER, VTC *NH8*15840-ZY6-000ZA
Required: 1
STRAINER ASSY., VTC *NH8*(DARK GRAY)
N
$25.74
You save $4.54
010
Honda
FILTER ASSY., VTC15845-RAA-A01
Required: 1
FILTER ASSY., VTC
N
$11.51
You save $2.03
011
Honda
BRACKET F, CLIP32116-ZY6-000
Required: 1
BRACKET F, CLIP
N
$6.61
You save $1.17
012
Honda
SENSOR ASSY., TDC37510-PNB-003
Required: 1
SENSOR ASSY., TDC
N
$186.54
You save $32.92
013
Honda
PLUG, TDC HOLE37521-ZY6-000
Required: 1
PLUG, TDC HOLE
N
$16.44
You save $2.90
014
Honda
BOLT-WASHER (11X155)90005-PNA-003
Required: 10
BOLT-WASHER (11X155)
N
$12.44
You save $2.20
015
Honda
BOLT A, HEAD COVER90011-PNA-003
Required: 6
BOLT A, HEAD COVER
N
$13.36
You save $2.36
016
Honda
BOLT, FLANGE (6X52)90011-ZY6-030
Required: 3
BOLT, FLANGE (6X52)
N
$1.80
You save $0.32
017
Honda
BOLT, FLANGE (6X16)90017-ZZ5-M01
Required: 2
BOLT, FLANGE (6X16)
N
$1.41
You save $0.25
018
Honda
BOLT, FLANGE (6X20)90018-ZZ5-M01
Required: 4
BOLT, FLANGE (6X20)
N
$1.55
You save $0.27
019
Honda
BOLT, FLANGE (6X14)90021-ZZ5-M01
Required: 1
BOLT, FLANGE (6X14)
N
$1.29
You save $0.23
020
Honda
BOLT, SEALING (20MM)90048-ZY6-040
Required: 1
BOLT, SEALING (20MM)
N
$4.59
You save $0.81
021
Honda
BOLT, SEALING (10MM)90083-PNA-000
Required: 1
BOLT, SEALING (10MM)
N
$6.00
You save $1.06
022
Honda
O-RING (15X1.9)91303-ZY6-003
Required: 1
O-RING (15X1.9)
N
$1.60
You save $0.28
023
Honda
O-RING (15X1.9)91333-PNA-003
Required: 1
O-RING (15X1.9)
N
$3.42
You save $0.60
-50%
024
Honda
WASHER, DRAIN (20MM)94109-20000
Required: 1
WASHER, DRAIN PLUG (20MM)
N
In stock
5+ in stock
$0.85
You save $0.85
025
Honda
PIN, DOWEL (10X16)94301-10160
Required: 20
PIN, DOWEL (10X16)
N
$2.55
You save $0.45
026
Honda
PIN, DOWEL (14X20)94301-14200
Required: 2
PIN, DOWEL (14X20)
N
$2.55
You save $0.45
027
Honda
BOLT, FLANGE (6X20)95701-06020-08
Required: 1
BOLT, FLANGE (6X20)
N
$0.41
You save $0.07
028
Honda
BOLT, FLANGE (6X32)95701-06032-08
Required: 1
BOLT, FLANGE (6X32)
N
$1.96
You save $0.35
029
Honda
BOLT, FLANGE (8X90)95701-08090-08
Required: 12
BOLT, FLANGE (8X90)
N
$3.15
You save $0.56
030
Honda
BOLT, FLANGE (8X110)95701-08110-08
Required: 2
BOLT, FLANGE (8X110)
N
$4.74
You save $0.84
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
