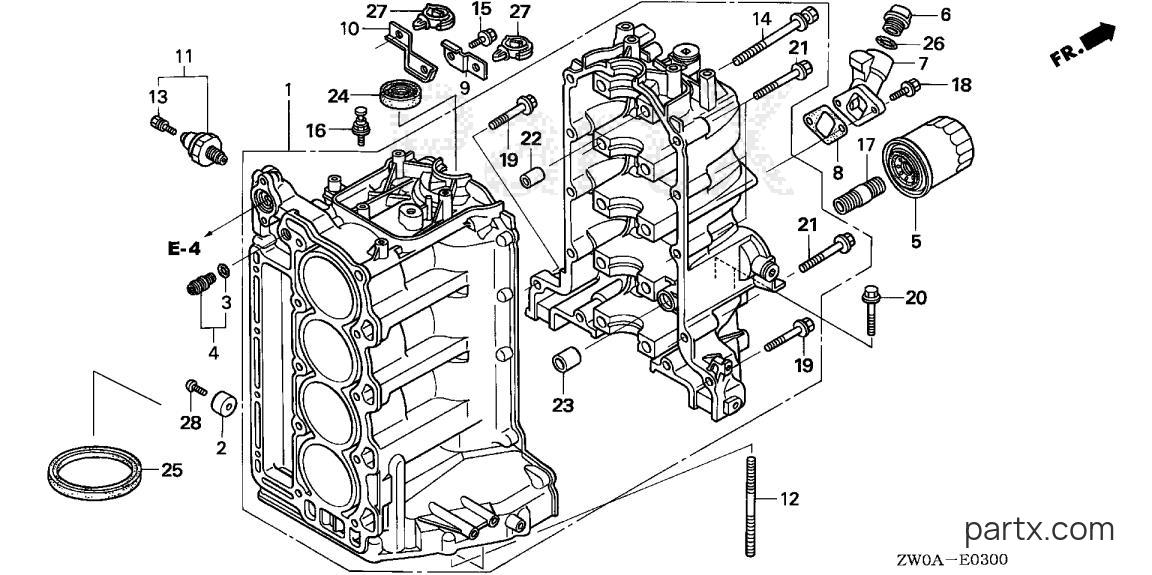

2006 Marine Engine BF - BF90A6 LRTA CYLINDER BLOCK diagram
001
Honda
BLOCK ASSY. *NH8*12000-ZW1-L00ZA
Required: 1
BLOCK ASSY., CYLINDER *NH8*(DARK GRAY)
N
$2099.00
You save $370.41
002
Honda
METAL, ANODE12155-ZV5-000
Required: 2
METAL, ANODE
N
$10.78
You save $1.90
002
Honda
METAL, ANODE12155-ZV5-010
Required: 2
METAL, ANODE
N
In stock
Only 5 remaining
$10.14
You save $2.54
003
Honda
O-RING (10.8X2.4)15142-PH3-003
Required: 1
O-RING (10.8X2.4) (ARAI)
N
$3.01
You save $0.75
004
Honda
ORIFICE, OIL PASSAGE15150-ZW1-000
Required: 1
ORIFICE ASSY., OIL PASSAGE (NOT AVAILABLE)
N
$8.55
You save $1.51
005
Required: 1
FILTER, OIL (TOYO ROKI) (SOLD INDIVIDUALLY)
N
Price unavailable
005
Honda
FILTER, OIL15400-PLM-A02PE
Required: 1
FILTER, OIL (SOLD INDIVIDUALLY)
N
$9.94
You save $2.48
006
Honda
CAP, OIL15611-921-000
Required: 1
CAP, OIL (YELLOW)
N
$11.46
You save $2.02
007
Honda
EXTEN, OIL FILLER15631-ZW1-000
Required: 1
EXTENSION, OIL FILLER
N
$34.32
You save $6.06
008
Honda
GASKET15635-ZG3-800
Required: 1
GASKET, EXTENSION OIL FILLER (NON-ASBESTOS)
N
$1.92
You save $0.34
009
Honda
BRKT, HARNESS CLIP32119-ZW1-010
Required: 1
BRACKET, HARNESS CLIP
N
$4.06
You save $0.72
010
Honda
CLAMP C, ENG WR HARN32743-ZW1-000
Required: 1
CLAMP C, ENGINE WIRE HARNESS
N
$6.63
You save $1.17
011
Honda
SWITCH, OIL PRESSURE37240-ZG3-E01
Required: 1
SWITCH, OIL PRESSURE
N
$38.05
You save $6.71
012
Honda
BOLT, STUD (10X125)90001-ZW1-000
Required: 2
BOLT, STUD (10X125)
N
$8.82
You save $1.56
013
Honda
SCREW-WASHER (4X8)90002-ZG5-004
Required: 1
SCREW-WASHER (4X8)
N
$7.72
You save $1.36
014
Required: 10
BOLT-WASHER (10X112) (NOT AVAILABLE)
N
Price unavailable
015
Honda
BOLT (6X14) (CT200)90011-ZW9-000
Required: 1
BOLT, FLANGE (6X14) (CT200)
N
$1.94
You save $0.34
016
Honda
BOLT90012-ZZ5-M02
Required: 1
BOLT, TIMING BELT ADJUSTING SPRING
N
$4.22
You save $0.74
017
Honda
HOLDER, OIL FILTER90015-PH1-013
Required: 1
HOLDER, OIL FILTER
N
$8.53
You save $1.51
018
Honda
BOLT, FLANGE (6X22)90025-ZY3-000
Required: 2
BOLT, FLANGE (6X22)
N
$1.21
You save $0.21
019
Honda
BOLT, FLANGE (8X35)90054-ZY9-M01
Required: 2
BOLT, FLANGE (8X35)
N
$1.96
You save $0.35
020
Honda
BOLT, FLANGE (8X40)90055-ZZ5-M01
Required: 2
BOLT, FLANGE (8X40)
N
$2.11
You save $0.37
021
Honda
BOLT, FLANGE (8X50)90020-ZVL-010
Required: 10
BOLT, FLANGE (8X50)
N
$1.41
You save $0.25
022
Honda
PIN, DOWEL (12X18)90702-PE0-000
Required: 10
PIN, DOWEL (12X18)
N
$5.61
You save $0.99
023
Honda
PIN, DOWEL (18X22)90703-PE0-000
Required: 1
PIN, DOWEL (18X22)
N
$10.47
You save $1.85
024
Honda
OIL SEAL (38X50X8)91212-ZW1-L01
Required: 1
OIL SEAL (38X50X8)
N
$11.42
You save $2.02
025
Honda
OIL SEAL (98X80X10)91214-PL2-003
Required: 1
OIL SEAL (98X80X10) (NOK)
N
$40.39
You save $7.13
026
Honda
O-RING (26X2.7)91301-805-000
Required: 1
O-RING (26X2.7)
N
$4.13
You save $0.73
027
Honda
CLIP, WIRE HARNESS91558-SD5-003
Required: 2
CLIP, WIRE HARNESS (BLACK)
N
$9.40
You save $1.66
-50%
028
Honda
SCREW, PAN (6X18)93500-06018-4J
Required: 2
SCREW, PAN (6X18)
N
In stock
Only 3 remaining
$0.99
You save $0.99
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
