All diagrams for this model

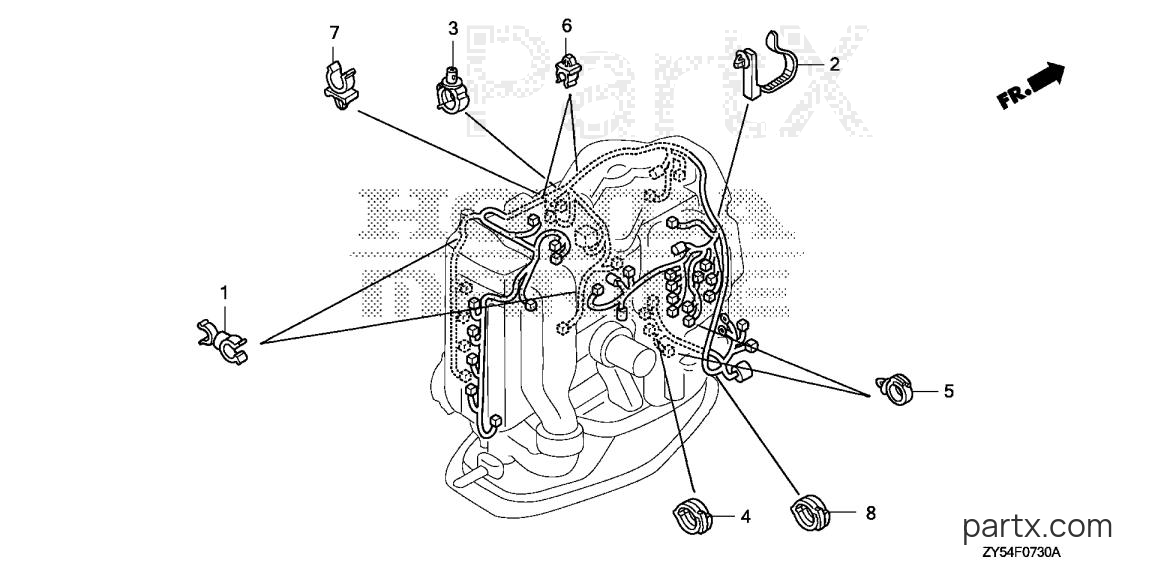

2005 Marine Engine BF - BF135A5 XA CLAMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda BF135A5 XA - CLAMP
Change View:
CLAMP, HOSE
001
Honda
CLAMP, HOSE16965-VM0-771
Required: 2
CLAMP, HOSE
N
Cross Ship
Leaves in 2-5 days
$3.62
$3.08
You save $0.54
More details
BAND (10) (122.5MM)
002
Honda
BAND (10) (122.5MM)32134-SM4-003
Required: 1
BAND, HARNESS OFFSET (10) (122.5MM) (BROWN)
N
Cross Ship
Leaves in 2-5 days
$4.34
$3.69
You save $0.65
More details
CLAMP
003
Honda
CLAMP32742-PK1-003
Required: 1
CLAMP, ENGINE SUB-WIRE (SOURCE: VINTAGE PARTS INC.)
N
Cross Ship
Leaves in 2-5 days
$11.66
$9.91
You save $1.75
More details
CLIP, WIRE HARNESS
004
Honda
CLIP, WIRE HARNESS90683-KJ2-003
Required: 1
CLIP, WIRE HARNESS
N
Cross Ship
Leaves in 2-5 days
$4.78
$4.06
You save $0.72
More details
CLIP, HARN (25MM)
005
Honda
CLIP, HARN (25MM)90683-SA0-003
Required: 2
CLIP, WIRE HARNESS (25MM)
N
Cross Ship
Leaves in 2-5 days
$12.12
$10.30
You save $1.82
More details
CLIP, TUBE (3.5)
006
Honda
CLIP, TUBE (3.5)91531-SZ5-003
Required: 2
CLIP, TUBE (3.5)
N
Cross Ship
Leaves in 2-5 days
$5.64
$4.79
You save $0.85
More details
CLAMP (18.5MM)
007
Honda
CLAMP (18.5MM)91546-SP0-A01
Required: 1
CLAMP (18.5MM)
N
Cross Ship
Leaves in 2-5 days
$7.32
$6.22
You save $1.10
More details
CLIP, WIRE HARNESS
008
Honda
CLIP, WIRE HARNESS90683-KJ2-003
Required: 1
CLIP, WIRE HARNESS
N
Cross Ship
Leaves in 2-5 days
$4.78
$4.06
You save $0.72
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
