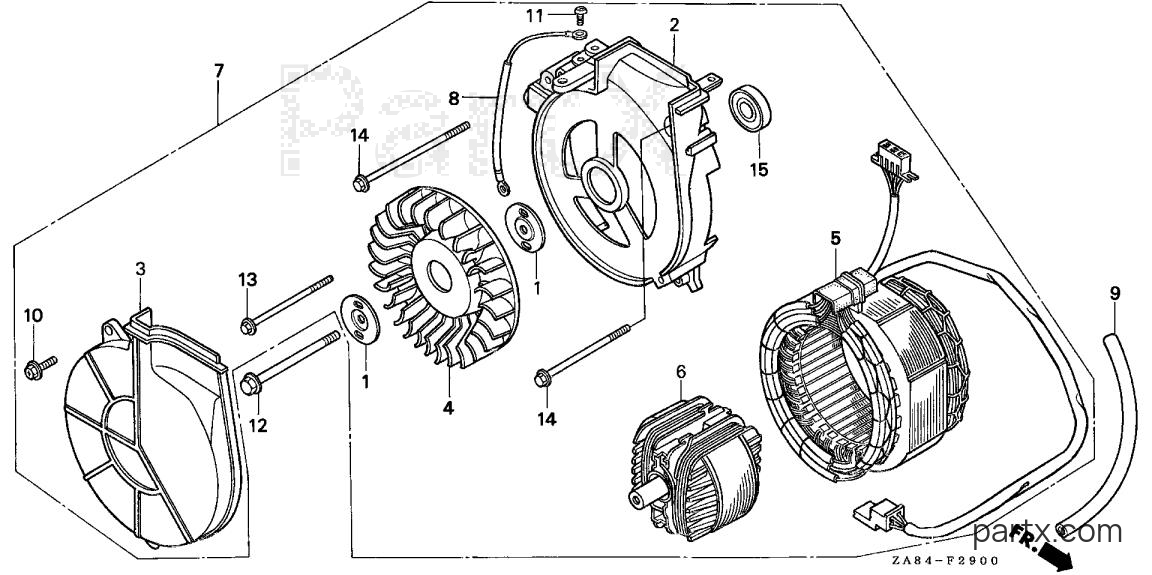

All Years Generator EX - EX650 A EX650 ROTOR - STATOR diagram
001
Honda
PLATE, FAN SETTING19512-ZA8-000
Required: 2
PLATE, FAN SETTING
N
$5.87
You save $1.04
002
Required: 1
HOUSING, RR.
N
Price unavailable
002
Required: 1
HOUSING, RR. (NOT AVAILABLE)
N
Price unavailable
003
Honda
COVER, GENERATOR FAN31109-ZA8-003
Required: 1
COVER, GENERATOR FAN
N
$31.13
You save $5.49
004
Honda
FAN, COOLING31112-ZA8-801
Required: 1
FAN, COOLING (BLACK)
N
$19.70
You save $3.48
005
Required: 1
STATOR ASSY.
N
Price unavailable
005
Required: 1
STATOR ASSY. (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
STATOR ASSY. (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
ROTOR (NOT AVAILABLE)
N
Price unavailable
$390.61
You save $68.93
007
Required: 1
GENERATOR ASSY. (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
GENERATOR ASSY. (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
GENERATOR ASSY. (NOT AVAILABLE)
N
Price unavailable
008
Required: 1
WIRE, GROUND (NOT AVAILABLE)
N
Price unavailable
009
Required: 1
TUBE, PROTECTOR (9X100) (NOT AVAILABLE)
N
Price unavailable
010
Honda
SCREW, TAP (5X12)90031-875-003
Required: 2
SCREW, TAPPING (5X12)
N
$2.38
You save $0.42
011
Honda
SCREW, PAN (5X12)90102-899-003
Required: 1
SCREW, PAN (5X12)
N
$3.32
You save $0.58
012
Required: 1
BOLT, FLANGE (8X92)
N
Price unavailable
012
Honda
BOLT, FLANGE (8X92)90155-ZA8-010
Required: 1
BOLT, FLANGE (8X92)
N
$4.68
You save $0.83
013
Honda
BOLT, FLANGE (6X75)90157-ZA8-000
Required: 1
BOLT, FLANGE (6X75)
N
$3.77
You save $0.67
014
Honda
BOLT, FLANGE (6X95)90158-ZA8-000
Required: 3
BOLT, FLANGE (6X95)
N
$3.77
You save $0.67
015
Honda
BEARING ASSY. (6002)91051-ZA8-003
Required: 1
BEARING ASSY. (6002) (NOT AVAILABLE)
N
$15.95
You save $2.81
015
Honda
BEARING (6002UU)96150-60020-10
Required: 1
BEARING, RADIAL BALL (6002UU)
N
$13.98
You save $3.50
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
