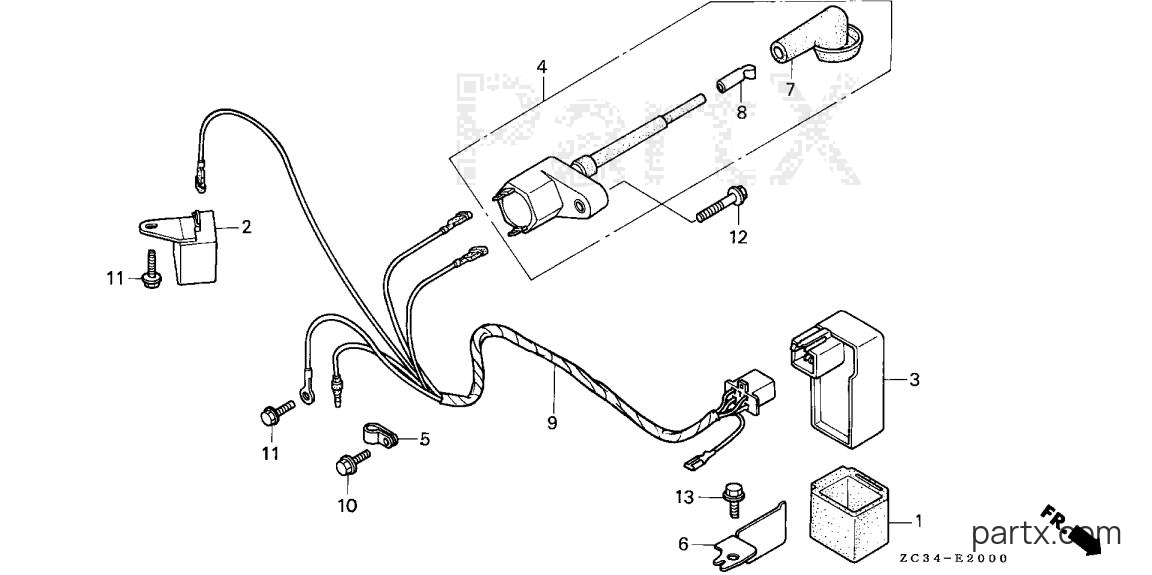

All Years Generator EX - EX350 A IGNITION COIL diagram
001
Honda
CUSHION30401-ZC3-000
Required: 1
CUSHION, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)
N
$8.14
You save $1.44
001
Honda
CUSHION.CDI UNIT30401-GB4-770
Required: 1
CUSHION.CDI UNIT
N
$6.53
You save $1.15
002
Required: 1
PULSER (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
MODULE, IGNITION CONTROL (CDI) (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
COIL ASSY., IGNITION (NOT AVAILABLE)
N
Price unavailable
005
Honda
CLAMP, IGNITION WIRE30564-ZE8-003
Required: 1
CLAMP, IGNITION WIRE
N
$2.94
You save $0.52
005
Honda
CLIP (7.5MM)90627-ZA8-E50
Required: 1
CLIP (7.5MM)
N
$2.28
You save $0.40
006
Required: 1
HOLDER PLATE, IGNITION (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
CAP, IGNITION (NOT AVAILABLE)
N
Price unavailable
008
Honda
TERMINAL, PLUG30702-888-003
Required: 1
TERMINAL, PLUG
N
$7.94
You save $1.40
009
Required: 1
SUB-WIRE HARNESS ASSY. (NOT AVAILABLE)
N
Price unavailable
010
Honda
BOLT, FLANGE (5X12)90003-892-000
Required: 1
BOLT, FLANGE (5X12)
N
$1.27
You save $0.23
010
Honda
BOLT (5X10) (CT200)90019-883-000
Required: 1
BOLT, FLANGE (5X10) (CT200)
N
$2.57
You save $0.45
011
Honda
BOLT, FLANGE (5X12)90003-892-000
Required: 2
BOLT, FLANGE (5X12)
N
$1.27
You save $0.23
011
Honda
BOLT (5X10) (CT200)90019-883-000
Required: 2
BOLT, FLANGE (5X10) (CT200)
N
$2.57
You save $0.45
012
Honda
BOLT, FLANGE (5X20)90004-ZC3-000
Required: 1
BOLT, FLANGE (5X20)
N
$1.36
You save $0.24
013
Honda
BOLT (5X10) (CT200)90019-883-000
Required: 1
BOLT, FLANGE (5X10) (CT200)
N
$2.57
You save $0.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
