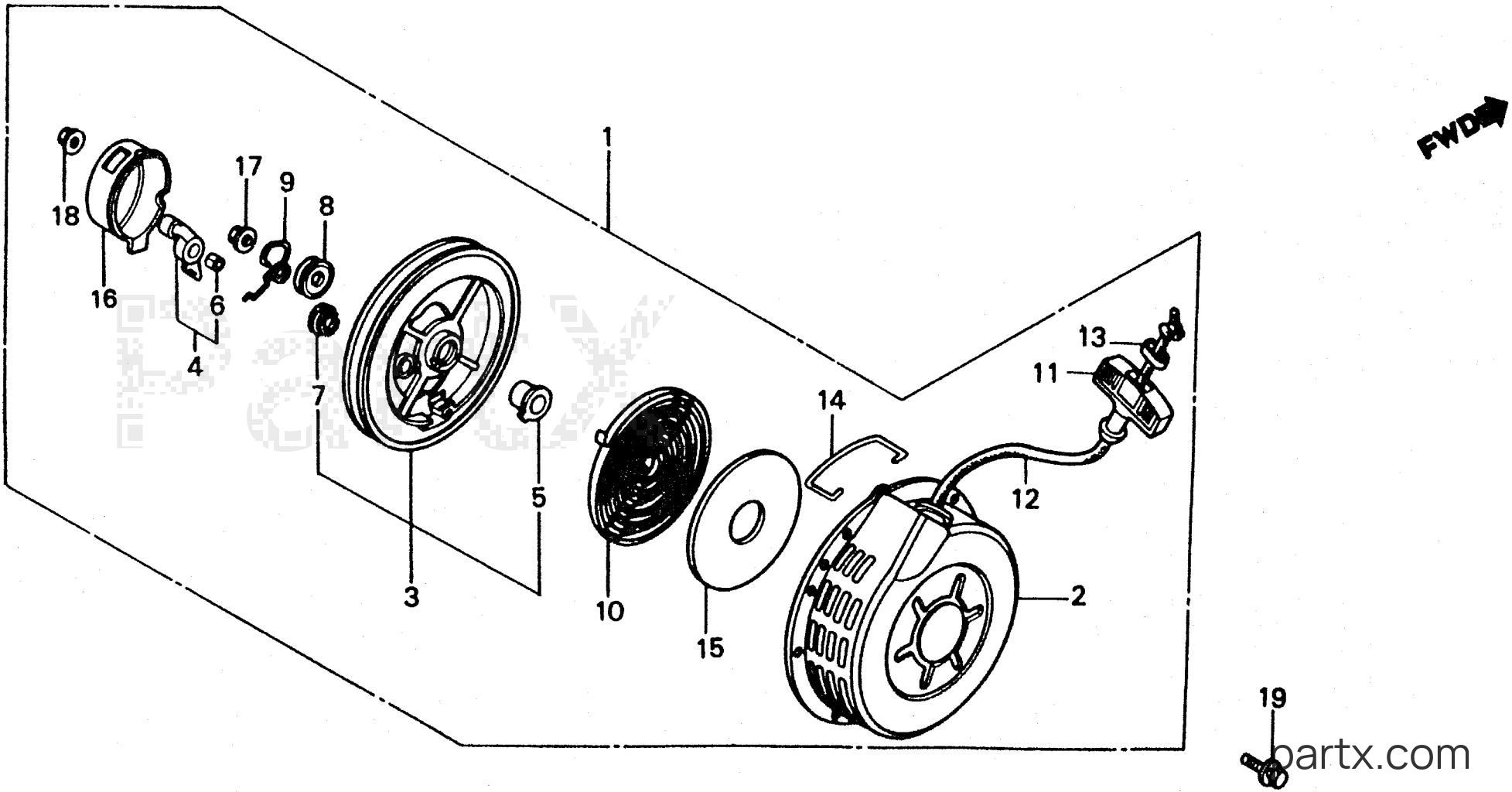

All Years Generator EW - EW170 A RECOIL STARTER diagram
001
Honda
STARTER, RECOIL *R8*28400-890-030ZC
Required: 1
STARTER ASSY., RECOIL *R8*(BRIGHT RED)
N
$82.19
You save $14.51
002
Honda
CASE, STARTER *R8*28410-890-010H
Required: 1
CASE, STARTER *R8*(BRIGHT RED)
N
$100.27
You save $17.69
003
Required: 1
REEL, STARTER (NOT AVAILABLE)
N
Price unavailable
$9.23
You save $1.63
005
Required: 1
BOSS, REEL (NOT AVAILABLE)
N
Price unavailable
006
Honda
BUSH, RATCHET28425-890-300
Required: 1
BUSH, RATCHET
N
$3.45
You save $0.61
007
Honda
*28400-883-50528427-883-300
Required: 1
BUSH, REEL STARTER (NA USE ALT: 28400-883-505)
N
$4.13
You save $0.73
008
Required: 1
PLATE, FRICTION (NOT AVAILABLE)
N
Price unavailable
009
Required: 1
SPRING, FRICTION (NOT AVAILABLE)
N
Price unavailable
010
Honda
SPRING, RETURN28442-890-000
Required: 1
SPRING, RETURN (NOT AVAILABLE)
N
$30.06
You save $5.30
011
Honda
GRIP, STARTER28461-883-T20
Required: 1
GRIP, STARTER
N
$8.18
You save $1.44
012
Required: 1
ROPE, STARTER
N
Price unavailable
013
Honda
SUPPORT, GRIP28463-883-000
Required: 1
SUPPORT, GRIP (NOT AVAILABLE)
N
$3.37
You save $0.59
014
Required: 1
HOLDER, ROPE (NOT AVAILABLE)
N
Price unavailable
015
Required: 1
PLATE, SIDE (NOT AVAILABLE)
N
Price unavailable
016
Honda
COVER, STARTER REEL28474-890-020
Required: 1
COVER, STARTER REEL (NOT AVAILABLE)
N
$10.93
You save $1.93
017
Honda
NUT, SELF-LOCK (8MM)90115-659-003
Required: 1
NUT, SELF-LOCK (8MM) (CLINCH)
N
In stock
Only 3 remaining
$0.75
You save $0.19
018
Honda
NUT, SELF-LOCK (6MM)90114-SA0-000
Required: 1
NUT, SELF-LOCK (6MM)
N
In stock
Only 3 remaining
$3.12
You save $0.78
018
Honda
NUT, SELF-LOCK (6MM)90343-892-000
Required: 1
NUT, SELF-LOCK (6MM)
N
$3.32
You save $0.58
019
Honda
BOLT-WASHER (6X10)93401-06010-08
Required: 3
BOLT-WASHER (6X10)
N
$1.68
You save $0.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
