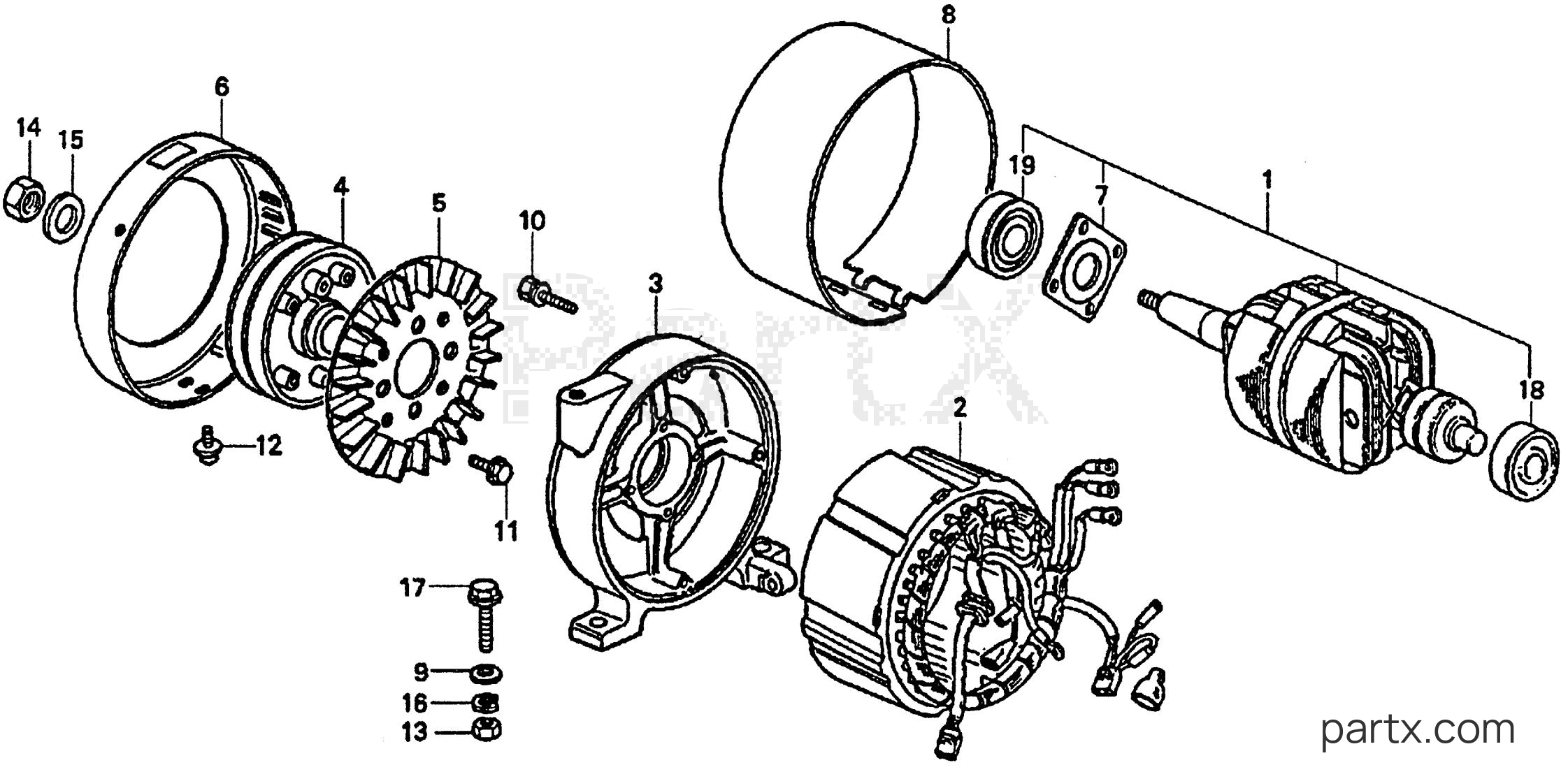

All Years Generator ES - ES3500 A ROTOR - STATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda ES3500 A - ROTOR - STATOR
Change View:
001
Required: 1
ROTOR
N
Price unavailable
002
Required: 1
STATOR
N
Price unavailable
003
Required: 1
HOUSING, FR. *NH31*(MCKINLEY WHITE)
N
Price unavailable
004
Required: 1
PULLEY, ALTERNATOR (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
FAN (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
COVER, FAN *NH31*(MCKINLEY WHITE) (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
PLATE, BEARING SETTING (NOT AVAILABLE)
N
Price unavailable
008
Required: 1
COVER, STATOR *NH31*(MCKINLEY WHITE) (NOT AVAILABLE)
N
Price unavailable
WASHER, EX. MANIFOLD
009
Honda
WASHER, EX. MANIFOLD90501-579-020
Required: 2
WASHER, EX. MANIFOLD
N
Cross Ship
Leaves in 2-5 days
$6.88
$5.85
You save $1.03
More details
010
Required: 4
BOLT-WASHER (5X20) (NOT AVAILABLE)
N
Price unavailable
BOLT-WASHER (6X12)
011
Honda
BOLT-WASHER (6X12)93411-06012-08
Required: 4
BOLT-WASHER (6X12)
N
Cross Ship
Leaves in 2-5 days
$1.98
$1.68
You save $0.30
More details
BOLT-WASHER (6X12)
011
Honda
BOLT-WASHER (6X12)93401-06012-08
Required: 4
BOLT-WASHER (6X12)
N
Cross Ship
Leaves in 2-5 days
$1.98
$1.68
You save $0.30
More details
SCREW-WASHER (5X10)
012
Honda
SCREW-WASHER (5X10)93893-05010-08
Required: 3
SCREW-WASHER (5X10)
N
Cross Ship
Leaves in 2-5 days
$1.64
$1.39
You save $0.25
More details
NUT, HEX. (10MM)
013
Honda
NUT, HEX. (10MM)94001-10000-0S
Required: 2
NUT, HEX. (10MM)
N
Cross Ship
Leaves in 2-5 days
$1.76
$1.50
You save $0.26
More details
014
Required: 1
NUT, HEX. (18MM) (NOT AVAILABLE)
N
Price unavailable
015
Required: 1
WASHER, FLAT (18MM) (NOT AVAILABLE)
N
Price unavailable
WASHER (10MM)
016
Honda
WASHER (10MM)94111-10000
Required: 2
WASHER, SPRING (10MM)
N
Cross Ship
Leaves in 2-5 days
$1.64
$1.39
You save $0.25
More details
BOLT, FLANGE (10X32)
017
Honda
BOLT, FLANGE (10X32)95801-10032-00
Required: 2
BOLT, FLANGE (10X32)
N
Cross Ship
Leaves in 2-5 days
$2.96
$2.52
You save $0.44
More details
BEARING (6304UU)
018
Honda
BEARING (6304UU)96150-63040-10
Required: 1
BEARING, RADIAL BALL (6304UU)
N
Cross Ship
Leaves in 2-5 days
$23.34
$19.84
You save $3.50
More details
BEARING (6306UU)
019
Honda
BEARING (6306UU)96150-63060-10
Required: 1
BEARING, RADIAL BALL (6306UU) (NOT AVAILABLE)
N
Cross Ship
Leaves in 2-5 days
$48.82
$41.50
You save $7.32
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
