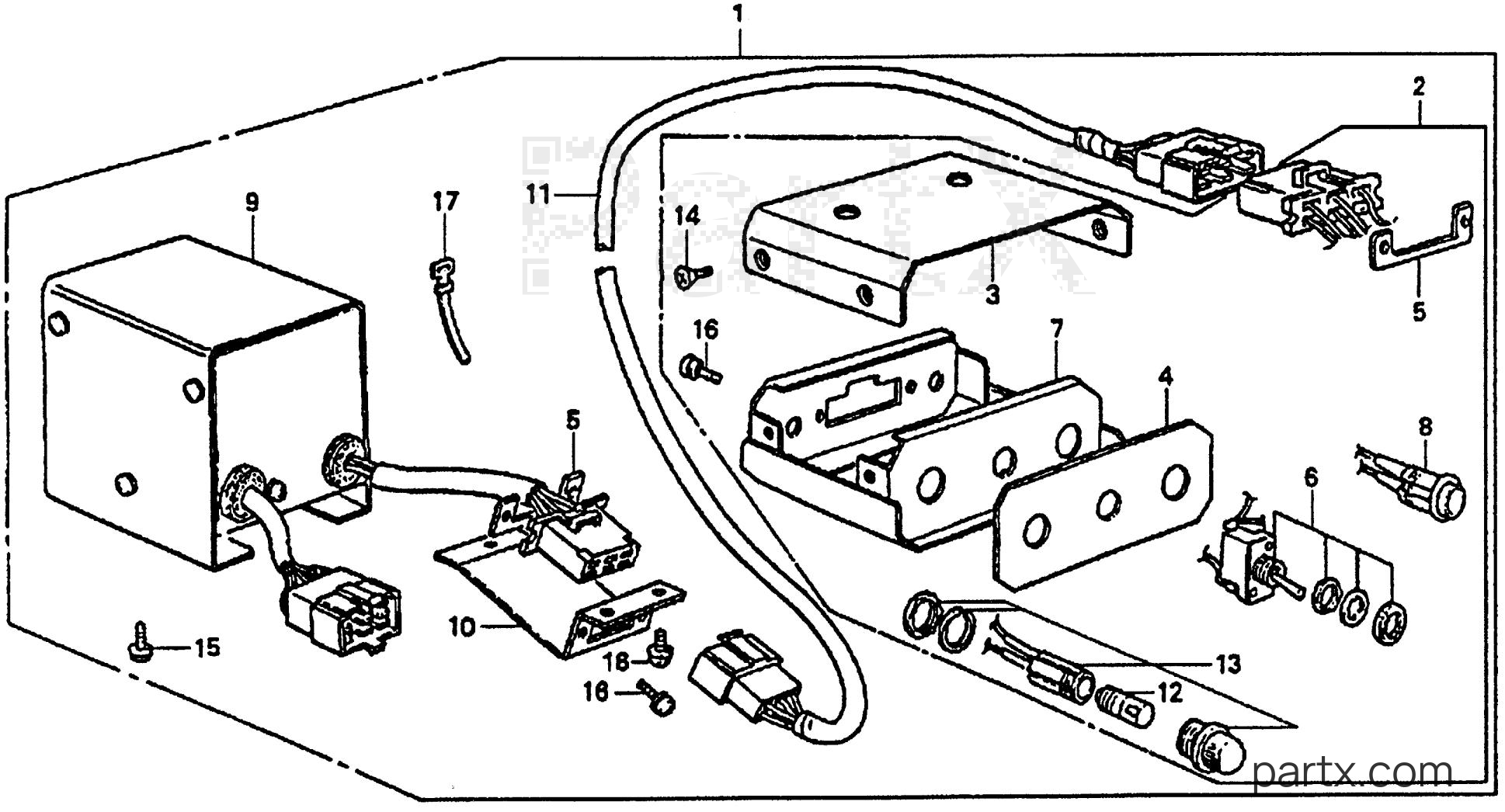

All Years Generator ES - ES3500 A REMOTE CONTROL KIT diagram
001
Required: 1
CONTROL KIT, REMOTE
N
Price unavailable
002
Required: 1
BOX ASSY., SWITCH (NOT AVAILABLE)
N
Price unavailable
003
Honda
COVER (UPPER)31611-880-810
Required: 1
COVER (UPPER)
N
$20.32
You save $3.59
004
Honda
PANEL, FR.31612-880-810
Required: 1
PANEL, FR.
N
$31.55
You save $5.57
005
Honda
PLATE31613-880-810
Required: 2
PLATE, CONNECTOR SETTING
N
$5.37
You save $0.95
006
Honda
SWITCH, TOGGLE31614-880-810
Required: 1
SWITCH, TOGGLE
N
$49.47
You save $8.73
007
Required: 1
CASE, SWITCH (NOT AVAILABLE)
N
Price unavailable
008
Honda
SWITCH, PUSH31619-880-810
Required: 1
SWITCH, PUSH
N
$45.46
You save $8.02
009
Required: 1
BOX ASSY., RELAY
N
Price unavailable
009
Required: 1
BOX, RELAY
N
Price unavailable
010
Required: 1
HOLDER, CONNECTOR (NOT AVAILABLE)
N
Price unavailable
011
Required: 1
CABLE, REMOTE CONTROL (NOT AVAILABLE)
N
Price unavailable
012
Honda
BULB, DASH (24V-2W)34909-880-000
Required: 1
BULB, DASH (24V-2W)
N
$7.09
You save $1.25
013
Honda
HOLDER, LAMP37561-ZA0-003
Required: 1
HOLDER, LAMP
N
$17.85
You save $3.15
014
Honda
SCREW, FLAT (4X8)93600-04008-0H
Required: 4
SCREW, FLAT (4X8)
N
$0.99
You save $0.17
015
Honda
SCREW-WASHER (5X12)93891-05012-08
Required: 2
SCREW-WASHER (5X12)
N
$1.19
You save $0.21
016
Honda
SCREW-WASHER (4X12)93892-04012-08
Required: 2
SCREW-WASHER (4X12)
N
$0.66
You save $0.12
016
Honda
SCREW-WASHER (4X12)93892-04012-08
Required: 5
SCREW-WASHER (4X12)
N
$0.66
You save $0.12
017
Honda
BAND B1, WIRE95014-62100
Required: 2
BAND B1, WIRE
N
$1.70
You save $0.30
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
