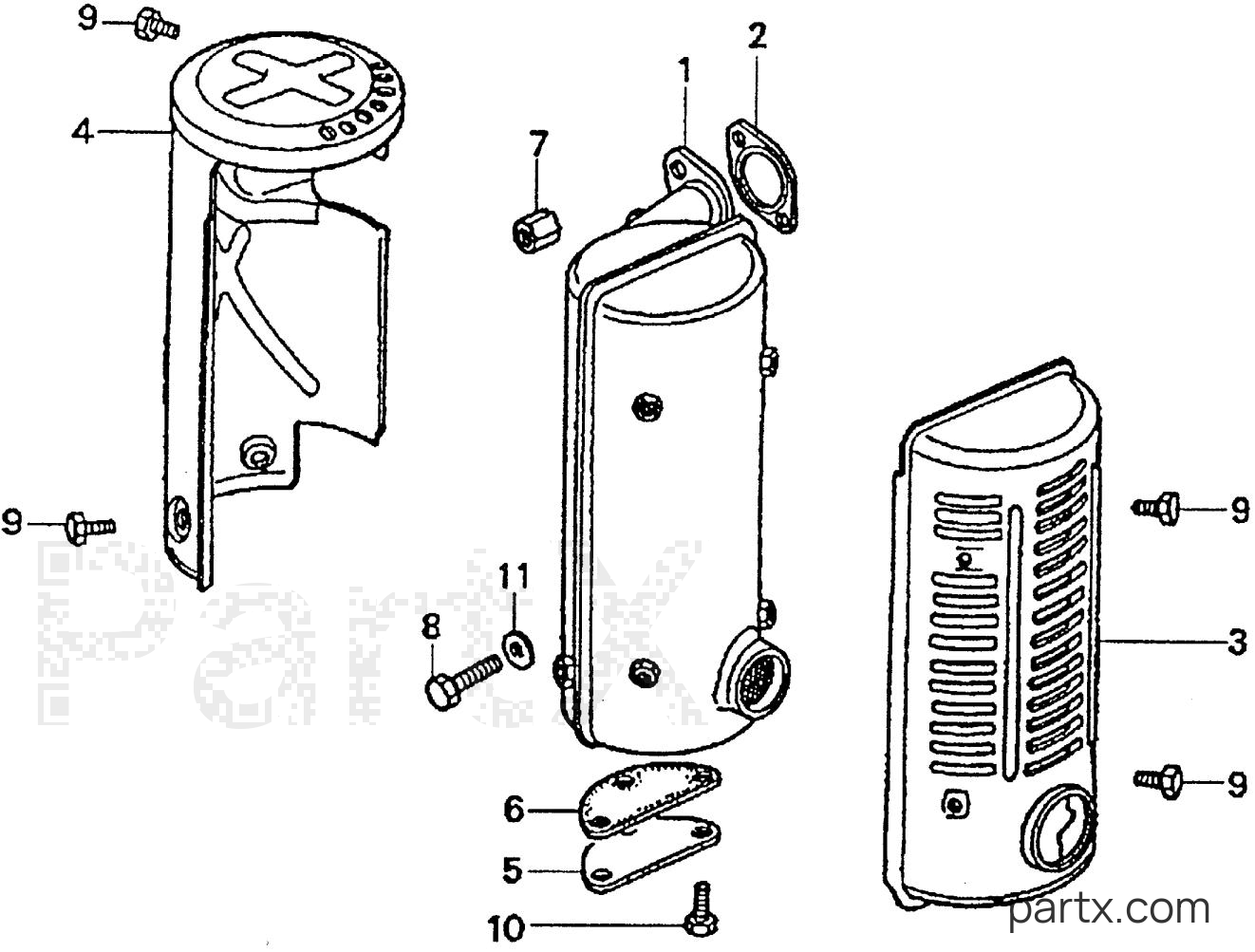

All Years Generator ES - ES3500 A MUFFLER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Honda ES3500 A - MUFFLER
Change View:
001
Required: 1
MUFFLER
N
Price unavailable
001
Required: 1
MUFFLER (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
GASKET, MUFFLER (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
PROTECTOR, MUFFLER (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
COVER, RR. MUFFLER (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
LID, MUFFLER (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
GASKET, MUFFLER (NOT AVAILABLE)
N
Price unavailable
007
Required: 2
NUT, HEX. (6MM) (NOT AVAILABLE)
N
Price unavailable
BOLT, HEX. (8X18)
008
Honda
BOLT, HEX. (8X18)92101-08018-0A
Required: 1
BOLT, HEX. (8X18)
N
Cross Ship
Leaves in 2-5 days
$1.96
$1.67
You save $0.29
More details
009
Required: 6
BOLT, HEX. (6X6)
N
Price unavailable
BOLT, HEX. (6X12)
010
Honda
BOLT, HEX. (6X12)93101-06012-0B
Required: 3
BOLT, HEX. (6X12)
N
Cross Ship
Leaves in 2-5 days
$2.24
$1.90
You save $0.34
More details
WASHER, PLAIN (8MM)
011
Honda
WASHER, PLAIN (8MM)94101-08000
Required: 1
WASHER, PLAIN (8MM)
N
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
