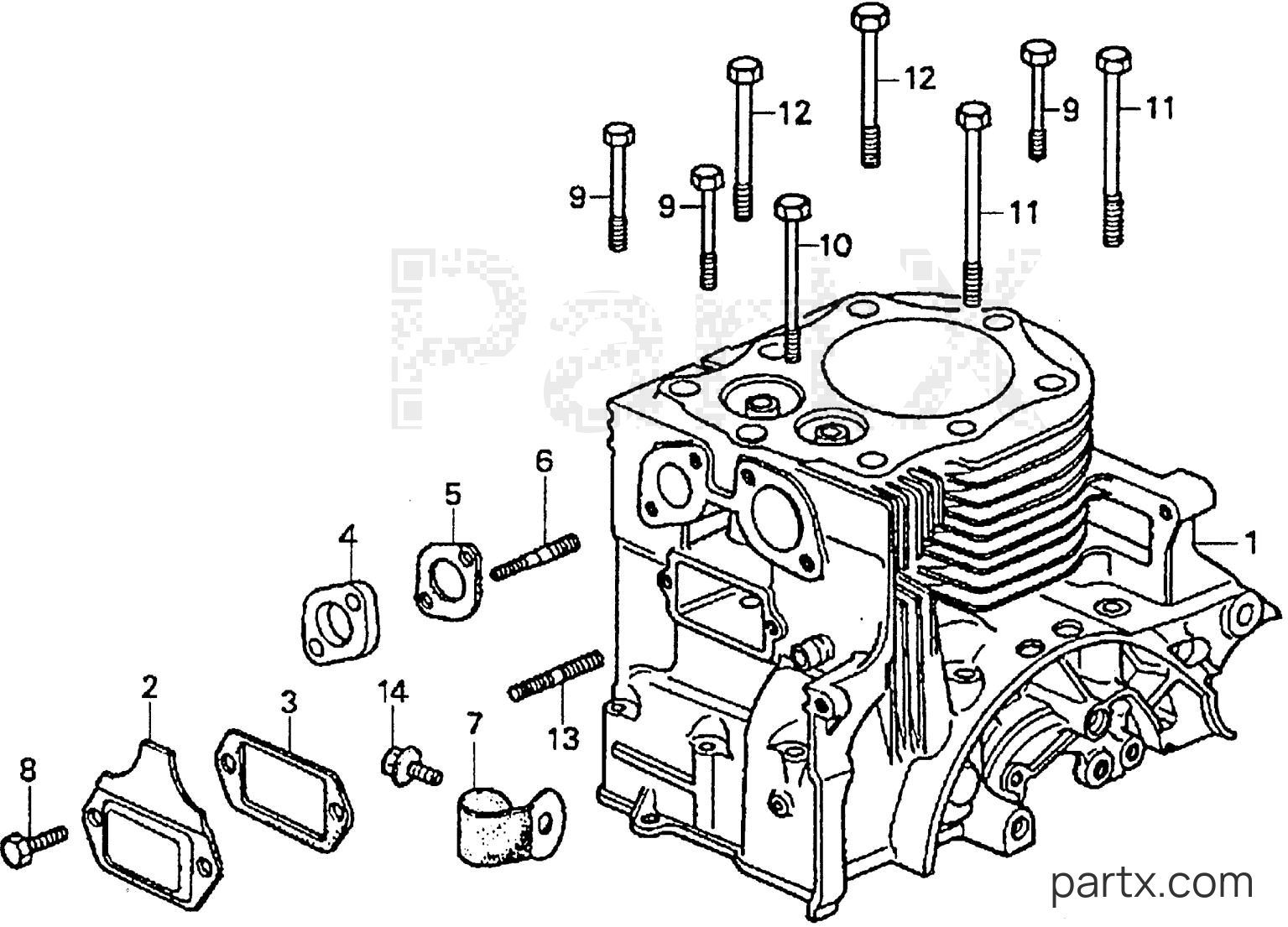

Honda ES3500 A - CYLINDER
Change View:
001
Required: 1
CYLINDER (NOT AVAILABLE)
N
Price unavailable
002
Required: 1
COVER, TAPPET (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
GASKET, TAPPET COVER (NOT AVAILABLE)
N
Price unavailable
INSULATOR, CARB
004
Honda
INSULATOR, CARB16211-823-303
Required: 1
INSULATOR, CARBURETOR
N
Cross Ship
Leaves in 2-5 days
$16.24
$13.80
You save $2.44
More details
005
Required: 1
GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)
N
Price unavailable
BOLT, STUD (8X39)
006
Honda
BOLT, STUD (8X39)90062-822-701
Required: 2
BOLT, STUD (8X39)
N
Cross Ship
Leaves in 2-5 days
$2.82
$2.40
You save $0.42
More details
007
Required: 1
CLAMP, CORD (NOT AVAILABLE)
N
Price unavailable
BOLT, HEX. (6X12)
008
Honda
BOLT, HEX. (6X12)92101-06012-0A
Required: 2
BOLT, HEX. (6X12)
N
Cross Ship
Leaves in 2-5 days
$1.72
$1.46
You save $0.26
More details
009
Required: 3
BOLT, HEX. (6X63)
N
Price unavailable
010
Required: 1
BOLT, HEX. (6X90)
N
Price unavailable
011
Required: 2
BOLT, HEX. (8X100)
N
Price unavailable
012
Required: 2
BOLT, HEX. (8X80) (NOT AVAILABLE)
N
Price unavailable
BOLT, STUD (6X32)
013
Honda
BOLT, STUD (6X32)92700-06032-0B
Required: 2
BOLT, STUD (6X32)
N
Cross Ship
Leaves in 2-5 days
$2.16
$1.84
You save $0.32
More details
014
Required: 1
BOLT-WASHER (8X12)
N
Price unavailable
