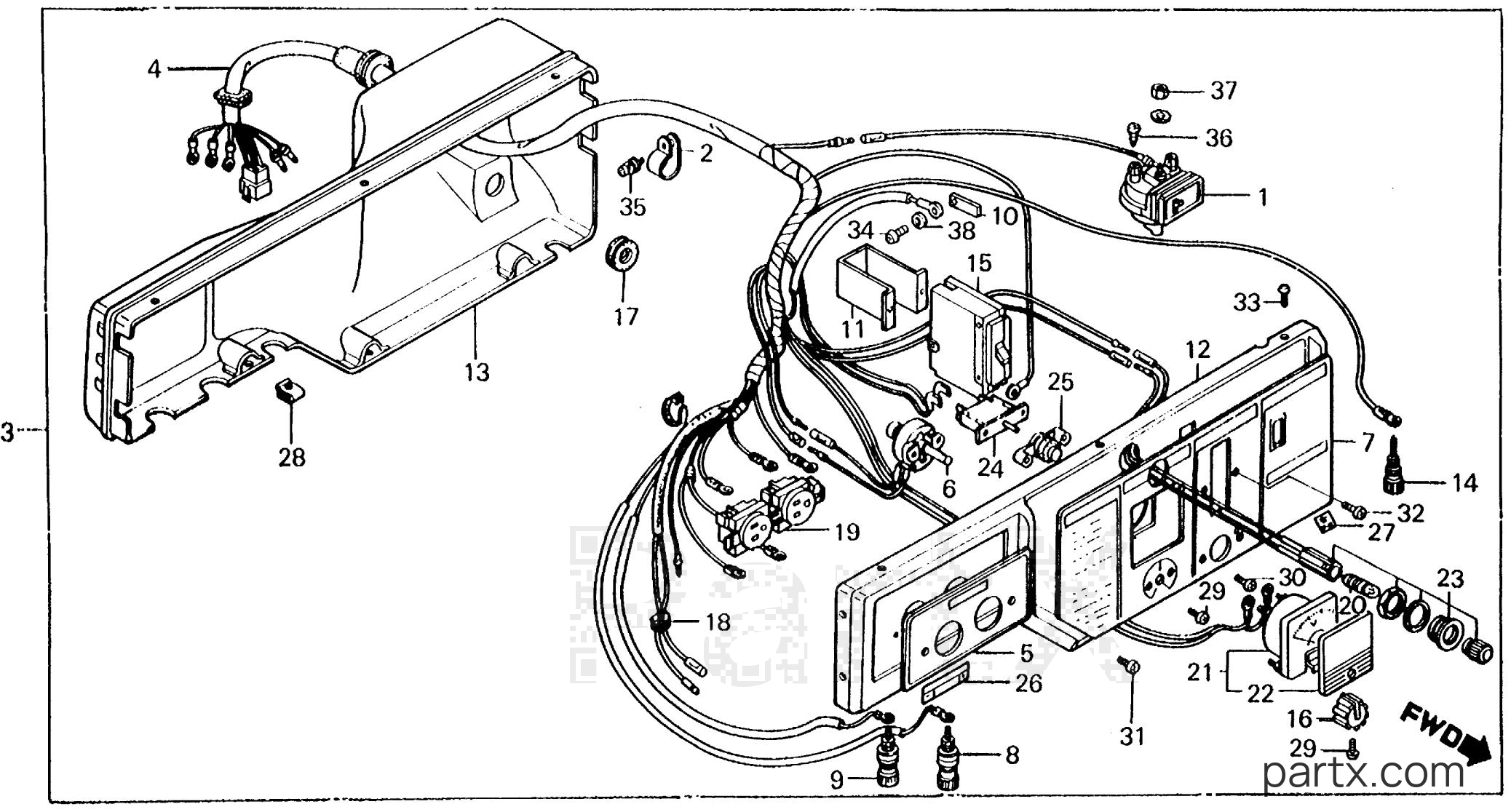

All Years Generator EM - EM1800 A EM1800 CONTROL BOX diagram
001
Honda
SW, OIL ALERT UNIT15520-898-003
Required: 1
SWITCH ASSY., OIL ALERT UNIT
N
$90.52
You save $15.98
002
Required: 1
CLAMP, CABLE (NOT AVAILABLE)
N
Price unavailable
003
Required: 1
BOX ASSY., CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
WIRE HARNESS ASSY. (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
MARK, A.C. OUTPUT (NOT AVAILABLE)
N
Price unavailable
006
Required: 1
RESISTOR, VARIABLE (NOT AVAILABLE)
N
Price unavailable
007
Required: 1
MARK, SWITCH PANEL (NOT AVAILABLE)
N
Price unavailable
008
Honda
TERMINAL31408-880-000
Required: 1
TERMINAL, D.C. OUTPUT (+)
N
$38.74
You save $6.84
009
Honda
TERMINAL31409-880-000
Required: 1
TERMINAL, D.C. OUTPUT (-)
N
$38.74
You save $6.84
010
Honda
TERMINAL, BREAKER31414-880-000
Required: 1
TERMINAL, BREAKER
N
$15.62
You save $2.76
011
Required: 1
SUPPORT, BREAKER (NOT AVAILABLE)
N
Price unavailable
012
Required: 1
PANEL, CONTROL *R8*(BRIGHT RED) (NOT AVAILABLE)
N
Price unavailable
013
Required: 1
CASE, CONTROL (NOT AVAILABLE)
N
Price unavailable
014
Required: 1
TERMINAL ASSY., GROUND (NOT AVAILABLE)
N
Price unavailable
015
Required: 1
BREAKER, CIRCUIT (15A) (NOT AVAILABLE)
N
Price unavailable
016
Honda
KNOB, ADJUSTING31461-898-000
Required: 1
KNOB, ADJUSTING
N
$11.83
You save $2.09
017
Honda
GROMMET, UNIT SWITCH31473-898-000
Required: 1
GROMMET, UNIT SWITCH
N
$5.47
You save $0.97
018
Required: 1
GROMMET, SWITCH WIRE (NOT AVAILABLE)
N
Price unavailable
019
Honda
RECPTL (15A/125V)32330-877-000
Required: 1
RECEPTACLE (15A/125V)
N
$67.78
You save $11.96
020
Honda
BULB, DASH (24V-2W)34909-880-000
Required: 1
BULB, DASH (24V-2W)
N
$7.09
You save $1.25
021
Honda
VOLTMETER ASSY.37450-898-000
Required: 1
VOLTMETER ASSY.
N
$195.77
You save $34.55
022
Required: 1
LENS, METER (NOT AVAILABLE)
N
Price unavailable
023
Honda
SOCKET, PILOT LAMP37560-ZA0-003
Required: 1
SOCKET ASSY., PILOT LAMP
N
$30.02
You save $5.30
024
Honda
PROTECTOR, CIRCUIT38240-898-000
Required: 1
PROTECTOR, CIRCUIT (D.C.)
N
$30.58
You save $5.40
025
Honda
LENS, PROTECTOR38250-898-000
Required: 1
LENS ASSY., PROTECTOR
N
$20.32
You save $3.59
026
Required: 1
MARK, D.C. OUTPUT (NOT AVAILABLE)
N
Price unavailable
027
Honda
MARK, GROUND87534-892-640
Required: 1
MARK, GROUND
N
$2.04
You save $0.36
028
Honda
NUT, SPRING (5MM)90320-692-000
Required: 6
NUT, SPRING (5MM)
N
$7.43
You save $1.31
029
Required: 3
SCREW, PAN (3X6)
N
Price unavailable
030
Required: 2
SCREW, PAN (3X12)
N
Price unavailable
031
Honda
SCREW, PAN (4X6)93500-04006-0A
Required: 2
SCREW, PAN (4X6)
N
$0.85
You save $0.15
032
Honda
SCREW, PAN (4X6)93500-04006-0G
Required: 2
SCREW, PAN (4X6)
N
$0.85
You save $0.15
033
Honda
SCREW, PAN (5X10)93500-05010-0A
Required: 6
SCREW, PAN (5X10)
N
$0.94
You save $0.17
034
Honda
SCREW, PAN (5X12)93500-05012-3J
Required: 1
SCREW, PAN (5X12)
N
$1.05
You save $0.19
035
Honda
SCREW-WASHER (4X16)93893-04016-00
Required: 1
SCREW-WASHER (4X16)
N
$1.43
You save $0.25
036
Honda
SCREW, TAP (5X10)93901-15120
Required: 2
SCREW, TAPPING (5X10)
N
$0.68
You save $0.12
037
Honda
NUT, HEX. (5MM)94001-05390-0S
Required: 1
NUT, HEX. (5MM)
N
$1.12
You save $0.20
038
Honda
WASHER, SPRING (5MM)94111-05800
Required: 1
WASHER, SPRING (5MM)
N
$1.17
You save $0.21
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
