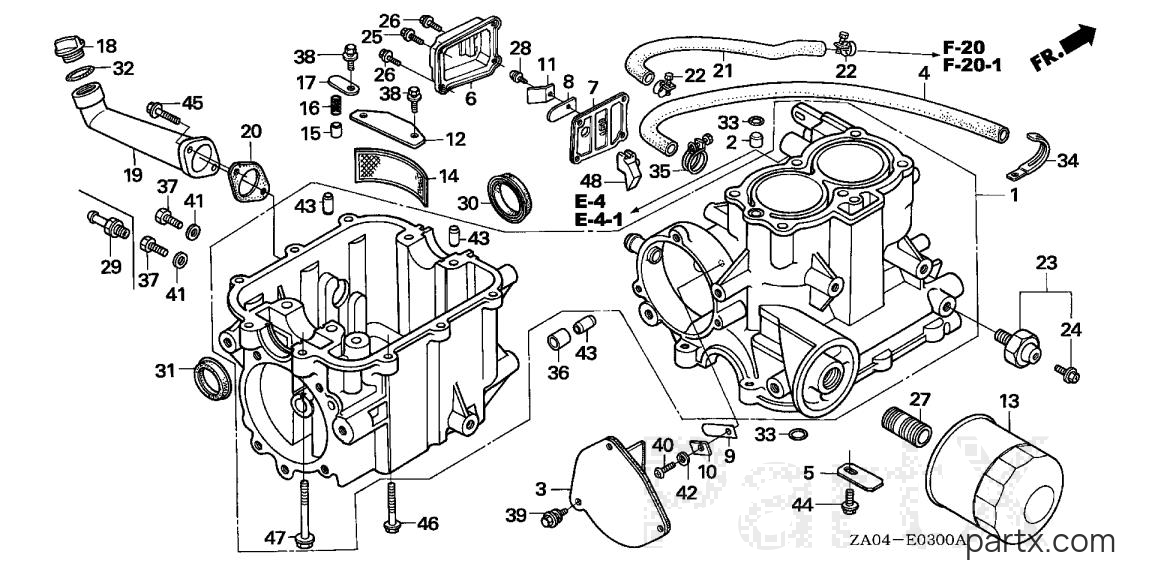

All Years Generator ES - ES6500 A CYLINDER diagram
001
Required: 1
CYLINDER ASSY.
N
Price unavailable
002
Honda
ORIFICE, OIL CONTROL12125-ZA0-010
Required: 1
ORIFICE, OIL CONTROL
N
$2.75
You save $0.49
003
Required: 1
COVER ASSY., BREATHER (NOT AVAILABLE)
N
Price unavailable
004
Required: 1
TUBE, BREATHER (NOT AVAILABLE)
N
Price unavailable
005
Required: 1
COVER, BREATHER RETURN (NOT AVAILABLE)
N
Price unavailable
009
Honda
PLATE, VALVE12372-848-320
Required: 1
PLATE, VALVE
N
$2.58
You save $0.46
010
Honda
STOPPER, VALVE12373-848-010
Required: 1
STOPPER, VALVE
N
$3.01
You save $0.53
012
Honda
PLATE, OIL FILTER15334-ZA0-000
Required: 1
PLATE, OIL FILTER
N
$8.60
You save $1.52
013
Required: 1
FILTER, OIL (TOYO ROKI)
N
Price unavailable
013
Honda
FILTER, OIL15400-ZZ3-003
Required: 1
FILTER, OIL (DENSO)
N
In stock
Only 3 remaining
$17.52
You save $4.38
014
Honda
SCREEN, OIL FILTER15421-ZA0-000
Required: 1
SCREEN, OIL FILTER
N
$14.74
You save $2.60
015
Honda
VALVE, CHECK15473-ZA0-000
Required: 1
VALVE, CHECK
N
$9.03
You save $1.59
016
Honda
SPRING, CHECK VALVE15474-881-000
Required: 1
SPRING, CHECK VALVE
N
$4.90
You save $0.86
017
Honda
PLATE, CHECK VALVE15475-ZA0-000
Required: 1
PLATE, CHECK VALVE
N
$4.00
You save $0.71
018
Honda
CAP, OIL15611-921-000
Required: 1
CAP, OIL (YELLOW)
N
$11.46
You save $2.02
019
Honda
PIPE, OIL FILLER15632-ZA0-000
Required: 1
PIPE, OIL FILLER (NOT AVAILABLE)
N
$46.34
You save $8.18
020
Honda
GASKET, OIL PIPE15635-ZA0-800
Required: 1
GASKET, OIL PIPE
N
$3.49
You save $0.62
023
Honda
SWITCH, OIL PRESSURE37240-ZA0-013
Required: 1
SWITCH, OIL PRESSURE
N
$37.91
You save $6.69
024
Honda
BOLT-WASHER (4X8)90002-PA6-003
Required: 1
BOLT-WASHER (4X8) (DENSO)
N
$6.07
You save $1.07
027
Honda
HOLDER, OIL FILTER90015-590-000
Required: 1
HOLDER, OIL FILTER
N
$16.42
You save $2.90
030
Honda
OIL SEAL (33X48X7)91201-ZA0-003
Required: 1
OIL SEAL (33X48X7)
N
$12.70
You save $2.24
031
Honda
OIL SEAL (30X44X7)91205-ZA0-003
Required: 1
OIL SEAL (30X44X7)
N
$11.00
You save $1.94
032
Honda
O-RING (26X2.7)91301-805-000
Required: 1
O-RING (26X2.7)
N
$4.13
You save $0.73
033
Honda
O-RING (10.8X2.4)15142-PH3-003
Required: 2
O-RING (10.8X2.4) (ARAI)
N
$3.01
You save $0.75
035
Honda
CLIP A18, TUBE91410-ZA0-010
Required: 1
CLIP A18, TUBE
N
$2.74
You save $0.48
036
Required: 2
SPACER, ENGINE MOUNTING (NOT AVAILABLE)
N
Price unavailable
037
Honda
BOLT, DRAIN (12MM)92800-12000
Required: 1
BOLT, DRAIN PLUG (12MM)
N
$4.01
You save $0.71
038
Honda
BOLT-WASHER (6X12)93402-06012-08
Required: 3
BOLT-WASHER (6X12)
N
$1.68
You save $0.30
-50%
039
Honda
BOLT-WASHER (6X16)93402-06016-08
Required: 3
BOLT-WASHER (6X16)
N
In stock
Only 1 remaining
$0.99
You save $0.99
040
Honda
SCREW, PAN (5X10)93500-05010-0H
Required: 1
SCREW, PAN (5X10)
N
$0.94
You save $0.17
041
Honda
WASHER, DRAIN (12MM)94109-12000
Required: 1
WASHER, DRAIN PLUG (12MM)
N
In stock
5+ in stock
$1.27
You save $0.23
042
Honda
WASHER, SPRING (5MM)94111-05000
Required: 1
WASHER, SPRING (5MM)
N
$1.17
You save $0.21
043
Honda
PIN, DOWEL (10X16)94301-10160
Required: 6
PIN, DOWEL (10X16)
N
$2.55
You save $0.45
044
Honda
BOLT, FLANGE (6X12)95701-06012-08
Required: 1
BOLT, FLANGE (6X12)
N
$1.73
You save $0.31
045
Honda
BOLT, FLANGE (6X16)95701-06016-08
Required: 2
BOLT, FLANGE (6X16)
N
$1.55
You save $0.27
046
Honda
BOLT, FLANGE (6X28)95701-06028-08
Required: 8
BOLT, FLANGE (6X28)
N
$2.26
You save $0.40
047
Honda
BOLT, FLANGE (8X55)95701-08055-00
Required: 4
BOLT, FLANGE (8X55)
N
$2.55
You save $0.45
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
