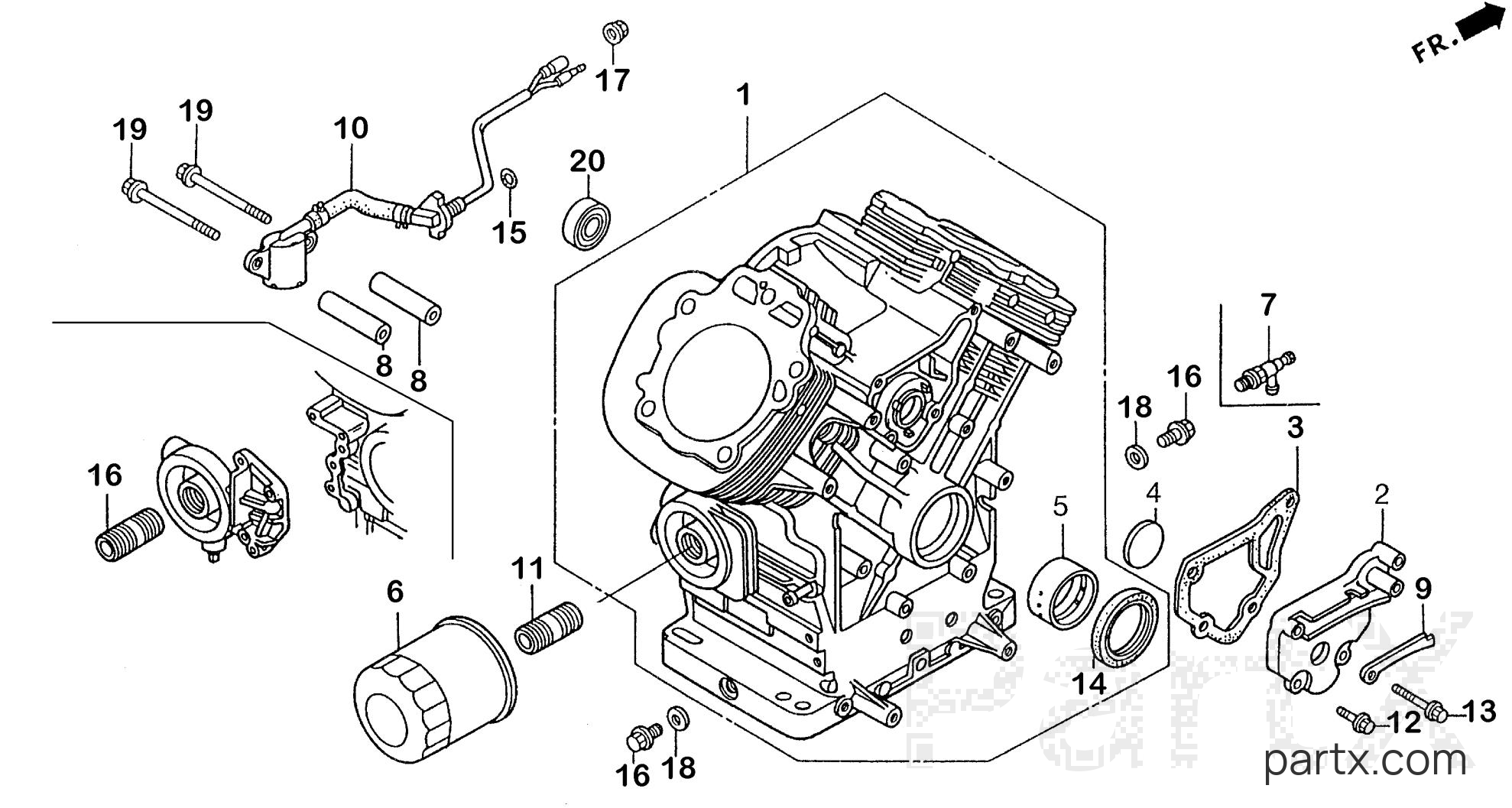

All Years Generator EB - EB11000 A CYLINDER diagram
001
Required: 1
CYLINDER ASSY. (NOT AVAILABLE)
N
Price unavailable
002
Honda
COVER, BREATHER12356-ZJ1-000
Required: 1
COVER, BREATHER
N
$26.64
You save $4.70
003
Honda
GASKET, BTHR CVR12358-ZJ1-000
Required: 1
GASKET, BREATHER COVER
N
$9.71
You save $1.71
004
Honda
VALVE, BREATHER12372-ZE2-300
Required: 1
VALVE, BREATHER
N
$3.20
You save $0.56
005
Honda
BEARING A, MAIN13321-ZJ1-000
Required: 1
BEARING A, MAIN (BLUE) (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)
N
$17.73
You save $3.13
005
Required: 1
BEARING B, MAIN (BLACK) (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)
N
Price unavailable
005
Honda
BEARING C, MAIN13323-ZJ1-000
Required: 1
BEARING C, MAIN (BROWN) (TO SELECT CORRECT BEARING, SEE THE SERVICE MANUAL.)
N
$17.73
You save $3.13
006
Honda
FILTER, OIL15400-P0H-305
Required: 1
FILTER, OIL (FILTECH) (SOLD IN MULTIPLES OF 30)
N
$9.55
You save $1.69
006
Required: 1
FILTER, OIL (TOYO ROKI) (SOLD INDIVIDUALLY)
N
Price unavailable
006
Honda
FILTER, OIL15400-PLM-A02PE
Required: 1
FILTER, OIL (SOLD INDIVIDUALLY)
N
$9.94
You save $2.48
007
Honda
VALVE (14X1.5)15558-ZJ1-010AH
Required: 1
VALVE, DRAIN (14X1.5)
N
$22.24
You save $3.92
008
Honda
COLR, FILTER SETTING25523-VD6-010
Required: 2
COLLAR, FILTER SETTING
N
$7.16
You save $1.26
009
Honda
CLAMP, WIRE31511-ZJ1-000
Required: 1
CLAMP, WIRE
N
$3.52
You save $0.62
010
Required: 1
SWITCH ASSY., OIL LEVEL (NOT AVAILABLE)
N
Price unavailable
011
Honda
HOLDER, OIL FILTER90018-PN3-000
Required: 1
HOLDER, OIL FILTER
N
$7.96
You save $1.40
012
Honda
BOLT (6X16) (CT200)90029-888-000
Required: 2
BOLT, FLANGE (6X16) (CT200)
N
$2.33
You save $0.41
013
Honda
BOLT (6X32) (CT200)90031-ZE1-000
Required: 2
BOLT, FLANGE (6X32) (CT200)
N
$2.99
You save $0.53
014
Honda
OIL SEAL (38X58X11)91201-ZJ1-003
Required: 1
OIL SEAL (38X58X11)
N
$11.17
You save $1.97
015
Honda
O-RING (13.5X1.5)91353-671-003
Required: 1
O-RING (13.5X1.5) (ARAI)
N
$2.98
You save $0.52
016
Honda
BOLT, DRAIN (14MM)92800-14000
Required: 2
BOLT, DRAIN PLUG (14MM)
N
$4.56
You save $0.80
017
Honda
NUT, FLANGE (10MM)94050-10000
Required: 1
NUT, FLANGE (10MM)
N
$1.65
You save $0.29
018
Honda
WASHER, DRAIN (14MM)94109-14000
Required: 2
WASHER, DRAIN PLUG (14MM)
N
$0.66
You save $0.12
019
Honda
BOLT, FLANGE (6X75)95701-06075-09
Required: 2
BOLT, FLANGE (6X75)
N
$1.92
You save $0.34
020
Honda
BEARING (6003)96140-60030-10
Required: 1
BEARING, RADIAL BALL (6003) (NOT AVAILABLE)
N
$17.05
You save $3.01
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
